451-10-216-00-003100 datasheet, PDF

Datasheet> All Categories > The connector> socket> 451-10-216-00-003100

451-10-216-00-003100: DescriptionIC Socket, DIP16, 16 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size214KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

451-10-216-00-003100 Overview

IC Socket, DIP16, 16 Contact(s), ROHS COMPLIANT

451-10-216-00-003100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SOCKET HEADER
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP16
JESD-609 code	e4
Number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

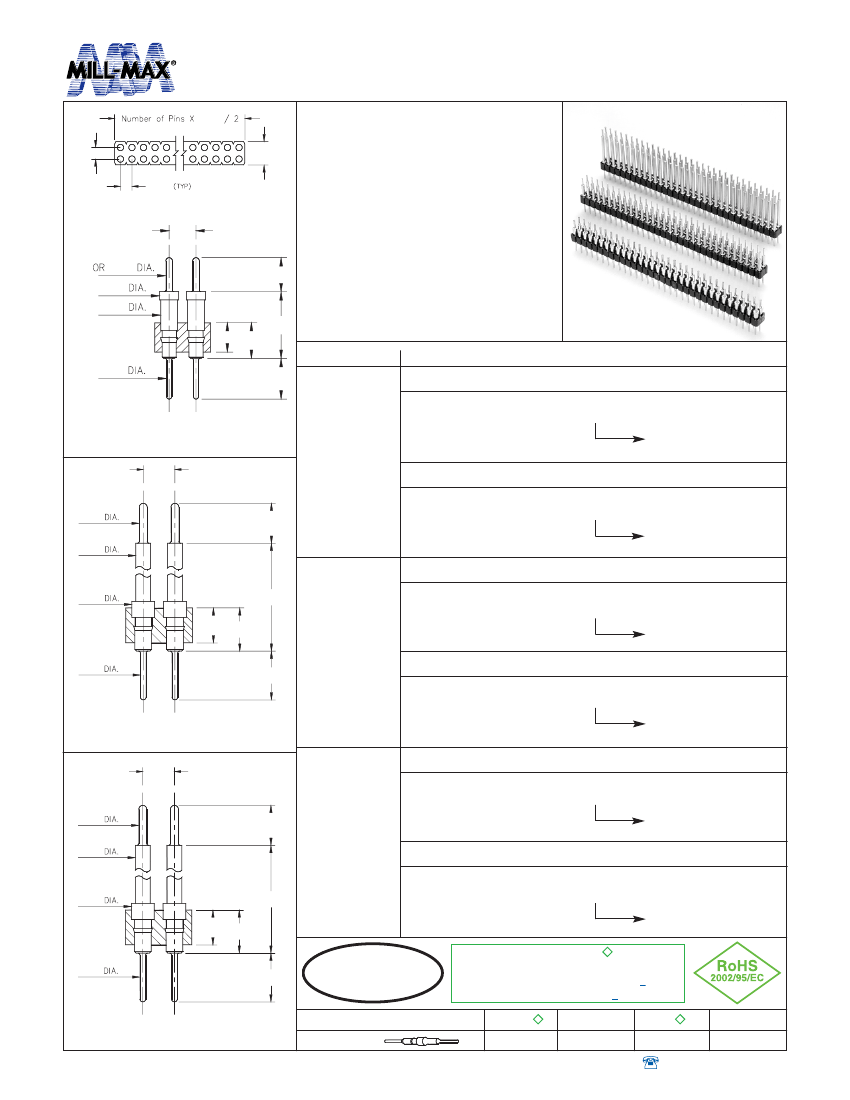

HEADER STRIPS

Interconnect

Double Row

2,54

5,08

Series 451

2,54

0,64

0,46

1,83

1,6

3,2

6,4

2,79 3,4

0,46

•

Series 451 Interconnect Header

Strips come in three lengths with

0,46 dia. pluggable solder tails at

one end and 0,64 dia. pins at the

other. (M-M# 5503, 5504 or 5505

see page 172 for details).

•

0,46 pluggable solder tails are

available at both ends, please

see series:

451...009

451...010

451...011

(using M-M# 5509, 5510, 5511

pins respectively. See pages 170

& 172 for details).

Ordering Information

3,91

Series 451...003

Specify # of pins

Series 451...009

Specify # of pins

Series 451...004

0,46 / 0,64 Solder Tails

02-64

0,46 / 0,46 Solder Tails

02-64

0,46 / 0,64 Solder Tails

451-XX-2_ _-00-003000

Fig. 1

2,54

Fig. 1

0,64

1,19

451-XX-2_ _-00-009000

3,2

1,83

2,79

3,45

8,4

451-XX-2_ _-00-004000

Specify # of pins

02-64

Fig. 2

0,46

3,91

Series 451...010

Specify # of pins

Series 451...005

Specify # of pins

Series 451...011

Specify # of pins

0,46 / 0,46 Solder Tails

02-64

0,46 / 0,64 Solder Tails

02-64

0,46 / 0,46 Solder Tails

02-64

451-XX-2_ _-00-010000

Fig. 2

2,54

451-XX-2_ _-00-005000

0,64

1,19

3,2

Fig. 3

1,83

2,79

3,45

15,39

451-XX-2_ _-00-011000

0,46

3,91

XX=Plating Code

See Below

For RoHS compliance, select



plating code.

For the gold option (XX=10) also change part

number from 451-XX-2XX-00-0XX000

to 451-10-2XX-00-0XX100



0,25µm Au

5,08µm Sn/Pb



5,08µm Sn

Fig. 3

SPECIFY PLATING CODE XX=

Pin Plating

w w w. m i l l - m a x . c o m



516-922-6000
