BS1016EM1-12: DescriptionTerminal Block Tools u0026 Accessories Marking Plate, 15mm Pitch Marked 1 - 12; CategoryThe connector; File Size194KB，1 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric Compare View All

BS1016EM1-12 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BS1016EM1-12	-	-	View	Buy Now

BS1016EM1-12 Overview

Terminal Block Tools u0026 Accessories Marking Plate, 15mm Pitch Marked 1 - 12

BS1016EM1-12 Parametric

Parameter Name	Attribute value
Product Category	Terminal Block Tools & Accessories
Manufacturer	Altech
Product	Tools & Accessories
Type	Marking Plates
Factory Pack Quantity	25

Preview

Download Datasheet

View All

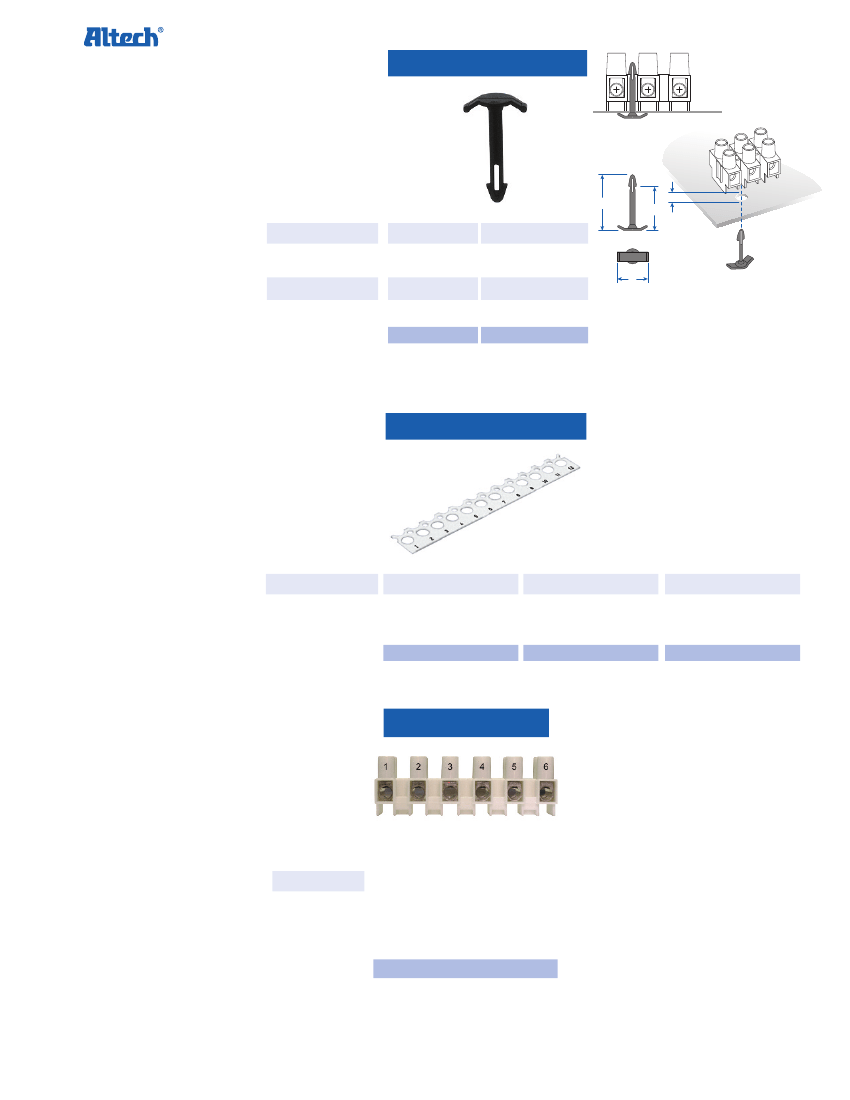

Eurostrips

®

Accessories

Convenient options that facilitate

installation and wire termination.

Mounting Pins

Speed panel mounting of

Eurostrips with Mounting

Pins. Simply match drill clear-

ance hole in panel, position

Eurostrip and install Mounting

Pin through hole and into

mounting hole in Eurostrip

housing. Once pin passes

beyond Eurostrip housing, it

automatically expands, secur-

ing housing to panel. Use two

or more mounting pins per

Eurostrip.

• Material: polycarbonate

• Color: gray.

MOUNTING PINS

H

Ø

IL

Mounting Pins

Eurostrip

Panel Thickness

Ordering Information

H4

HE4HN

0.5-1.5 mm

Cat. No.

H4

Std. Pk.

50

H6

HE6H

W

0.8-1.8 mm

Cat. No.

H6

Std. Pk.

50

Dimensions mm (in.)

Mounting

Insertion

Panel Width

Pin Type Height (H) Length (IL) Hole Dia. (W)

21

12.6

4.2

8.5

H4

H6

24

14.7

5.2

11

Marking Plates

Install Marking Plate MP

under or on top of Eurostrip

housing to identify individual

pole positions to increase

wiring efficiency, save instal-

lation time and facilitate wire

hook-up, system modification

and trouble shooting. Select

blank marking plate for hand

marking or imprinted.

• Material: self-extinguishing

PVC

• Color: white with black

imprint.

MARKING PLATES

Eurostrip

Ordering Information

Cat. No.

BS24E

HE4, HE4HN

Desc.

Blank

Std. Pk

25

HE6, HE6H

Cat. No.

BS60E

Desc.

Blank

Std. Pk.

25

HE10, HE10H, HE16, HE16H

Cat. No.

BS1016E

Desc.

Blank

Std. Pk.

25

BS24EM1-12

BS24EM13-24

No. 1-12 25

No. 13-24 25

BS60EM1-12 No. 1-12 25

BS60EM13-24 No. 13-24 25

BS1016EM1-12 No. 1-12 25

BS1016EM13-24 No. 13-24 25

Imprinting

Mark individual pole positions

to save installation time and

facilitate wire hook-up, sys-

tem modification and trouble

shooting. Choose turret mark-

ing for optimum identifica-

tion. To order imprinting spec-

ify consecutive, identical or

custom character imprints.

• Imprints: rub-resistant,

black ink.

• Set up fee applies

• 1000 piece minimum

Imprint

Marking

Instruction

Ordering Example

IMPRINTING

Turret Location

Consecutive, imprint 1 through 12,

Turret Location

Cat. No.

HE4WPR/12i1-12

Std. Pk.

1000

Altech Corp.

®

• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

85

BS1016EM1-12 Related Products

	BS1016EM1-12	BS60EM13-24	BS1016EM13-24	BS1016E	34902063	BS24EM13-24
Description	Terminal Block Tools u0026 Accessories Marking Plate, 15mm Pitch Marked 1 - 12	Terminal Block Tools u0026 Accessories Marking Plate, 12mm Pitch Marked 13 - 24	Terminal Block Tools u0026 Accessories Marking Plate, 15mm Pitch Marked 13 - 24	Terminal Block Tools u0026 Accessories Marking Plate, 15mm Pitch	Printers Fixture for VP500 Plotter	Terminal Block Tools u0026 Accessories Marking Plate, 10mm Pitch Marked 13 - 24
Product Category	Terminal Block Tools & Accessories	Terminal Block Tools & Accessories	Terminal Block Tools & Accessories	Terminal Block Tools & Accessories	Printers	Terminal Block Tools & Accessories
Manufacturer	Altech	Altech	Altech	Altech	Altech	Altech
Product	Tools & Accessories	Tools & Accessories	Tools & Accessories	Tools & Accessories	Accessories	Tools & Accessories
Type	Marking Plates	Marking Plates	Marking Plates	Marking Plates	Fixture	Marking Plates
Factory Pack Quantity	25	25	25	25	1	25

Recommended Resources

Control circuit for low-speed operation when the motor windings are connected in a delta shape

STR51213 internal circuit diagram

On-site signal optical fiber transmission and reception circuit

Voice-activated switch with self-locking function

Commonly used audio circuits for color TVs: TA8218AH
