319-044
EMI/RFI Shield Sock Shrink Boot Adapter
with Optional Shrink Boot
Standard Profile - Self Locking - Rotatable Coupling
319 F J 044 M 16 06-6-4 T
319
CONNECTOR
DESIGNATORS
Product Series
Connector
Designator
Angle and Profile
J = 90°
H = 45°
S = Straight
Basic Part No.
Shrink Boot (Table IV - Omit for None)
Length: S only
(1/2 inch increments:
e.g. 4 = 2 inches)
Shield Length (1 inch increments:
Minimum 6 inches)
Cable Entry (Table IV)
Shell Size (Table I)
A-F-H-L-S
SELF-LOCKING
ROTATABLE
COUPLING
Finish (Table II)
* Length ± .060 (1.52)
Minimum Order Length 1.5 Inch
(See Note 6)
Length ± .060 (1.52)
Min. Order Length 2.0 Inch
(See Note 6)
A Thread
(Table I)
Length *
O-Ring
E Typ.
(Table I)
Cable Entry

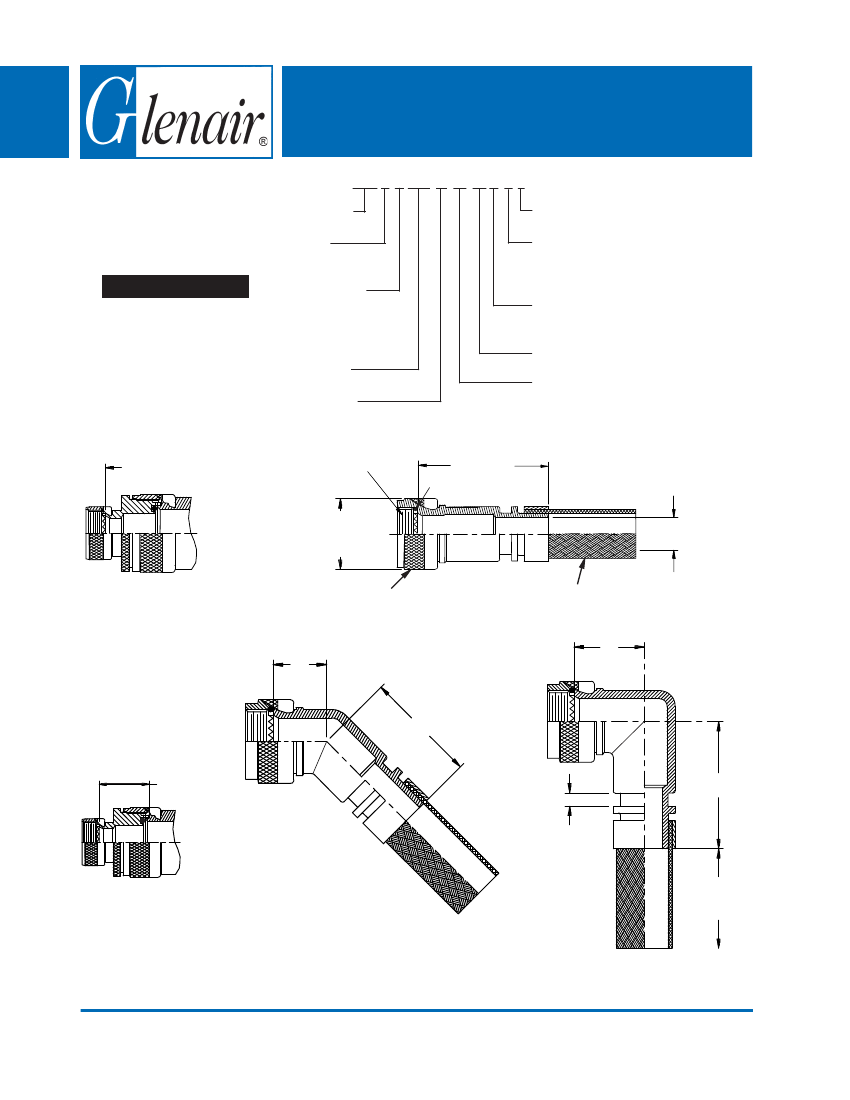

STYLE 2
(STRAIGHT
See Note 5)
Anti-Rotation
Device (Typ.)
Single Layer Shield Typ.
(Tinned Copper)
H
F
(Table
III)
G (Table III)
(Table III)
1.00 (25.4)
Max
.140/.130
(3.6/3.3)
Typ.
J (Table III)
STYLE 2
(45° & 90°
See Note 5)
Shield Length
(Approx.)
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 319 - Page 10
with Optional Shrink Boot
Standard Profile - Self Locking - Rotatable Coupling
See inside back cover fold-out or
pages 13 and 14 for unabridged Tables I and II.
TABLE III: DIMENSIONS
F
Max
.986 (25.0)
1.016 (25.8)
1.038 (26.4)
1.056 (26.8)
1.066 (27.1)
1.106 (28.1)
1.136 (28.9)
1.156 (29.4)
1.186 (30.1)
G
Max
1.045 (26.5)
1.075 (27.3)
1.097 (27.9)
1.125 (28.6)
1.145 (29.1)
1.165 (29.6)
1.195 (30.4)
1.215 (30.9)
1.245 (31.6)
H
Max
1.096 (27.8)
1.166 (29.6)
1.226 (31.1)
1.286 (32.7)
1.346 (34.2)
1.396 (35.5)
1.466 (37.2)
1.516 (38.5)
1.586 (40.3)
J
Max
1.155 (29.3)
1.225 (31.1)
1.285 (32.6)
1.345 (34.2)
1.405 (35.7)
1.455 (37.0)
1.525 (38.7)
1.575 (40.0)
1.645 (41.8)
Shell Size
Conn. Desig.
A-F-L-S H
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
GLENAIR
SYMBOL
B
M
NF
TABLE II: STANDARD FINISHES
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab Over
Electroless Nickel
See Back Cover for Complete Finish Information
and Additional Finish Options
1. Cable Entry is defined as the accomodation range for the wire
bundle or cable. Dimensions shown are not intended for inspec-
tion criteria.
2. See Shrink Boot Reference Information (page 40).
3. Metric dimensions (mm) are indicated in parentheses.
4. O-Ring not supplied with Connector Designator A.
5. When maximum entry (page 21) is exceeded, Style 2 will be
supplied. Dimensions F, G, H & J will not apply. Please
consult factory.
6. Consult factory for shorter lengths on straight backshells.
TABLE IV: CABLE ENTRY/SHRINK BOOT
Shrink
Dash
Cable
Boot
No.
Entry
n/a
01
.188 (4.8)
n/a
02
.250 (6.4)
770-001S103
03
.312 (7.9)
04
770-001S103
.375 (9.5)
770-001S103
05
.438 (11.1)
770-001S104
06
.500 (12.7)
770-001S104
07
.562 (14.3)
08
770-001S104
.625 (15.9)
770-001S105
09
.688 (17.5)
770-001S105
10
.750 (19.1)
770-001S105
11
.812 (20.6)
770-001S106
12
.875 (22.2)
770-001S106
13
.938 (23.8)
770-001S106
14
1.000 (25.4)
15
770-001S107
1.250 (31.8)
770-001S107
16
1.500 (38.1)
n/a
17
1.750 (44.5)
18
n/a
2.000 (50.8)
19
n/a
1.125 (28.6)
20
n/a
1.375 (34.9)
21
n/a
1.625 (41.3)
22
n/a
1.062 (27.0)
23
n/a
1.188 (30.2)
24
n/a
1.875 (47.6)
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 319 - Page 11
