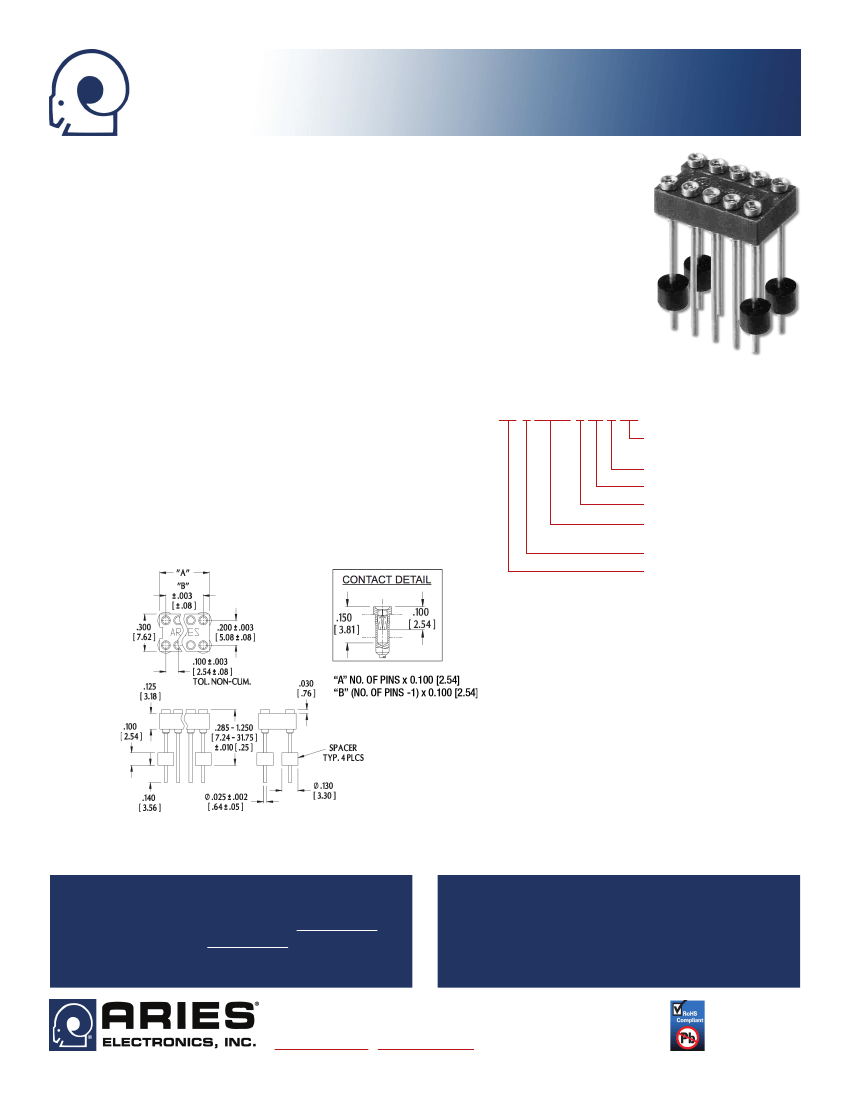

Series 8 Elevator Socket
w/Collet Contacts & Solder Pin Tails
FEATURES
• Ideal for Elevating Devices (Displays, Switches, etc.) to Desired Level with 0.260 to 1.250 [6.60 to 31.75]
Height Extension
GENERAL SPECIFICATIONS
•
STANDARD SOCKET BODY & SPACER: black UL 94V-0 glass-filled 4/6 Nylon
•
PIN BODY: brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05
•
PIN BODY PLATING: 200µ [5.08µ] min. 93/7 Sn/Pb per ASTM B545 –OR– 200µ [5.08µ] min. Sn per ASTM
B545 Type 1 over 100µ [2.54µ] min. Ni per SAE AMS-QQ-N-290B
•
4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM B194-08
•
CONTACT PLATING: 30µ [0.7µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-
290B
•
CONTACT CURRENT RATING: 3 amps
•
OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C]
•
INSERTION FORCE: 180g/pin, based on 0.018 [0.46] dia. test lead
ORDERING INFORMATION
•
WITHDRAWAL FORCE: 90g/pin, based on 0.018 [0.46] dia. test lead
•
NORMAL FORCE: 140g/pin, based on 0.018 [0.46] dia. test lead
XX-8 XXXX-2 10 C XX
•
ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] dia., 0.110-0.150 [2.79-3.81] long
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE: 0.035 ±0.002 [0.89 ±0.05] dia.
Optional Solder Pin Tail Plating
TL = Sn/Pb
Collet Style
Sn-plated Solder Pin Tail
Row-to-Row Spacing
Seating Plane Height
0.285 [7.24] to 1.250 [31.75]
Series
No. of Pins
(6, 8, 10)
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR COLLET CONTACTS ON 0.300 [7.62] CENTERS, SEE DATA SHEET 13008
FOR BIFURCATED CONTACTS, SEE DATA SHEET 13006
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
13007
Rev. 6.1
1 of 1
