351-10-110-00-004000: DescriptionHeaders u0026 Wire Housings 10P PIN STRIP HEADER; CategoryThe connector socket; File Size384KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

351-10-110-00-004000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	351-10-110-00-004000	-	-	View	Buy Now

351-10-110-00-004000 Overview

Headers u0026 Wire Housings 10P PIN STRIP HEADER

351-10-110-00-004000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP10
Shell material	PLASTIC
JESD-609 code	e4
Number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

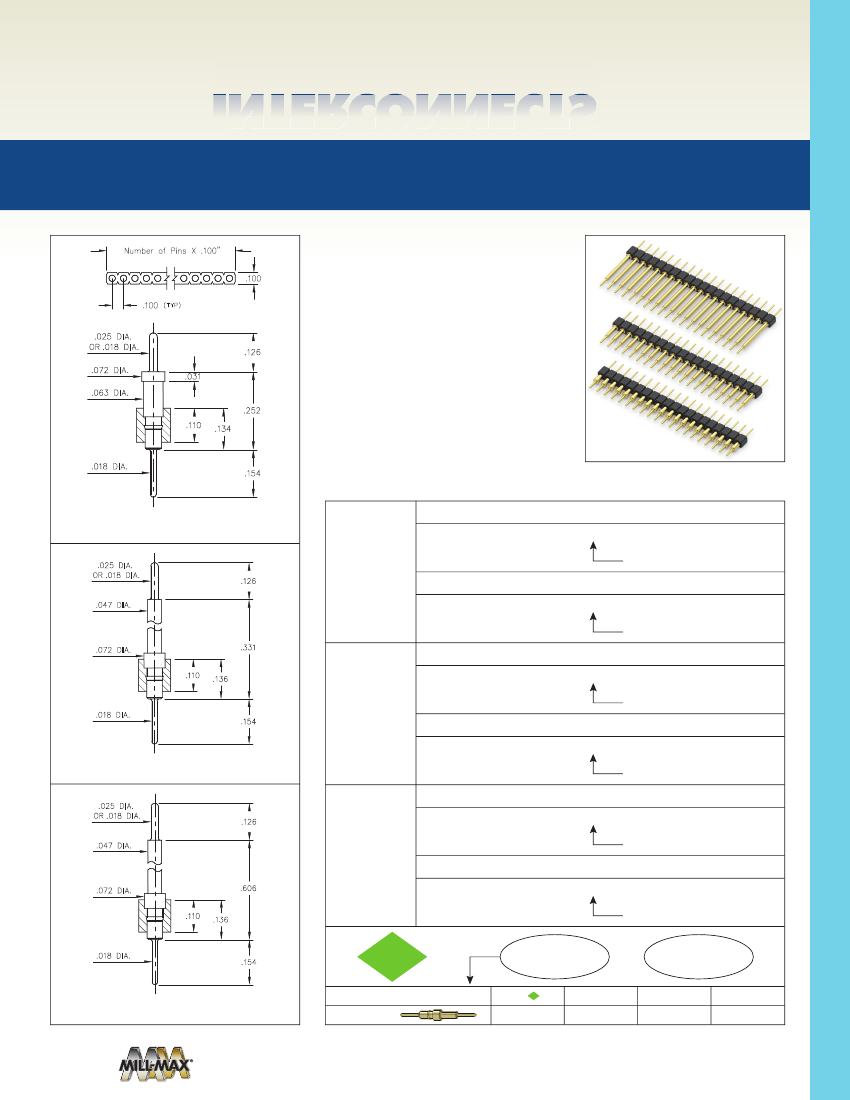

INTERCONNECTS

SERIES 351 • .100” GRID INTERCONNECT HEADERS •

SINGLE ROW STRIPS

•

Series 351 interconnect header strips come in

.025 DIA.

OR .018 DIA.

.072 DIA.

.063 DIA.

three lengths with .018” dia. pluggable solder

tails at one end and .025” dia. pins at the other.

Please see series:

351...003 uses pin #5503

351...004 uses pin #5504

351...005 uses pin #5505

both ends. Please see series:

351...009 uses pin #5509

351...010 uses pin #5510

351...011 uses pin #5511

See pages 212 and 214 for details

.126

.031

•

.018” pluggable solder tails are available at

.252

.110

.134

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

.154

.018 DIA.

ORDERING INFORMATION

Series 351...003

Specify number of pins

FIG. 1

.025 DIA.

OR .018 DIA.

.126

.018” / .025” Dia. Solder Tails

351 10 1_ _ 00 003000

01-64

FIG. 1

Series 351...009

Specify number of pins

.018” / .018” Dia. Solder Tails

351 10 1_ _ 00 009000

01-64

.047 DIA.

.072 DIA.

.110

.331

Series 351...004

Specify number of pins

.018” / .025” Dia. Solder Tails

351 10 1_ _ 00 004000

01-64

.136

.018 DIA.

.154

FIG. 2

Series 351...010

Specify number of pins

.018” / .018” Dia. Solder Tails

351 10 1_ _ 00 010000

01-64

FIG. 2

.025 DIA.

OR .018 DIA.

.126

Series 351...005

Specify number of pins

.018” / .025” Dia. Solder Tails

351 10 1_ _ 00 005000

PAGE 79 | INTERCONNECTS

01-64

.047 DIA.

FIG. 3

.606

.110

Series 351...011

Specify number of pins

.018” / .018” Dia. Solder Tails

351 10 1_ _ 00 011000

01-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.072 DIA.

.136

.018 DIA.

.154

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

µ”

FIG. 3

SPECIFY PLATING CODE XX=

Pin Plating

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
