503566-1100

Description
Fixed Inductors 1008 2.2uH 20% 2.8A RDC=0.084ohms
CategoryThe connector
File Size30KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

503566-1100 Online Shopping

Suppliers Part Number Price MOQ In stock
503566-1100 - - View Buy Now

503566-1100 Overview

Fixed Inductors 1008 2.2uH 20% 2.8A RDC=0.084ohms

503566-1100 Parametric

Parameter NameAttribute value
Product CategoryFFC & FPC Connectors
ManufacturerMolex
RoHSDetails
ProductBoard Mount
Number of Positions11 Position
Pitch0.3 mm
Termination StyleSMD
Mounting AngleRight Angle
Contact LocationBottom Contact
Contact PlatingGold
Current Rating200 mA
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 85 C
PackagingCut Tape
PackagingMouseReel
PackagingReel
Contact MaterialPhosphor Bronze
Flammability RatingUL 94 V-0
Housing MaterialLiquid Crystal Polymer (LCP)
Mounting StyleSMD/SMT
Factory Pack Quantity3000
Voltage Rating50 V
Unit Weight0.000711 oz
This document was generated on 10/23/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
5035661100
Active
FFC-FPC (SMT)
0.30mm Pitch FPC Easy-On Housing Assembly, 11 Circuits, Mated Height 0.95mm
Documents:
3D Model
Drawing (PDF)
Product Specification PS-503566-001-001 (PDF)
Agency Certification
UL
General
Product Family
Series
Overview
Product Name
UPC
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Flammability
Mated Height
Material - Metal
Material - Plating Mating
Material - Resin
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Product Specification
Sales Drawing
Application Specification AS-503566-001-001 (PDF)
Packaging Specification SPK-503566-001-001 (PDF)
RoHS Certificate of Compliance (PDF)

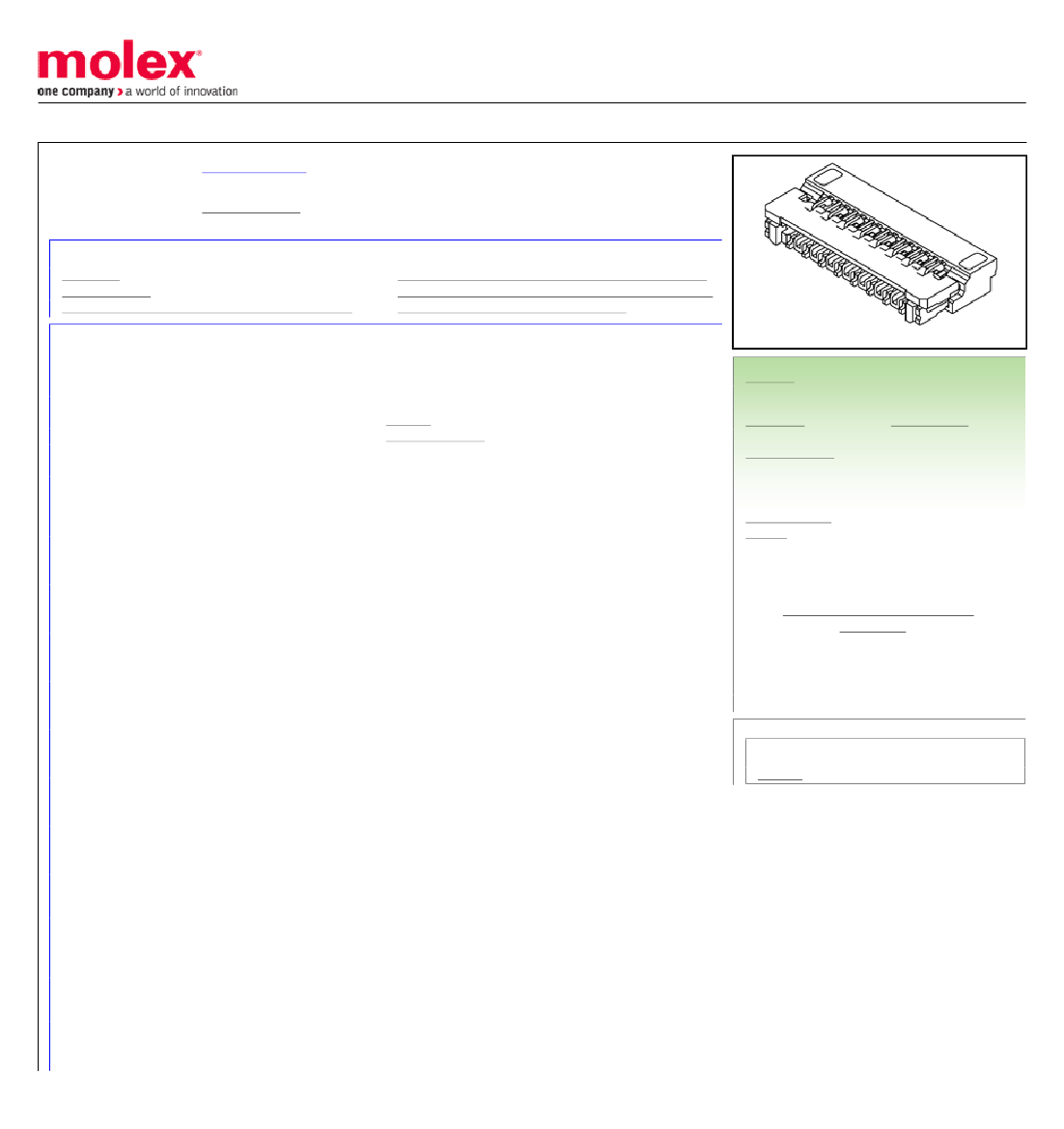

Series image - Reference only
E29179
FFC/FPC Connectors
503566
FFC-FPC (SMT)
Easy-On
884982156821
11
11
Natural
Bottom
10
Side Entry
94V-0
0.95mm
Phosphor Bronze
Gold over Nickel
Polyester Alloy
20.154/mg
1
Right Angle
No
None
Embossed Tape on Reel
0.30mm
Yes
No
Yes
-40°C to +105°C
Surface Mount
FPC only
0.2A
50V
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
503566 Series
AS-503566-001-001
SPK-503566-001-001
PS-503566-001-001
SD-503566-001, SD-503566-002
