532430-5 datasheet, PDF - EEWORLD Datasheet

532430-5: DescriptionHDI PIN ASSY 2 ROW 60 POS; CategoryThe connector The connector; File Size203KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

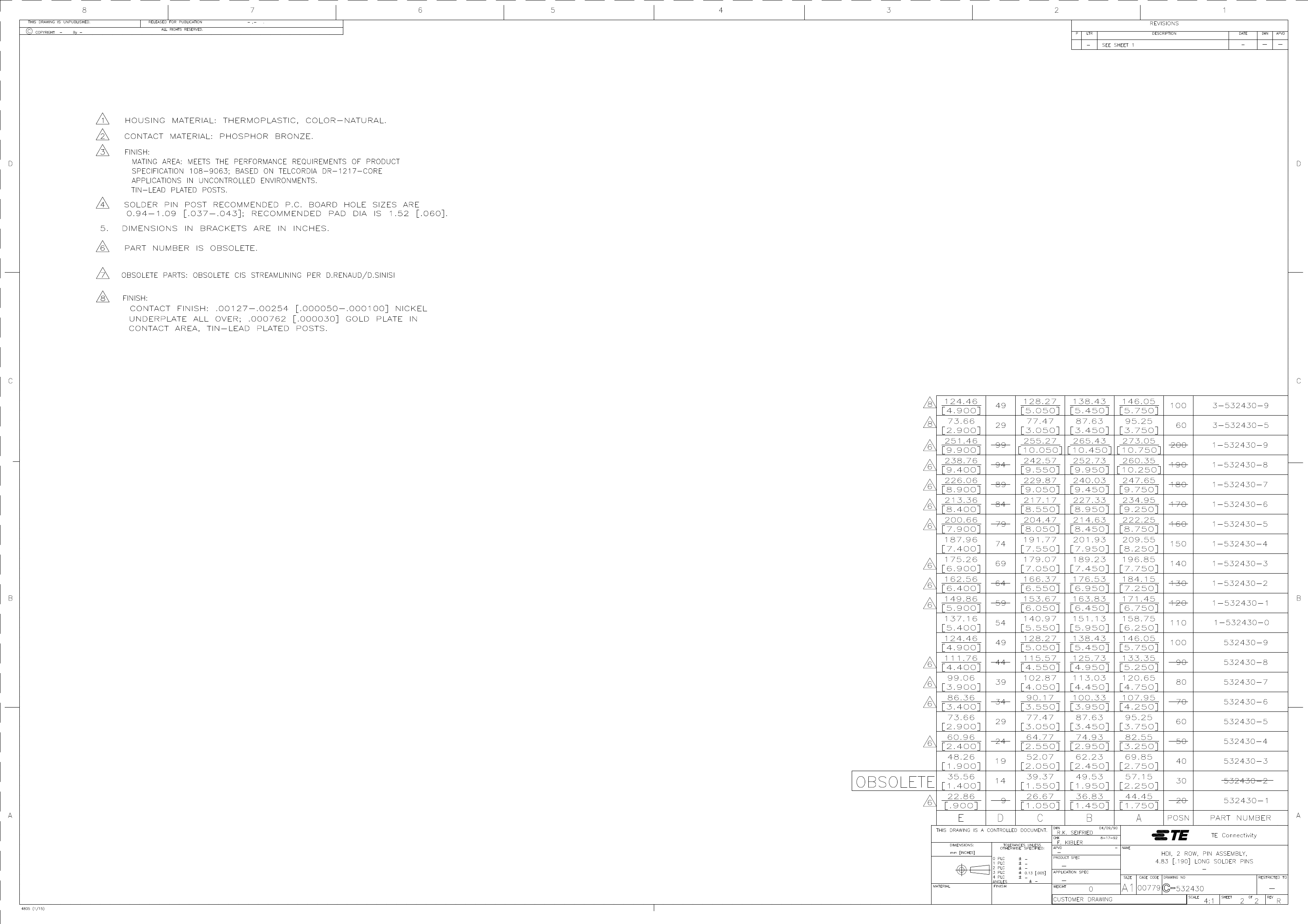

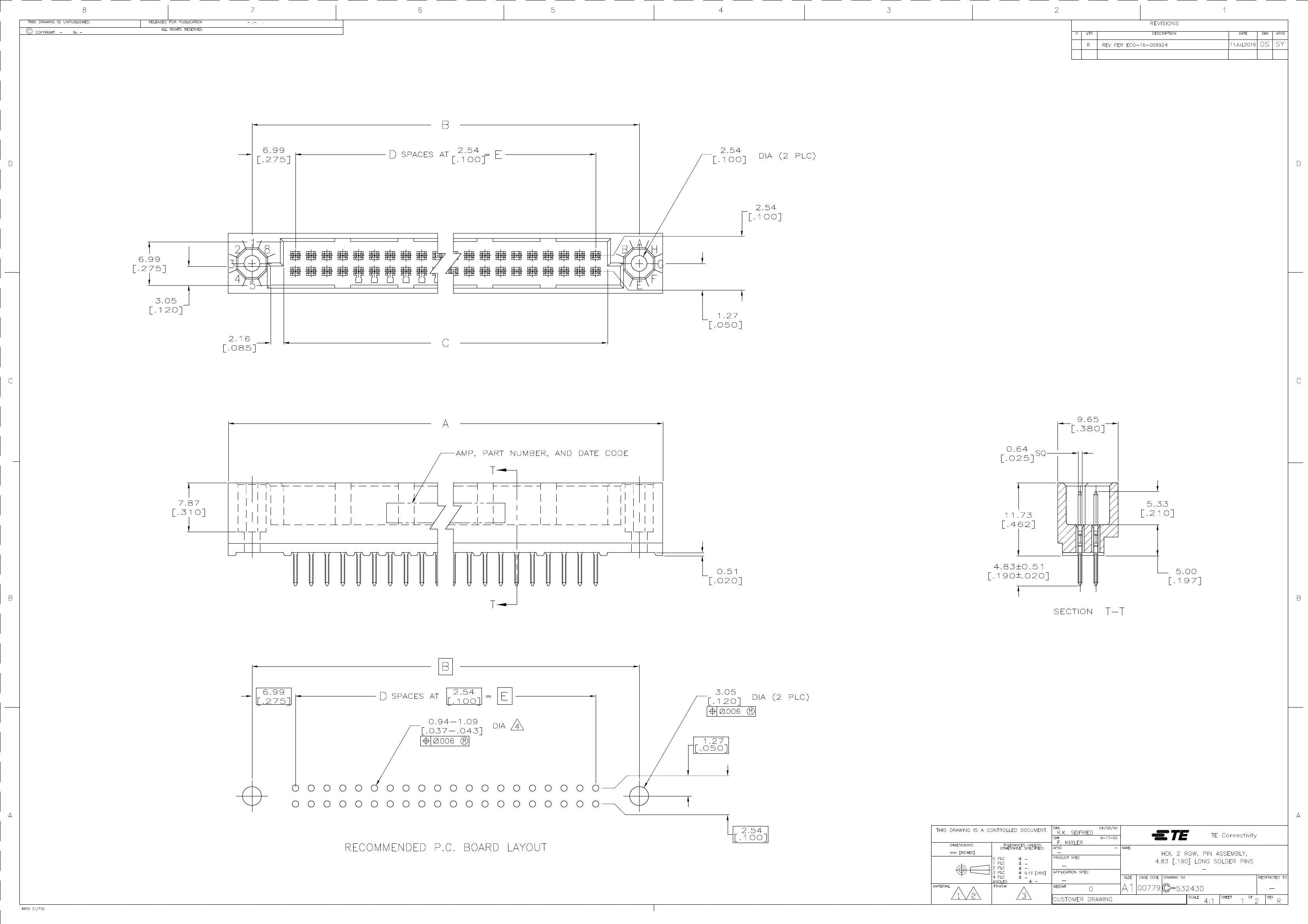

Download Datasheet Parametric View All

532430-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	532430-5	-	-	View	Buy Now

HDI PIN ASSY 2 ROW 60 POS

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
Other features	AMP-HDI
Board mount options	#2-56 THD HOLE
body width	0.38 inch
subject depth	0.462 inch
body length	3.75 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
Insulator color	NATURAL
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#2-56
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.19 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	60
Base Number Matches	1
