Part Number

Search

38-00-1336

Description
Headers u0026 Wire Housings VERT PCB HDR 6P TIN FRICTION LOCK
CategoryThe connector    The connector
File Size52KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

38-00-1336 Online Shopping

Suppliers Part Number Price MOQ In stock
38-00-1336 - - View Buy Now

38-00-1336 Overview

Headers u0026 Wire Housings VERT PCB HDR 6P TIN FRICTION LOCK

38-00-1336 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time23 weeks
Samacsys Confidence4
Samacsys StatusReleased
Samacsys PartID426012
Samacsys Pin Count6
Samacsys Part CategoryConnector
Samacsys Package CategoryHeader, Shrouded
Samacsys Footprint Name38-00-1336
Samacsys Released Date2017-05-13 16:58:24
Is SamacsysN
Other featuresSTACKABLE
Board mount optionsPCB EDGE LOCKING HOOK
body width0.185 inch
subject depth0.31 inch
body length0.596 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialBRASS/PHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleCOMPRESSION
DIN complianceNO
Dielectric withstand voltage250VAC V
Durability25 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force2.502 N
Insulation resistance500000000000 Ω
Insulator colorWHITE
insulator materialNYLON
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness40u inch
Rated current (signal)2.5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.133 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts6
UL Flammability Code94V-0
Evacuation force-minimum value.834 N
Base Number Matches1

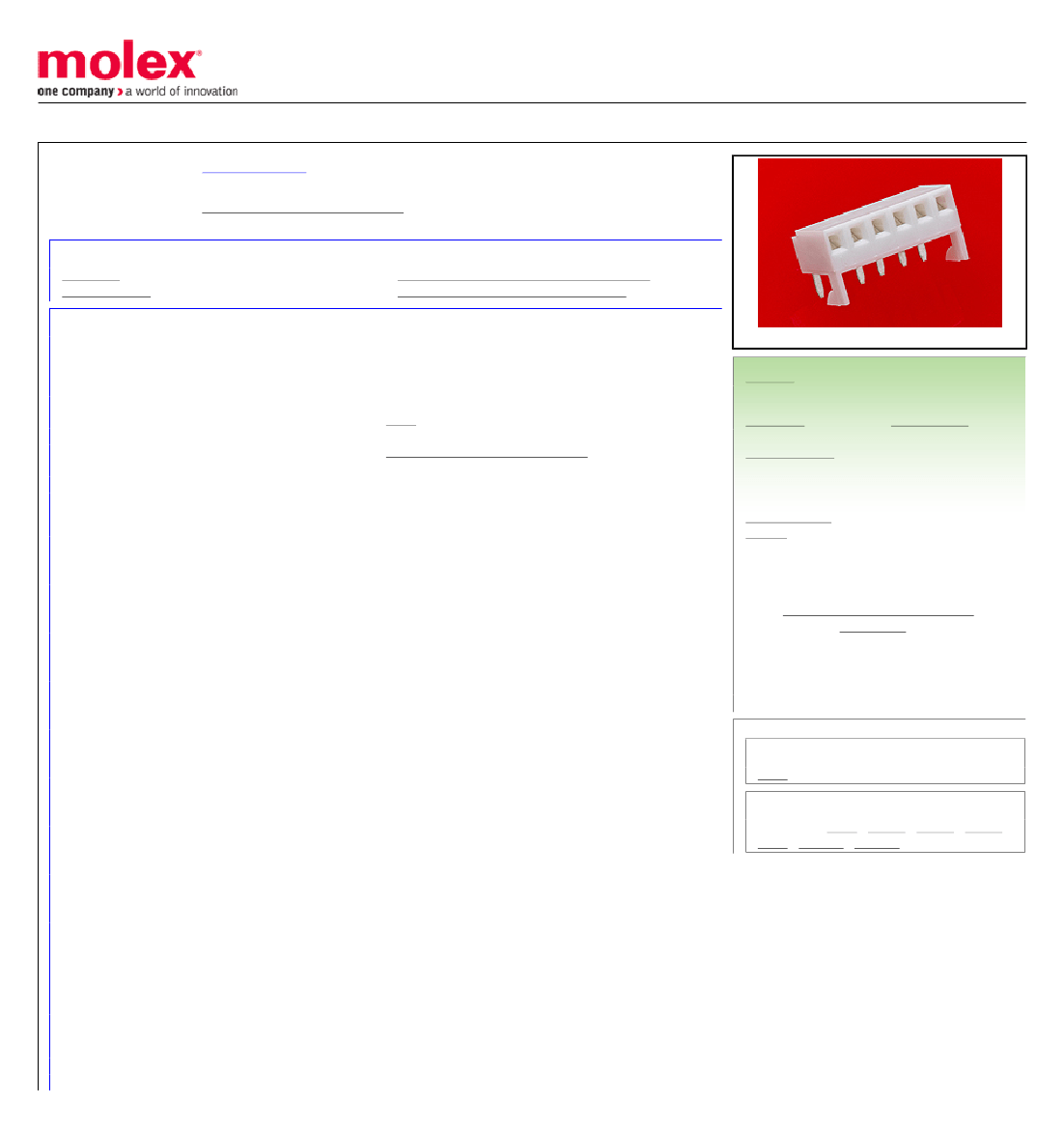

This document was generated on 12/11/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
3D Model
Drawing (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application
Overview
Product Name
UPC
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to PCB
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Grounding to PCB
Voltage - Maximum
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-freeProcess Capability
0038001336
Active
KK® Interconnect System - Molex
KK 254 PC Board Connector, Right Angle, with Cat Ear Terminal, 6 Circuits
Product Specification PS-10-07-001 (PDF)
RoHS Certificate of Compliance (PDF)
LR19980
E29179
PCB Receptacles
4455
Board-to-Board, Signal
KK® Interconnect System - Molex
KK 254
800753732148
6
6
Natural (White)
94V-0
No
No
None
No
Phosphor Bronze
Tin
Tin
Nylon
0.653/g
1
Right Angle
3.30mm
No
Yes
1.60mm
Tray
2.54mm
2.54mm
1.016µm
1.016µm
Yes
See Product Specification
Through Hole
2.5A
No
500V
005
WAVE
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
4455 Series
Mates With
KK Header 4094 , 42376 , 42375 , 42377 ,
4030 , 171856 , 171857
