374932 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 374932

374932: DescriptionDIN 41612 Connectors 20P VERT 4MM SLDR M BKPLN B-B TYPE Q3; CategoryThe connector The connector; File Size36KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

374932 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	374932	-	-	View	Buy Now

374932 Overview

DIN 41612 Connectors 20P VERT 4MM SLDR M BKPLN B-B TYPE Q3

374932 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	ERNI ERNIPRESS Series 20 Way 2.54mm Pitch, Type Q/3 Class C2, 2 Row a/b, Straight DIN 41612 Connector, Plug, Solder
Other features	ROHS COMPLIANT
body width	0.339 inch
subject depth	0.457 inch
body length	1.565 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9174 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.157 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

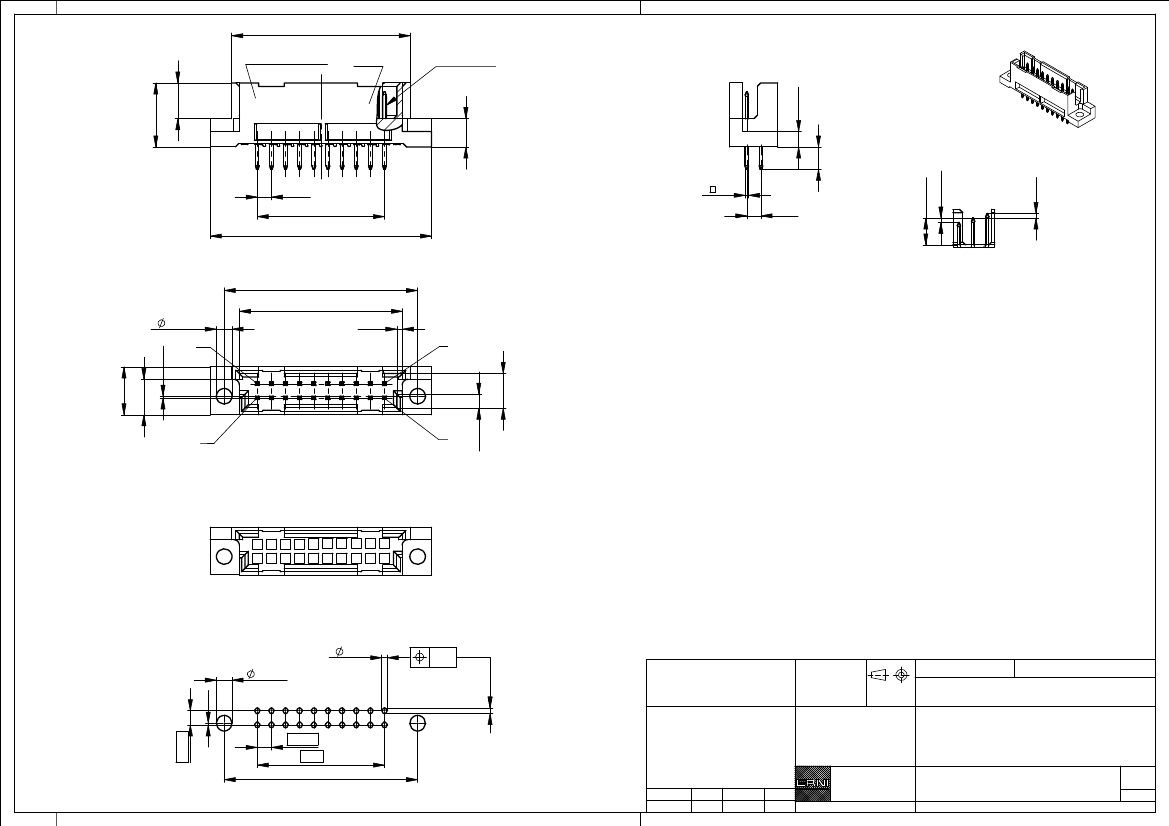

32,1

-0,2

Anforderungsstufe

class

6,4

-0,1

Datum

date

Stecklänge

mating length

2,9

-0,3

5,2

-0,1

a b

±0,2

Stecklänge /

mating length

4,8

0,8

±0,1

0,8

±0,1

+0,2

11,6max.

2,54

9x2,54=22,86

39,76max.

2,8

0,3

+0,1

a10

8,6max.

6,35

6,2

+0,1

b10

2,5

-0,2

Bestückungsplan /

contact layout

10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S

Bedruckung siehe Zeichnung 294905

Leiterplatten-Lochbild /

PCB drillhole pattern

2,8

0,3

+0,1

Proprietary notice pursuant to ISO 16016 to be observed.

10 9 8 7 6 5 4 3 2 1

2,54

9x 2,54 =22,86

34,76

2,54

ERNI

34,76

29,3

RC 2

XXXXXXX

0,6

2,54

L S E

E =

early mate, late break

/ voreilend

S = standard

L =

late mate, early break

/ nacheilend

+0,2

-0,1

Gerader Anschluss 0,6x0,6mm /

straight terminal 0,6x0,6mm

Isolierwerkstoff

/ housing material : PBT GF 30

Bauart 4 / t

ype 4

Anforderungsstufe 2 = 400 Steckzyklen

/ performance class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Marking see drawing 294905

±0,1

alle Löcher

0,05

all holes

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

18.05.2009

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste Q/3, 20

Male Connector Q/3, 20

www.ERNI.com

Class

374932

STVQ/3
