415-93-256-41-003100: DescriptionIC Socket, SIP56, 56 Contact(s),; CategoryThe connector socket; File Size110KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

415-93-256-41-003100 Overview

IC Socket, SIP56, 56 Contact(s),

415-93-256-41-003100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DIP SOCKET, LOW PROFILE
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP56
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e0
Number of contacts	56
Base Number Matches	1

Preview

Download Datasheet

View All

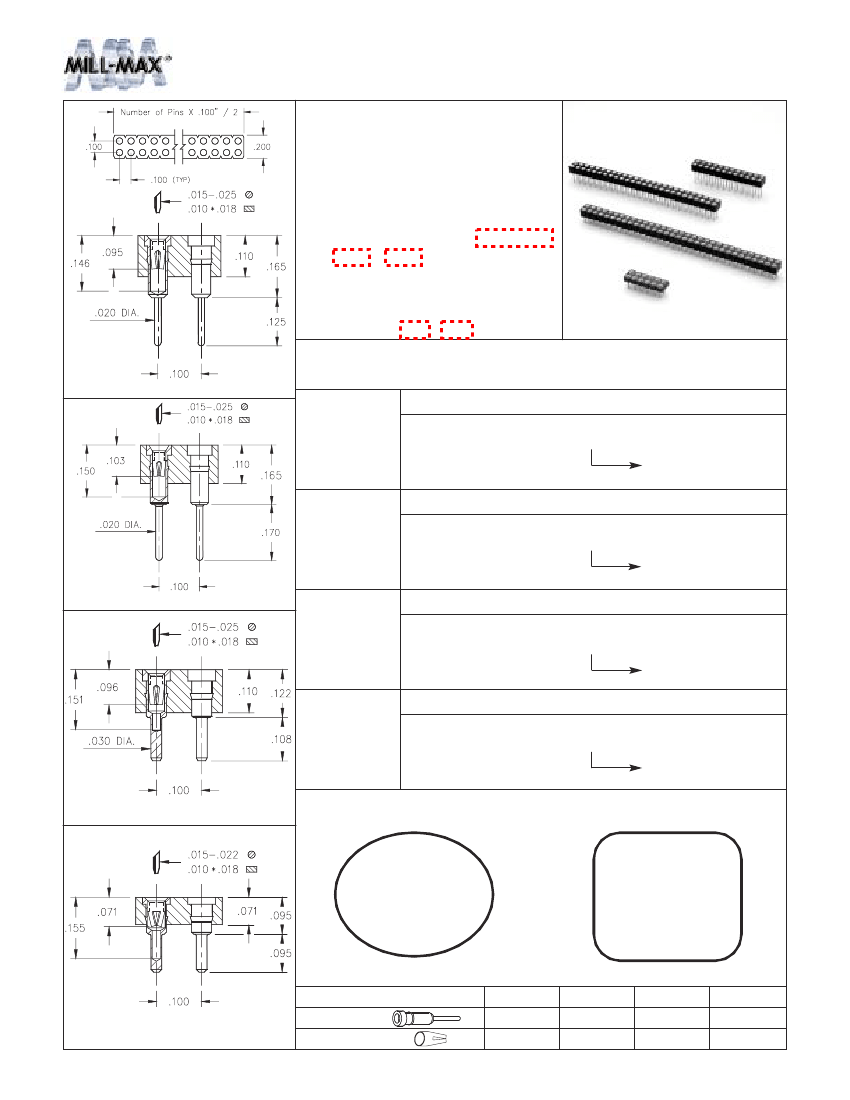

SINGLE-IN-LINE SOCKETS

Solder Tail

Double Row

•

Series 41X double row strip

sockets are on .100” grid.

•

Various solder pins available

(standard, long for multi-layer

boards, very low and ultra low).

Using Mill-Max pin #’s 1001, 0134,

0501 & 0703.

Hi-Rel, 4-finger BeCu #30 & #12

clips are rated at 3 amps.

See pages 207 & 208 for details.

Series 410, 411, 415

•

Ordering Information

Fig. 1

Series 410...001

Standard Solder Tail

Fig. 1

410-XX-2_ _-41-001

Specify # of pins

Series 411...001

02-64

Long Solder Tail

Fig. 2

411-XX-2_ _-41-001

Specify # of pins

Series 415...001

02-64

Very Low Profile

Fig. 3

415-XX-2_ _-41-001

Specify # of pins

Series 415...003

02-64

Ultra Low Profile

Fig. 4

415-XX-2_ _-41-003

Specify # of pins

02-72

Fig. 3

XX= Plating Code

See Below

For High

Temperature

Insulators Add

‘100’

To End Of

Part Numbers

13

10µ” Au

30µ” Au

93

200µ” Sn/Pb

30µ” Au

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Fig. 4

Contact (Clip)

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
