M85049-3622W06A datasheet, PDF

Datasheet> All Categories > The connector> M85049-3622W06A

M85049-3622W06A: DescriptionCircular MIL Spec Backshells EMI/RFI NON ENV SHLL SZ22 CLMP SZ06; CategoryThe connector; File Size103KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049-3622W06A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M85049-3622W06A	-	-	View	Buy Now

M85049-3622W06A Overview

Circular MIL Spec Backshells EMI/RFI NON ENV SHLL SZ22 CLMP SZ06

M85049-3622W06A Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Backshells
Manufacturer	Glenair
MIL Type	MIL-DTL-38999 I, II
Product	Non-Environmental EMI/RFI Backshells
Shell Style	Straight
Shell Size	22
Shell Plating	Olive Drab Cadmium over Electroless Nickel
Shell Material	Aluminum Alloy
Mating Style	Threaded
Mounting Angle	Straight
Factory Pack Quantity	1

Preview

Download Datasheet

View All

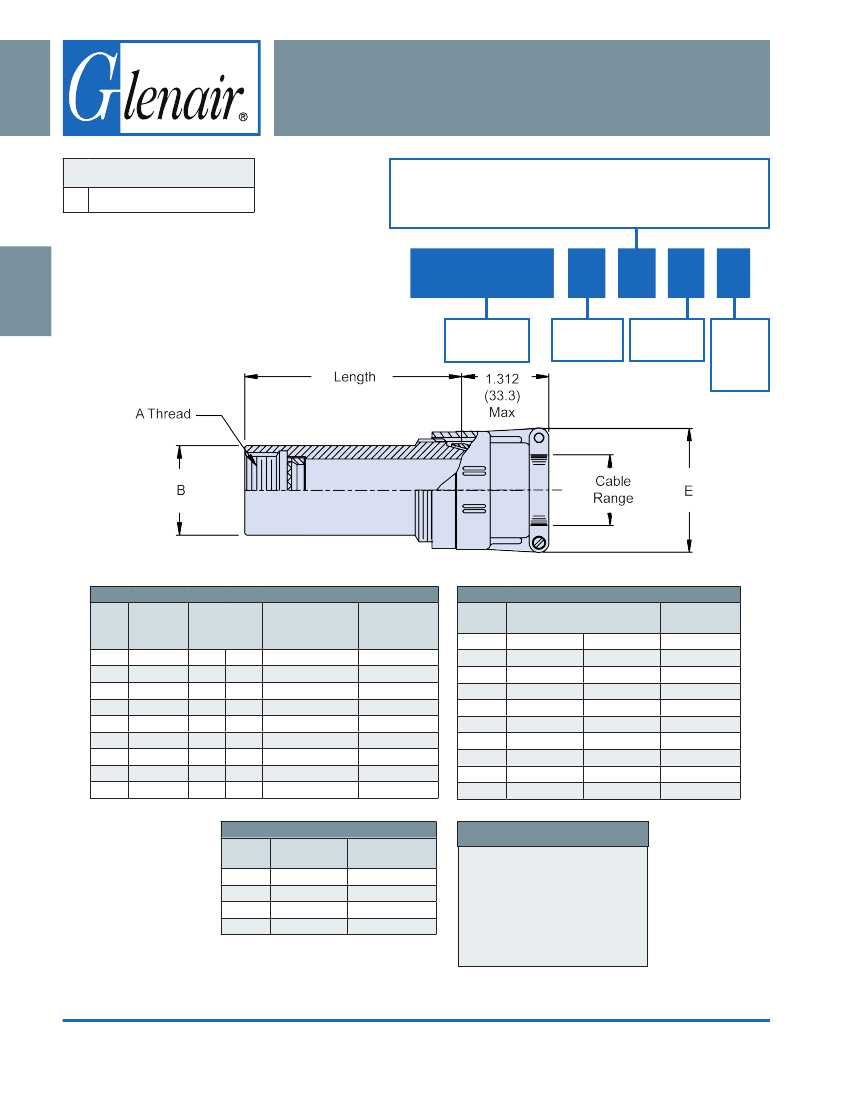

AS85049/36 and M38999/7

Straight EMI/RFI Non-Environmental Backshell

Table III

AS85049

CONNECTOR DESIGNATOR:

MIL-DTL-38999 Series I and II

Finish

= Electroless Nickel

= Nickel Fluorocarbon Polymer

= 1,000 Hr. Cadmium Olive Drab

= Zinc-Nickel, Black

over Electroless Nickel

M85049/36

Basic

Part Number

Shell Size

(Table I)

Length

Code

(Omit for

Standard)

Clamp Size

(Table I)

TABLE I: Shell Size and Clamp Size

TABLE II: Cable Range and Dimensions

Shell Series I

Size Shell Size

Ref.

Clamp Size

(Table II)

Min Max

A Thread

Class 2B

.438 - 28 UNEF

.562 - 24 UNEF

.688 - 24 UNEF

.813 - 20 UNEF

.938 - 20 UNEF

1.063 - 18 UNEF

1.188 - 18 UNEF

1.313 - 18 UNEF

1.438 - 18 UNEF

B Dia

Max

.65

.77

.89

1.02

1.15

1.23

1.36

1.48

1.73

(16.5)

(19.6)

(22.6)

(25.9)

(29.2)

(31.2)

(34.5)

(37.6)

(43.9)

Clamp

Size

Cable Range

Min Max

.062 (1.6)

.125 (3.2)

.250 (6.4)

.375 (9.5)

.312 (7.9)

.500 (12.7)

.437 (11.1)

.625 (15.9)

.562 (14.3)

.750 (19.1)

.687 (17.4)

.875 (22.2)

.812 (20.6) 1.000 (25.4)

.937 (23.8) 1.125 (28.6)

1.062 (27.0) 1.250 (31.8)

Max

.781

.969

1.062

1.156

1.250

1.375

1.500

1.625

1.750

1.875

(19.8)

(24.6)

(27.0)

(29.4)

(31.8)

(34.9)

(38.1)

(41.3)

(44.5)

(47.6)

TABLE III: Length Code

Length

Code

Std.

Available

Shell Sizes

08 - 24

14 - 24

20 - 24

APPLICATION NOTES

For complete dimensions see the

applicable Military Specification.

Metric dimensions (mm) are in

parentheses.

Cable Range is defined as the

accommodation range for the wire

bundle or cable. Dimensions shown

are not intended for inspection

criteria.

Length

1.500 (38.1)

2.500 (63.5)

3.500 (88.9)

4.500 (114.3)

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-60

E-Mail: sales@glenair.com
