43223-6013

Description
Modular Connectors / Ethernet Connectors RA 6/6/6 RJ-11 flush mount ganged
CategoryThe connector    The connector
File Size29KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

43223-6013 Online Shopping

Suppliers Part Number Price MOQ In stock
43223-6013 - - View Buy Now

43223-6013 Overview

Modular Connectors / Ethernet Connectors RA 6/6/6 RJ-11 flush mount ganged

43223-6013 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other features6 PORT, 6-POSITION EACH
Board mount optionsPEG
body width0.505 inch
subject depth0.828 inch
body length2.877 inch
Body/casing typeJACK
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance10 mΩ
Contact styleTELCOM, MODULAR
DIN complianceNO
Dielectric withstand voltage1000VAC V
Durability500 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
Insulation resistance500000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYAMIDE
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAIABLE
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of ports6
Maximum operating temperature80 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
Plating thickness50u inch
Rated current (signal)1.5 A
GuidelineCSA, UL
reliabilityCOMMERCIAL
Shell surfaceNICKEL
Shell materialBRASS
Terminal length0.11 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts36
UL Flammability Code94V-0
Base Number Matches1

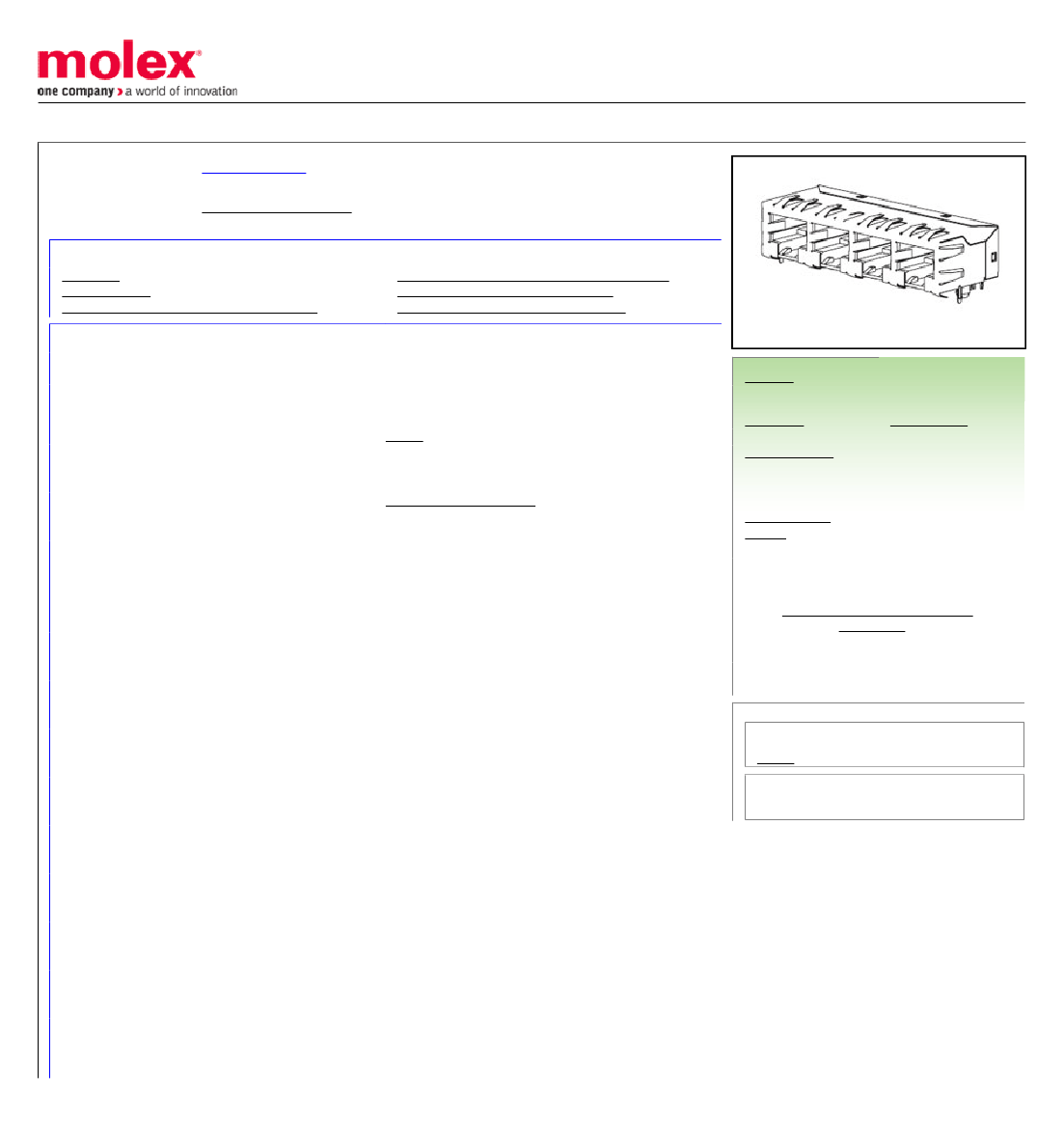

This document was generated on 06/10/2016
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0432236013
Active
Modular Jacks and Plugs
Modular Jack, Right Angle, Low Profile, 6/6, 6 Ports
Documents:
3D Model
Drawing (PDF)
Product Specification PS-43223-001 (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Comments
Component Type
Magnetic
Overview
Performance Category
Power over Ethernet (PoE)
Product Name
UPC
Physical
Boot Color
Color - Resin
Durability (mating cycles max)
Flammability
Inverted / Top Latch
Jack Height
Lightpipes/LEDs
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Orientation
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Ports
Positions / Loaded Contacts
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
Wire/Cable Type
Electrical
Packaging Specification PK-43249-004 (PDF)
Test Summary TS-43223-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
LR19980
E107635
Modular Jacks/Plugs
43223
Flush Mount|Flangeless|External Shield
PCB Jack
No
Modular Jacks and Plugs
3, 4
N/A
RJ11
800754379113
N/A
Black
500
94V-0
No
12.83mm
None
Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
13.616/g
Right Angle (Side Entry)
Yes
Yes
1.57mm
Tray
1.02mm
1.27mm
1.270µm
2.540µm
6
6/6
No
-40°C to +85°C
Through Hole
No
N/A
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/79/2015 (17
December 2015)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
Green Image
Not Relevant
Search Parts in this Series
43223 Series
Mates With
FCC 68 Plugs
