214563 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 214563

214563: DescriptionD Subminiature Connector, 9 Contact(s), Male, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

214563 Overview

D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, Receptacle,

214563 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.236 inch
body length	1.22 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	YES
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	YES
Manufacturer's serial number	214563
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	6 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Terminal length	0.118 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Evacuation force-minimum value	.3614 N
Base Number Matches	1

Preview

Download Datasheet

View All

Verpackt in Tray

Verpackungseinheit 48 St.

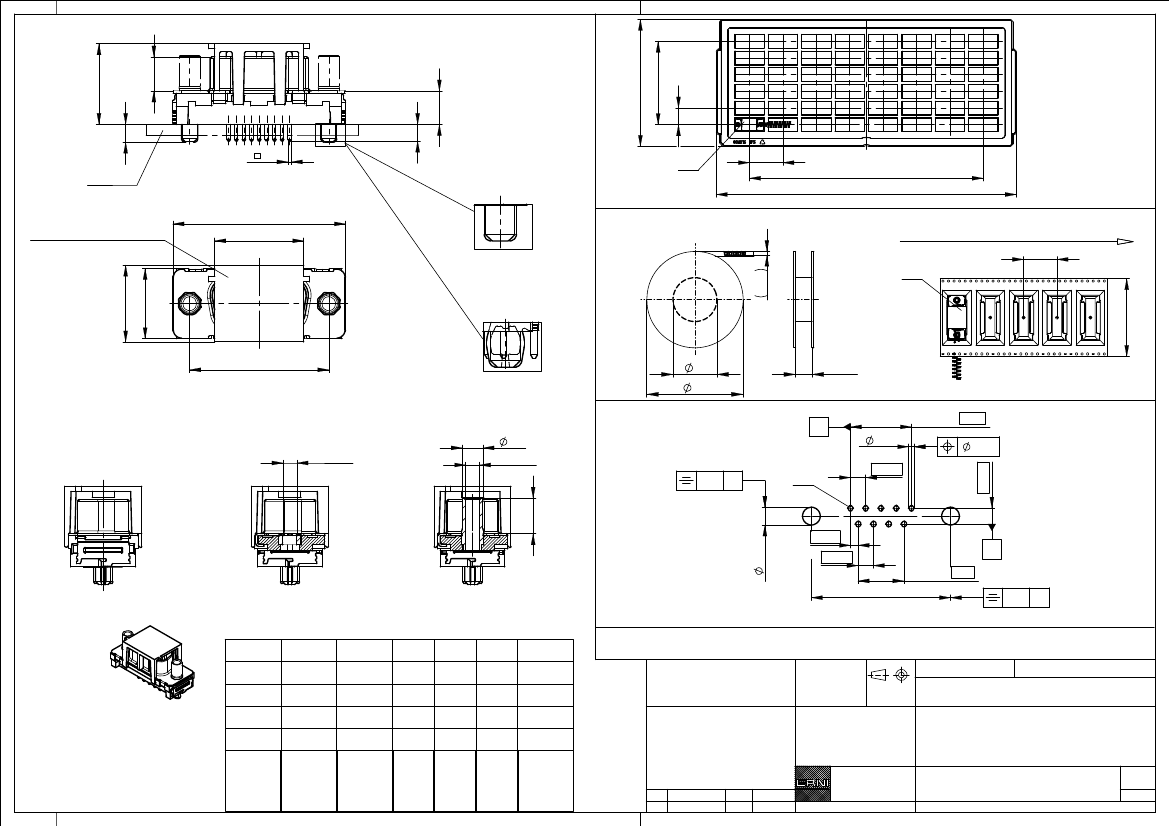

+0,3

5 x 18 = 90

max. 138

tray packaging

packaging unit 48 pcs

14,5

5,8

3,2

Variante 1

0,6

version 1

Leiterplatte

Bestückung kraftlos

Pin 1

7 x 36 = 252

pcb

powerless assembly

-0,4

+0,2

hood only on version 1

Ansaughaube nur bei Version 1

Variante 2

max. 325

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 75 Stück -

Packaging unit: 75 pcs

Abspulrichtung -

Reel

off Direction

21,2

Pin 1

version 2

12,6

±0,3

13,8

Bestückung mit Kraft

assembly with force

±0,1

150

330

56,5

ohne /

without

Mutter /

nut

max. Einschraubtiefe 3,5 mm

Bolzen /

bolt

thread depth max. 3,5 mm

max. Einschraubtiefe 5,5 mm

Layoutvorschlag:

thread depth max. 5,5 mm

3,7

recommended layout:

0,05

Pin 1

4 x 2,74 = 10,96

+0,09

-0,06

6,4

3,2

±0,1

1,37

2,74

3 x 2,74 = 8,22

±0,05

2,84

Gewinde

/ thread

/ #4-40

Gewinde

/ thread

/ #4-40

0,05 (9x)

2,74

Beschriftung nach Bedruckungsvorschrift 174538

0,05

Part marking according to specification 174538

M 1:1

Sonstige Angaben siehe Zeichnung 204625 /

Additional indications according to drawing 204625

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to the production documentation

Proprietary notice pursuant to ISO 16016 to be observed.

214563

214567

214566

Anschlussbereich verzinnt

#4-40

ohne

Mutter

Bolzen Bemerkung

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

terminal area tin plating

Anforderungsstufe: 2

214565

214564

part-no.

tape &reel

Variante 1

Ident-Nr.

Ident.-Nr.

Variante 1

class: 2

part-no.

tray

Ident.-Nr.

Variante 2

part-no.

tray

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

23.03.2010

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-P 09-THR-3,0-6,0-BA8

TMC-P 09-THR-3,0-6,0-type 8

without

thread

bolt

remark

www.ERNI.com

Class

144989

TMCP

version 1

version 2

214563 Related Products

	214563	214564	214565	214566	214567
Description	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, Receptacle,	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, M3, Receptacle,	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, #4-40, Receptacle,	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, M3, Receptacle,	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, #4-40, Receptacle,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch	0.496 inch	0.496 inch	0.496 inch	0.496 inch
subject depth	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch
body length	1.22 inch	1.22 inch	1.22 inch	1.22 inch	1.22 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	YES	YES	YES	YES	YES
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES
maximum insertion force	3.336 N	3.336 N	3.336 N	3.336 N	3.336 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
JESD-609 code	e3	e3	e3	e3	e3
MIL compliance	YES	YES	YES	YES	YES
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm
Rated current (signal)	6 A	6 A	6 A	6 A	6 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	1/E	1/E	1/E	1/E	1/E
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2.7432 mm	2.7432 mm	2.7432 mm	2.7432 mm	2.7432 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	9	9	9	9	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.3614 N	.3614 N	.3614 N	.3614 N	.3614 N
Manufacturer's serial number	214563	214564	-	214566	-
Maker	-	ERNI	ERNI	ERNI	ERNI
Installation option 1	-	M3	#4-40	M3	#4-40
Installation option 2	-	THREADED	THREADED	SCREW	SCREW
