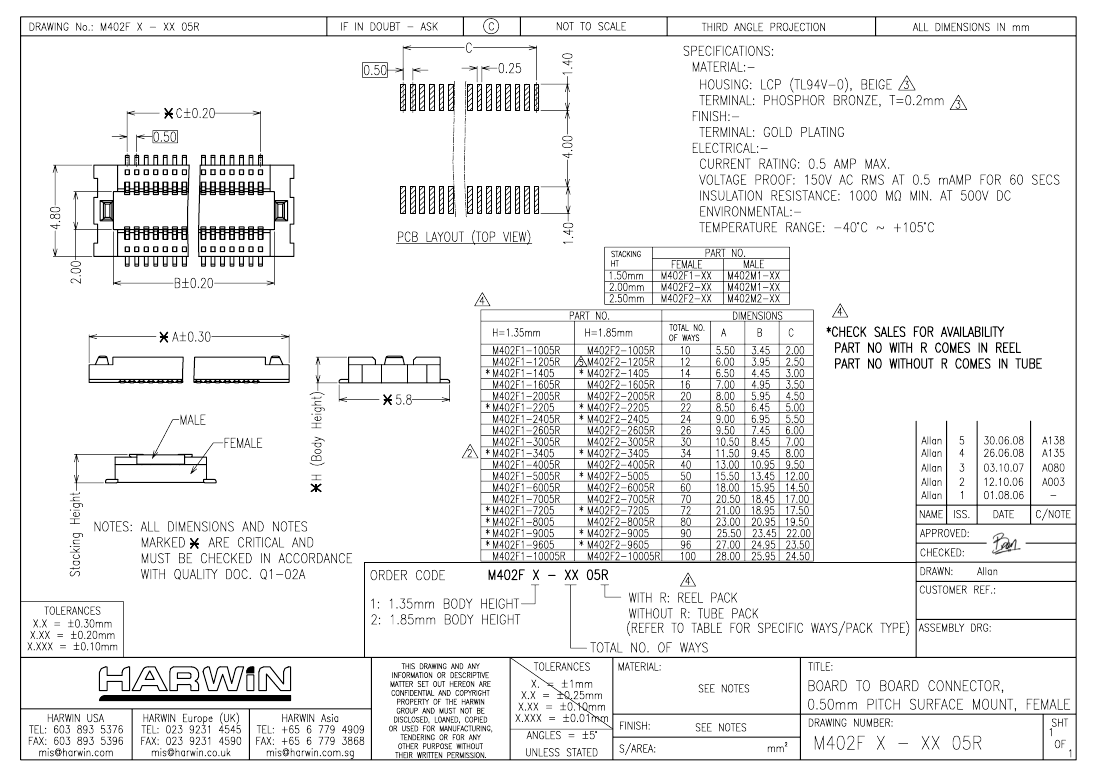

M402F1-4005R |
M402F1-3405R |
M402F2-1605R |
M402F1-10005R |
| Description |
Board to Board u0026 Mezzanine Connectors 0.5mm pitch SMT DIL Vertical Socket, 20+20-way - 1.35mm high |
Board to Board u0026 Mezzanine Connectors 17+17 PIN DIL SOCKET 1.35mm HIGH T/R |
Board to Board u0026 Mezzanine Connectors 8+8 PIN DIL SOCKET 1.85mm HIGH T/R |
Board to Board u0026 Mezzanine Connectors 50+50 PIN DIL SOCKET 1.35mm HIGH T/R |
| Is it Rohs certified? |
conform to |
conform to |
conform to |
conform to |
| package instruction |
LEAD FREE |
LEAD FREE |
LEAD FREE |
LEAD FREE |
| Reach Compliance Code |
not_compliant |
compliant |
not_compliant |
not_compliant |
| Is Samacsys |
N |
N |
N |
N |
| Connector type |
BOARD STACKING CONNECTOR |
BOARD STACKING CONNECTOR |
BOARD STACKING CONNECTOR |
BOARD STACKING CONNECTOR |
| Contact to complete cooperation |
GOLD |
GOLD |
GOLD |
GOLD |
| Contact completed and terminated |
Gold (Au) |
GOLD |
Gold (Au) |
Gold (Au) |
| Contact point gender |
FEMALE |
FEMALE |
FEMALE |
FEMALE |
| Contact material |
PHOSPHOR BRONZE |
PHOSPHOR BRONZE |
PHOSPHOR BRONZE |
PHOSPHOR BRONZE |
| DIN compliance |
NO |
NO |
NO |
NO |
| Filter function |
NO |
NO |
NO |
NO |
| IEC compliance |
NO |
NO |
NO |
NO |
| JESD-609 code |
e4 |
e4 |
e4 |
e4 |
| MIL compliance |
NO |
NO |
NO |
NO |
| Manufacturer's serial number |
M402F1 |
M402F1 |
M402F2 |
M402F1 |
| Plug information |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts |
NO |
NO |
NO |
NO |
| Installation method |
STRAIGHT |
STRAIGHT |
STRAIGHT |
STRAIGHT |
| Installation type |
BOARD |
BOARD |
BOARD |
BOARD |
| Number of rows loaded |
2 |
2 |
2 |
2 |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
| Terminal pitch |
0.5 mm |
0.5 mm |
0.5 mm |
0.5 mm |
| Termination type |
SURFACE MOUNT |
SURFACE MOUNT |
SURFACE MOUNT |
SURFACE MOUNT |
| Total number of contacts |
40 |
34 |
16 |
100 |
| UL Flammability Code |
94V-0 |
94V-0 |
94V-0 |
94V-0 |
| Base Number Matches |
1 |
1 |
1 |
1 |
| ECCN code |
EAR99 |
- |
EAR99 |
EAR99 |
| Other features |
ROHS COMPLIANT |
- |
ROHS COMPLIANT |
ROHS COMPLIANT |
| body width |
0.189 inch |
- |
0.189 inch |
0.189 inch |
| subject depth |
0.053 inch |
- |
0.073 inch |
0.053 inch |
| body length |
0.512 inch |
- |
0.276 inch |
1.102 inch |
| Body/casing type |
PLUG |
- |
PLUG |
PLUG |
| contact mode |
RECTANGULAR |
- |
RECTANGULAR |
RECTANGULAR |
| Contact style |
BELLOWED TYPE |
- |
BELLOWED TYPE |
BELLOWED TYPE |
| Dielectric withstand voltage |
200VAC V |
- |
200VAC V |
200VAC V |
| Insulation resistance |
1000000000 Ω |
- |
1000000000 Ω |
1000000000 Ω |
| Insulator color |
BEIGE |
- |
BEIGE |
BEIGE |
| insulator material |
LIQUID CRYSTAL POLYMER (LCP) |
- |
LIQUID CRYSTAL POLYMER (LCP) |
LIQUID CRYSTAL POLYMER (LCP) |
| Plug contact pitch |
0.02 inch |
- |
0.02 inch |
0.02 inch |
| Number of connectors |
ONE |
- |
ONE |
ONE |
| PCB row number |
2 |
- |
2 |
2 |
| Maximum operating temperature |
105 °C |
- |
105 °C |
105 °C |
| Minimum operating temperature |
-40 °C |
- |
-40 °C |
-40 °C |
| PCB contact pattern |
RECTANGULAR |
- |
RECTANGULAR |
RECTANGULAR |
| PCB contact row spacing |
5.4102 mm |
- |
5.4102 mm |
5.4102 mm |
| Rated current (signal) |
0.5 A |
- |
0.5 A |
0.5 A |
| Guideline |
UL |
- |
UL |
UL |
| reliability |
COMMERCIAL |
- |
COMMERCIAL |
COMMERCIAL |
