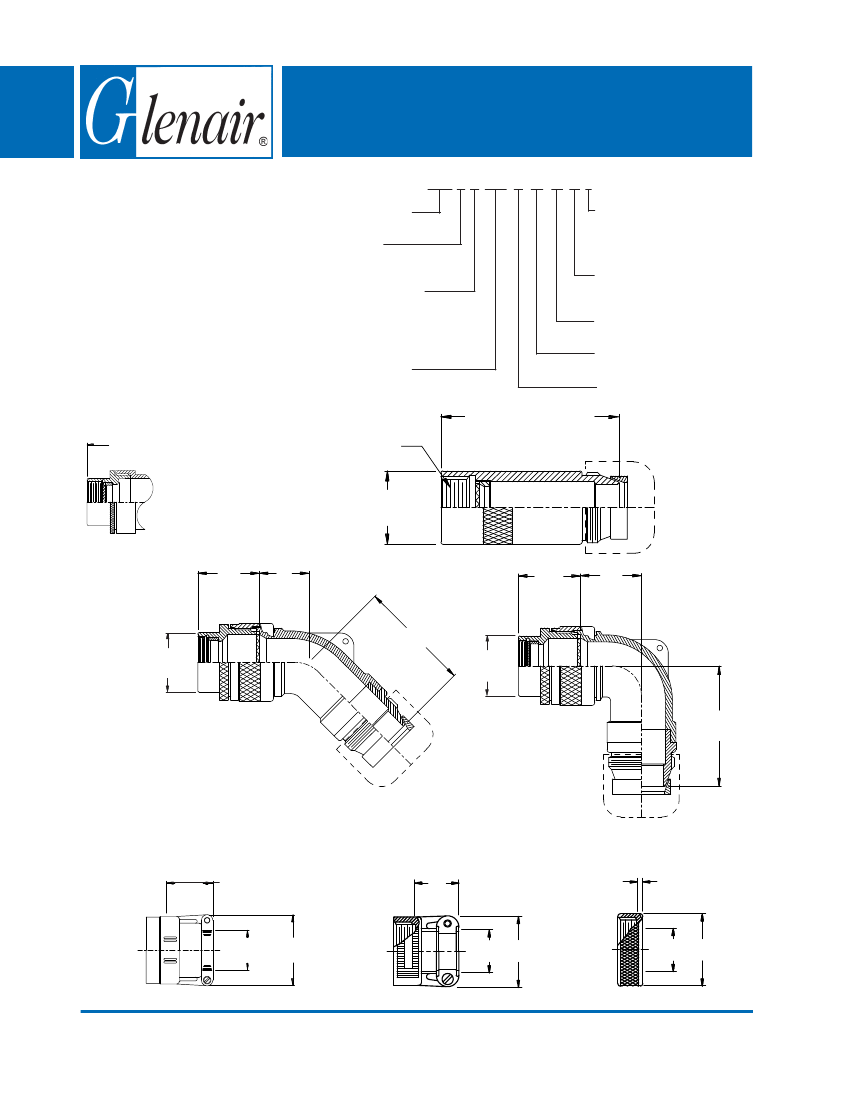

380-006
EMI/RFI Non-Environmental Backshell
Heavy-Duty with Strain Relief
Type C - Direct Coupling - Low Profile
38
A-B -C-D-E-F
G-H-J-K-L-S
* Conn. Desig. B See Note 5
CONNECTOR
DESIGNATORS
*
380 F S 006 M 16 10 D 6
Product Series
Connector
Designator
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
Finish (Table II)
A Thread
(Table I)
Length ± .060 (1.52)
Min. Order Length 1.5 Inch
(See Note 4)
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style
(M, D)
Cable Entry (Table X)
Shell Size (Table I)
DIRECT
COUPLING
TYPE C OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Min. Order Length 2.0 Inch
(See Note 4)
B
(Table I)
STYLE 2
(STRAIGHT
See Note 1)
J
E
(Table III) (Table
IV)
F (Table IV)
J
(Table III)
G
(Table IV)
B
(Table I)
B
(Table I)
H (Table IV)
STYLE M
Medium Duty - Dash No. 01-04
(Table X)
.850 (21.6)
Max
STYLE M
Medium Duty - Dash No. 10-28
(Table X)
X
STYLE D
Medium Duty
(Table X)
.135 (3.4)
Max
Cable
Range
Y
Cable
Range
Y
Cable
Range
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 28
Heavy-Duty with Strain Relief
Type C - Direct Coupling - Low Profile
Shell
Size
08/09
10/11
12/13
14/15
16/17
18/19
20/21
22/23
24/25
28/29
32/33
36
40
TABLE III: FRONT ADAPTER
J Max - Conn. Designator
A-E-F
C
J-H-L-S
D-B-G-K
1.180 (30.0) 1.440 (36.6)
1.180 (30.0) 1.440 (36.6)
1.180 (30.0) 1.440 (36.6) 1.735 (44.1)
1.180 (30.0) 1.440 (36.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 2.190 (55.6) 1.915 (48.6)
See inside back cover
fold-out or pages 13 and
14 for unabridged
Tables I and II.
1. When maximum cable entry (page 22) is exceeded,
Style 2 will be supplied. (Function S only.)
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range
for the wire bundle or cable. Dimensions shown are
not intended for inspection criteria.
4. Consult factory for shorter lengths on straight back-
shells.
5. When using Connector Designator B refer to pages
18 and 19 for part number development.
TABLE IV: ELBOW DIMENSIONS
Elbow
E
F
G
Size
Max
Max
Max
01
.567 (14.4) 1.848 (46.9)
.636 (16.2)
02
.567 (14.4) 1.848 (46.9)
.636 (16.2)
03
.630 (16.0) 1.908 (48.5)
.710 (18.0)
04
.692 (17.6) 1.968 (50.0)
.731 (18.6)
10
.755 (19.2) 2.347 (59.6)
.825 (21.0)
12
.848 (21.5) 2.457 (62.4)
.988 (25.1)
16 1.036 (26.3) 2.647 (67.2) 1.087 (27.6)
20 1.130 (28.7) 2.922 (74.2) 1.325 (33.7)
24 1.255 (31.9) 2.972 (75.5) 1.337 (34.0)
28 1.317 (33.5) 3.072 (78.0) 1.827 (46.4)
32 1.348 (34.2) 3.162 (80.3) 2.027 (51.5)
H
Max
1.858 (47.2)
1.858 (47.2)
1.978 (50.2)
1.998 (50.7)
2.357 (59.9)
2.447 (62.2)
2.617 (66.5)
2.852 (72.4)
3.022 (76.8)
3.272 (83.1)
3.272 (83.1)
TABLE Il: STANDARD FINISHES
GLENAIR
SYMBOL
B
M
NF
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
Dash
No.
01
02
03
04
10
12
16
20
24
28
© 2005 Glenair, Inc.
X
Max
.850 (21.6)
.850 (21.6)
.850 (21.6)
.850 (21.6)
.760 (19.3)
.760 (19.3)
1.073 (27.3)
1.323 (33.6)
1.323 (33.6)
1.572 (39.9)
TABLE X: CABLE ENTRY
Cable Range
Y
Z
Max
Max
Min
Max
.781 (19.8)
.062 (1.6)
.125 (3.2)
.593 (15.1)
.968 (24.6)
.718 (18.2)
.125 (3.2)
.250 (6.4)
1.046 (26.6)
.375 (9.5)
.843 (21.4)
.250 (6.4)
1.156 (29.4)
.375 (9.5)
.500 (12.7)
.968 (24.6)
1.281 (32.5)
1.192 (30.3)
.375 (9.5)
.625 (15.9)
1.500 (38.1)
1.380 (35.1)
.438 (11.1)
.750 (19.1)
1.719 (43.7)
.562 (14.3)
.938 (23.8)
1.535 (39.0)
2.062 (52.4)
1.250 (31.8)
1.848 (46.9)
.750 (19.1)
2.312 (58.7)
.875 (22.2)
1.375 (34.9)
2.255 (57.3)
2.719 (69.1)
2.505 (63.6)
1.125 (28.6)
1.625 (41.3)
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 29
38
380-006
EMI/RFI Non-Environmental Backshell
