5-146480-1 datasheet, PDF - EEWORLD Datasheet

5-146480-1: Description01 MODII HDR SRST UNSHRD STKG; CategoryThe connector; File Size240KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

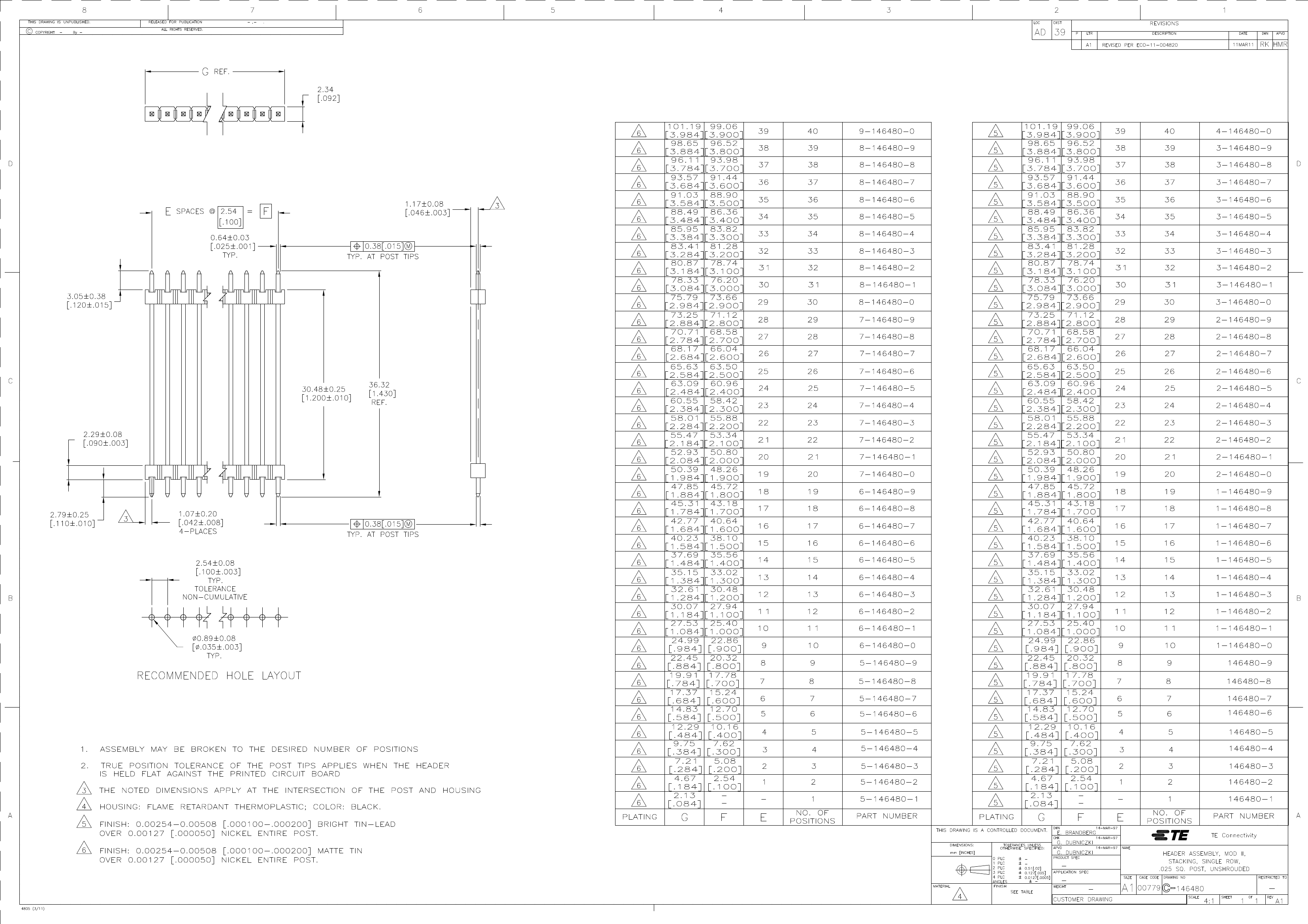

Download Datasheet Parametric View All

5-146480-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-146480-1	-	-	View	Buy Now

01 MODII HDR SRST UNSHRD STKG

Parameter Name	Attribute value
PCB Connector Component Types	PCB mounting header
Connectors and terminals terminate to	A printed circuit board
series	AMPMODU
Stackable	yes
PCB mounting direction	vertical
Number of Positions	1
Rows	1
Insulation resistance (MΩ)	5000
Cylinder size	.64 mm [ .025 in ]
Terminal base material	brass
PCB terminal termination area plating materials	tin
Terminal shape	square
Terminal contact plating material	tin
Terminal Contact Plating Thickness (µin)	100 – 200
Terminal type	Pin
Contact Current Rating (Max) (A)	3
PCB Terminal Termination Area Plating Thickness (µin)	100 – 200
Terminal layout	Direct plug-in
PCB Termination Methods	Through hole
Termination cylinder length	36.32 mm [ 1.4 in ]
PCB installation and fixation	Without
Centerline (Pitch)	2.54 mm [ .1 in ]
Shell color	black
Shell material	thermoplastic
stacking height	30.48 mm [ 1.2 in ]
tail length	3.05 mm [ .12 in ]
Joint post length	2.79 mm [ .109 in ]
Working group temperature range (°C)	-65 – 125
pick and place cover	Without
Applicable to	Female components
approved standards	CSA LE7189, UL E28476
UL flammability rating	UL 94V-0
