54002001

Description
Automotive Connectors MALE 1.5MM TERM 20-22 AWG TIN
CategoryThe connector    Connector bracket
File Size101KB，1 Pages
ManufacturerDelphi Connection Systems
Download Datasheet Parametric Compare View All

54002001 Online Shopping

Suppliers Part Number Price MOQ In stock
54002001 - - View Buy Now

54002001 Overview

Automotive Connectors MALE 1.5MM TERM 20-22 AWG TIN

54002001 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresCONTACT FINISH: TIN
Assembly nameCONTACT
Maximum number of cable entries0.059 inch
Minimum cable entry0.095 inch
Connector bracket typeCONNECTOR ACCESSORY
Contact point genderMALE
DIN complianceNO
IEC complianceNO
MIL complianceNO
Maximum operating temperature125 °C
Terminal typeCRIMP
Maximum wire diameter16 AWG
Minimum wire diameter22 AWG
Base Number Matches1

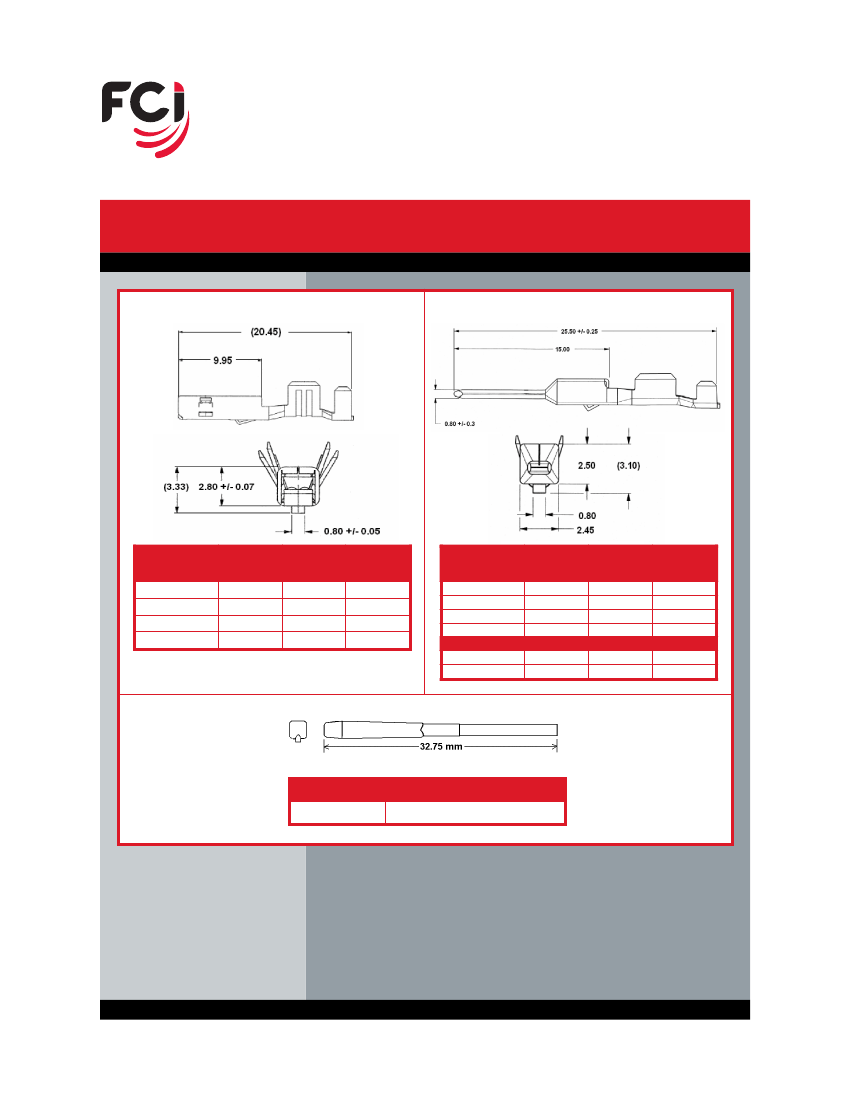

Preview

Download Datasheet
APEX 150
™
Sealed Connection Systems
APEX 150 Terminals & Cavity Plug
FEMALE
MALE
FEMALE
TERMINAL
PART NUMBER
54002000
54001625
54001627
54002002
WIRE GAGE
20-22
18-20
16-18
20-22
TERMINAL
MATERIAL
CuSn
CuSn
CuTeSn
CuTeSn
TERMINAL
PLATING
Sn
Sn
NiPdAu
NiPdAu
MALE TERMINAL WIRE GAGE
PART NUMBER
TERMINAL
MATERIAL
TERMINAL
PLATING
54002001
20-22
CuSn
Sn
54001626
18-20
CuSn
Sn
54001628
16-18
CuTeSn
NiPdAu
54002003
20-22
CuTeSn
NiPdAu
MALE TERMINAL FOR SHORTING BAR APPLICATIONS
54002004
20-22
CuTeSn
NiPdAu
54001629
16-18
CuTeSn
NiPdAu
PART NUMBER
54241629
DESCRIPTION
APEX 150 Cavity Plug
9

54002001 Related Products

54002001 54001627RWA 54001628RWA 54001626RWC 54001625RWA 54002001RWC 54002002 54001627
Description Automotive Connectors MALE 1.5MM TERM 20-22 AWG TIN Automotive Connectors FEMALE 1.5MM TERM 16-18 AWG GOLD Automotive Connectors MALE 1.5MM TERM 16-18 AWG GOLD Automotive Connectors MALE 1.5MM TERM 16-18 AWG TIN Automotive Connectors FEMALE 1.5MM TERM 16-18 AWG TIN Automotive Connectors APEX150 MALE D630 Automotive Connectors FEMALE 1.5MM TERM 20-22 AWG GOLD Automotive Connectors FEMALE 1.5MM TERM 16-18 AWG GOLD
Product Category - Automotive Connectors Automotive Connectors Automotive Connectors Automotive Connectors Automotive Connectors - -
Manufacturer - Delphi Connection Systems Delphi Connection Systems Delphi Connection Systems Delphi Connection Systems Delphi Connection Systems - -
Product - Terminals Terminals Terminals Terminals Terminals - -
Gender - Female Male Male Female Male - -
Mounting Style - Wire Wire Wire Wire Wire - -
Termination Style - Crimp Crimp Crimp Crimp Crimp - -
Contact Plating - Nickel, Palladium, Gold Nickel, Palladium, Gold Tin Tin Tin - -
Wire Gauge Range - 18 AWG - 16 AWG 18 AWG - 16 AWG 18 AWG - 16 AWG 18 AWG - 16 AWG 22 AWG - 20 AWG - -
Application - 1.5 mm Box / Blade 1.5 mm Box / Blade 1.5 mm Box / Blade 1.5 mm Box / Blade 1.5 mm Box / Blade - -
Contact Material - Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy - -
Contact Type - Terminal Terminal Terminal Terminal Terminal - -
Description/Function - Female, Terminal, APEX 1.5 mm, Sealed Male, Terminal, APEX 1.5 mm, Sealed Male, Terminal, APEX 1.5 mm, Sealed Female, Terminal, APEX 1.5 mm, Sealed Male, Terminal, APEX 1.5 mm, Sealed - -
Family - APEX APEX APEX APEX APEX - -
Material - CuTeSn CuTeSn CuSn CuSn CuSn - -
Packaging - Cut Tape Reel Cut Tape Reel Reel - -
Type - Terminal Terminal Terminal Terminal Terminal - -
