AT04-2P-R120YEL

Description
Automotive Connectors 2-WAY RCPT 120 Ohm YELLOW RESISTOR
CategoryThe connector
File Size214KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

AT04-2P-R120YEL Online Shopping

Suppliers Part Number Price MOQ In stock
AT04-2P-R120YEL - - View Buy Now

AT04-2P-R120YEL Overview

Automotive Connectors 2-WAY RCPT 120 Ohm YELLOW RESISTOR

AT04-2P-R120YEL Parametric

Parameter NameAttribute value
Product CategoryAutomotive Connectors
ManufacturerAmphenol
RoHSDetails
ProductConnectors
Number of Positions2 Position
GenderReceptacle (Female)
Wire Gauge Range20 AWG to 14 AWG
ColorYellow
Contact GenderPin (Male)
Current Rating13 A
Housing MaterialThermoplastic
Maximum Operating Temperature+ 125 C
Minimum Operating Temperature- 55 C
Factory Pack Quantity25

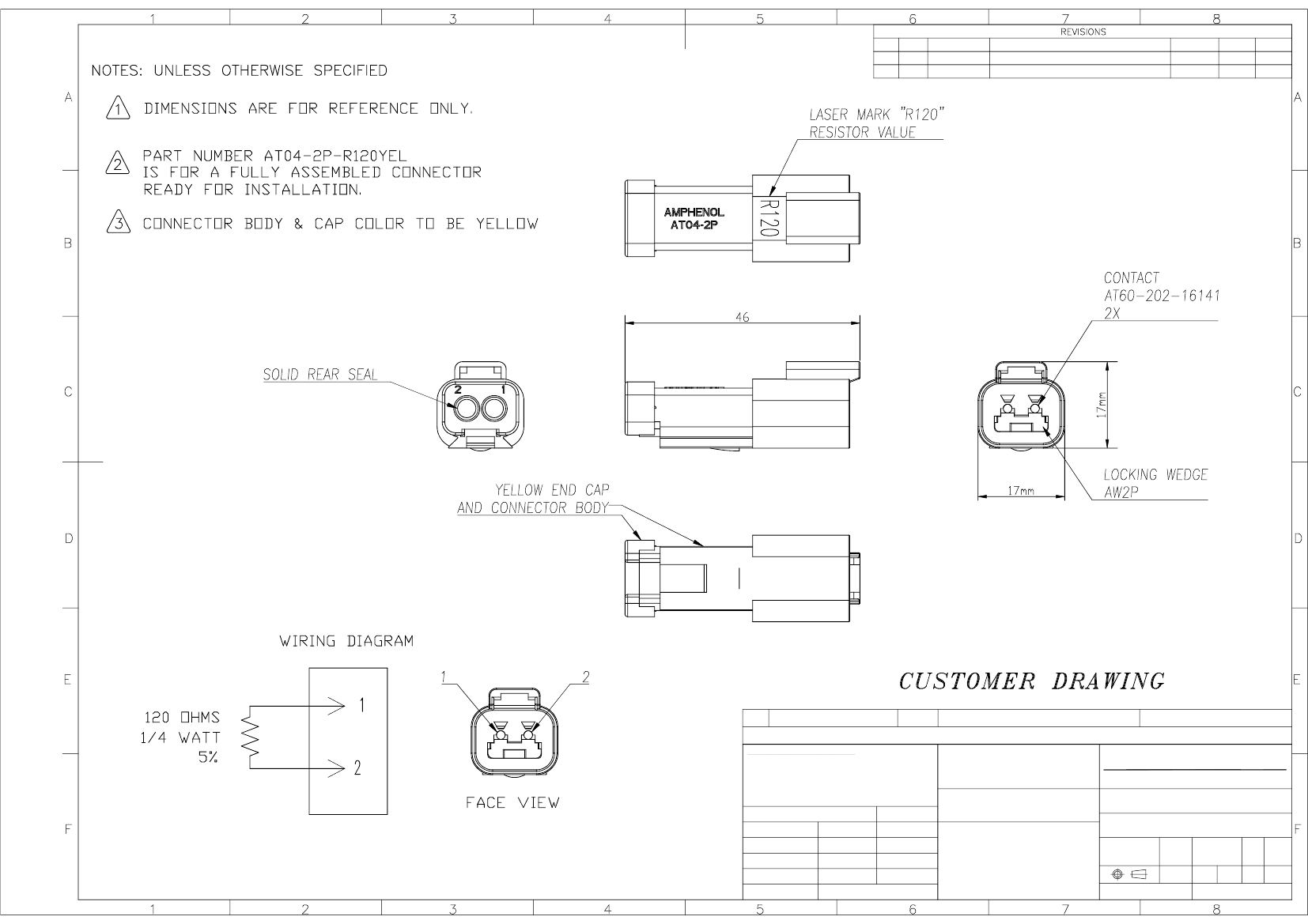

REV ZONE
ECO
DESCRIPTION
DATE
BY
APPR
01
02
--
--
--
--
RELEASE
UPDATE DRAWING FORMAT
03MAY12
06NOV13
RFC
DRP
RFC
DRP
ITEM
PART NUMBER
Qty
DESCRIPTION
MATERIAL SPECIFICATIONS:
REMARK
MATERIALS LIST
UNLESS OTHERWISE SPECIFIED
1) All dimensions are in metric(mm).
2) Tolerances are as follows:
1 PL DEC ±0.20
Fractions ±1/64
2 PL DEC ±0.10
Angles ±1°
3 PL DEC ±0.05
SINE
Systems Corporation
A Subsidiary of Amphenol Corporation
PROCESS SPECIFICATIONS:
DATE
RECEPT, 2 WAY "AT", 120 OHM, YELLOW
DWG NO:
SIGNATURE
DRAWN
CHECKED
ENGINEER
APPROVAL
CUSTOMER
IPC620-A
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
MANUFACTURING VARIATIONS
.
R. CURRY
R. CURRY
R. CURRY
R. CURRY
03-MAY-12
03-MAY-12
03-MAY-12
03-MAY-12
ALL
AT04-2P-R120YEL
FSCM NO.
SIZE
MASS
REV.
THIRD ANGLE
PROJECTION
SCALE
A3
SHEET
02
NONE
1
OF
1
NEXT ASS'Y:
