60-1518-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 60-1518-10

60-1518-10: DescriptionIC u0026 Component Sockets DUAL ROW COLLET SOLDER TAIL 60 PINS; CategoryThe connector socket; File Size427KB，1 Pages; ManufacturerAries Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

60-1518-10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	60-1518-10	-	-	View	Buy Now

60-1518-10 Overview

IC u0026 Component Sockets DUAL ROW COLLET SOLDER TAIL 60 PINS

60-1518-10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Aries Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
body width	0.2 inch
subject depth	0.165 inch
body length	3 inch
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact material	BRASS
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	DIP60
Shell material	POLYAMIDE46
JESD-609 code	e3
Manufacturer's serial number	518
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	60
Maximum operating temperature	105 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.1 mm
Terminal pitch	2.54 mm
Termination type	SOLDER

Preview

Download Datasheet

View All

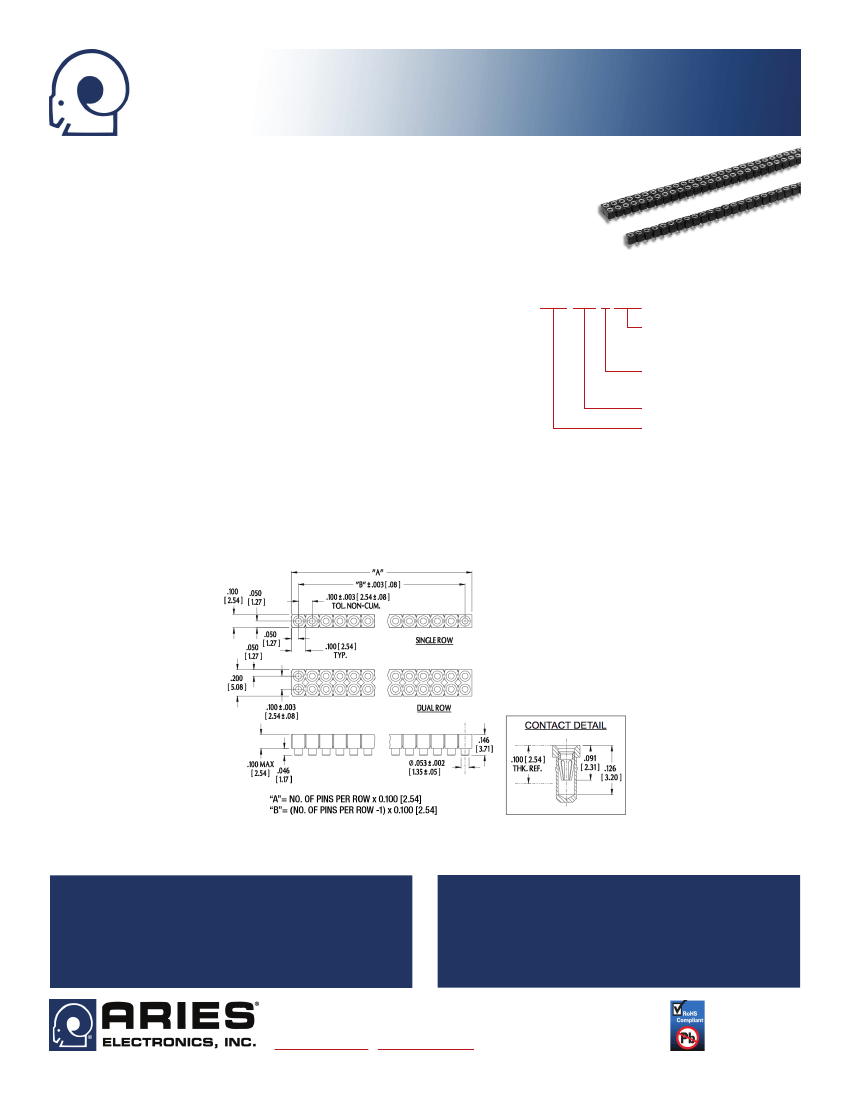

Series 518 Single & Dual Row Socket Strips

w/Collet Contacts & Surface Mount Pins

FEATURES

• Available in Single and Dual Row Strips

• Socket Strips to be cut to the number of positions desired with ‘break’ Feature

• Compatible with Automatic Insertion Equipment

• Side-to-side and End-to-end Stackable

GENERAL SPECIFICATIONS

•

BODY MATERIAL: Black UL 94V-0 Glass-filled 4/6 Nylon

•

PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05

•

PIN BODY PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 –OR– 200µ [5.08µ] min.

93/7 Sn/Pb per ASTM B545 –OR– 200µ [5.08µ] min. Sn per ASTM B545 Type 1 over

100µ [2.54µ] min. Ni per SAE AMS-QQ-N-290B

•

4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM B194-08

•

CONTACT PLATING: 10µ [0.25µ] Au per MIL-G-45204 over 50µ min. [1.27µ] Ni per

SAE AMS-QQ-N-290B

•

CONTACT CURRENT RATING: 3 amps

•

OPERATING TEMPERATURE:

221°F [105°C]

•

INSERTION FORCE: 180g/pin, based on 0.018 [0.46] dia. test lead

•

WITHDRAWAL FORCE: 90g/pin, based on 0.018 [0.46] dia. test lead

•

NORMAL FORCE: 140g/pin, based on 0.018 [0.46] dia. test lead

•

ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] dia., 0.100-0.125 [2.54-3.18] long

ORDERING INFORMATION

XXX-518-X XXX

Plating

0 = Au Collet, Sn Shell

0TL = Au Collet, Sn/Pb Shell

Termination

0 = Surface Mount

Series

No. of Rows & Pins

1 + up to 40 = Single Row

2 + up to 40 = Dual Row

MOUNTING CONSIDERATIONS

•

SUGGESTED PCB PAD SIZE:

0.063 [1.60] dia.

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.

SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE

FURNISHED, DEPENDING ON QUANTITY.

ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS

WITHOUT NOTICE

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE

CONSIDERED UNCONTROLLED

2609 Bartram Road

•

Bristol, PA 19007-6810 USA

TEL 215-781-9956

•

FAX 215-781-9845

WWW.ARIESELEC.COM

•

INFO@ARIESELEC.COM

12019

Rev. 7.1

1 of 1

60-1518-10 Related Products

	60-1518-10	50-1518-10T
Description	IC u0026 Component Sockets DUAL ROW COLLET SOLDER TAIL 60 PINS	IC u0026 Component Sockets DUAL ROW COLLET SOLDER TAIL 50 PINS
Is it Rohs certified?	conform to	conform to
Maker	Aries Electronics	Aries Electronics
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	STANDARD: UL 94V-0	STANDARD: UL 94V-0
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	TIN (200) OVER NICKEL (50)
Contact material	BRASS	BRASS
Device slot type	IC SOCKET	IC SOCKET
Type of equipment used	DIP60	DIP52
Shell material	POLYAMIDE46	NYLON46
JESD-609 code	e3	e3
Manufacturer's serial number	518	518
Number of contacts	60	50
