35183-0417 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 35183-0417

35183-0417: DescriptionHeaders u0026 Wire Housings HSG 351830417; CategoryThe connector The connector; File Size29KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

35183-0417 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35183-0417	-	-	View	Buy Now

35183-0417 Overview

Headers u0026 Wire Housings HSG 351830417

35183-0417 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Is Samacsys	N
Other features	MK2, COMPTABILE CONTACTS: 35716-0110; 35716-0310; 35716-0190; 35716-0193
body width	0.299 inch
subject depth	0.906 inch
body length	1.26 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	19.5712 N
Insulation resistance	100000000 Ω
Insulator color	GRAY
insulator material	POLYPHENYLENE OXIDE
MIL compliance	NO
Manufacturer's serial number	35183
Plug contact pitch	0.315 inch
Plug information	35309-0410
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
polarization key	POLAR PIN POSITION
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	NORYL
Termination type	CRIMP
Total number of contacts	4
UL Flammability Code	94V-1
Evacuation force-minimum value	5.7824 N
Base Number Matches	1

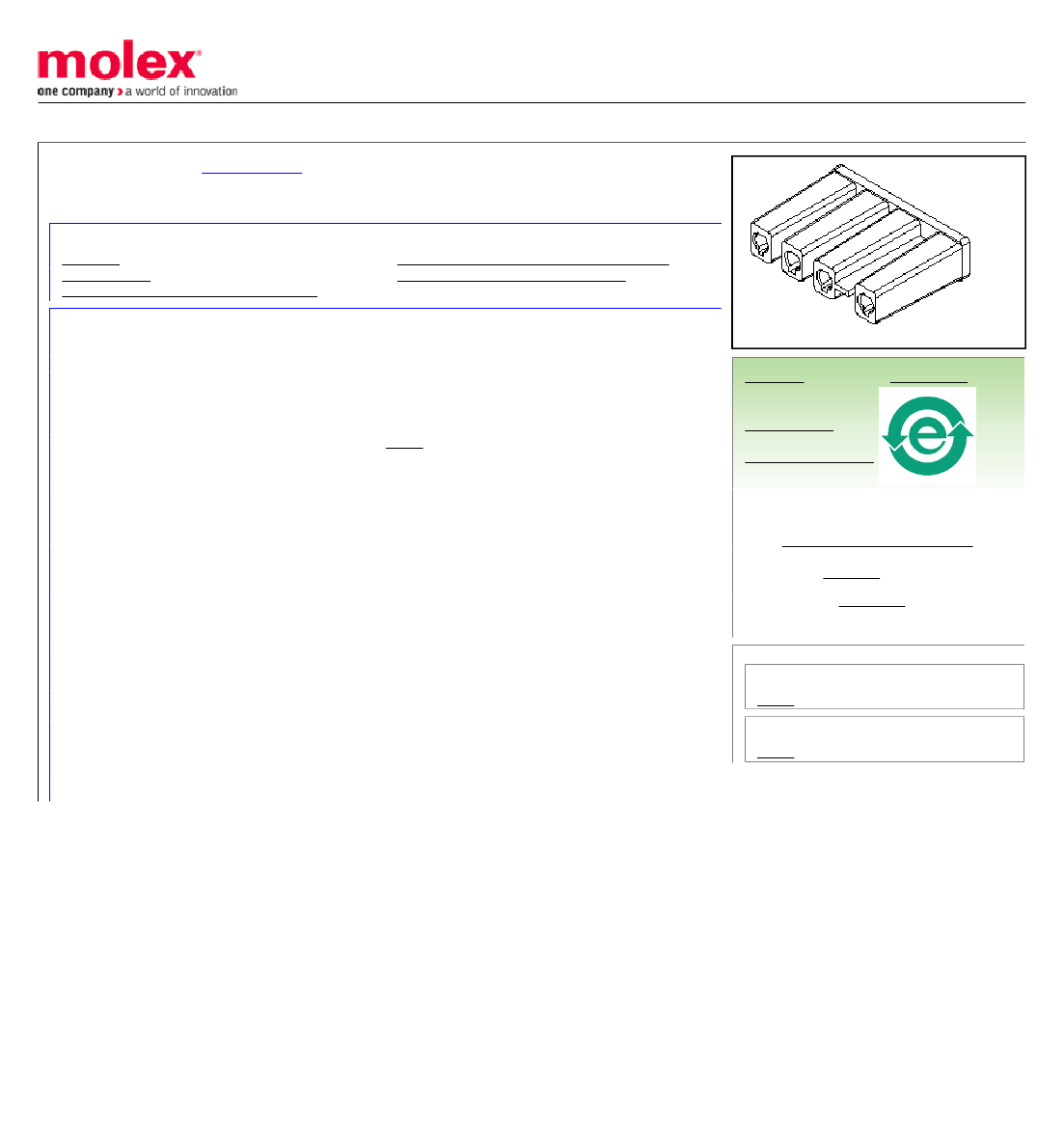

Preview

Download Datasheet

View All

This document was generated on 07/03/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

35183-0417

Active

8.00/10.00mm Pitch, 2.36 Dia. Pin Housing, 4 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-35183-001 (PDF)

Packaging Specification PK-35183-001 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

TUV

LR19980

R72081037

E29179

Series

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Low-Halogen

China RoHS

General

Product Family

Series

Application

Product Name

UPC

Crimp Housings

35183

Power, Wire-to-Wire

N/A

800753876941

Physical

Circuits (maximum)

Flammability

Gender

Glow-Wire Compliant

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Temperature Range - Operating

94V-1

Female

2.453/g

Bag

10.00mm, 8.00mm

-25°C to +85°C

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

PK-35183-001

PS-35183-001

SD-35183-041

Search Parts in this Series

35183Series

Use With

35716

This document was generated on 07/03/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

35183-0417 Related Products

	35183-0417	35183-0117	35183-0217
Description	Headers u0026 Wire Housings HSG 351830417	Headers u0026 Wire Housings 6.35 SAFE LOCK RECP LOCK RECP HSG /001/	Headers u0026 Wire Housings 2.36 HSG 2P
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown
Other features	MK2, COMPTABILE CONTACTS: 35716-0110; 35716-0310; 35716-0190; 35716-0193	MK2, COMPTABILE CONTACTS: 35716-0110; 35716-0310; 35716-0190; 35716-0193	POLARIZED
body width	0.299 inch	0.299 inch	0.299 inch
subject depth	0.906 inch	0.906 inch	0.906 inch
body length	1.26 inch	0.236 inch	0.622 inch
Body/casing type	PLUG	PLUG	PLUG
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V
Durability	30 Cycles	30 Cycles	30 Cycles
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
maximum insertion force	19.5712 N	19.5712 N	19.5712 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	GRAY	GRAY	GRAY
insulator material	POLYPHENYLENE OXIDE	POLYPHENYLENE OXIDE	POLYPHENYLENE OXIDE
MIL compliance	NO	NO	NO
Manufacturer's serial number	35183	35183	35183
Plug information	35309-0410	35309-0110	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation type	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Rated current (signal)	7 A	7 A	7 A
Guideline	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	NORYL	POLYPHENYLENE OXIDE	POLYPHENYLENE OXIDE
Termination type	CRIMP	CRIMP	CRIMP
Total number of contacts	4	1	2
UL Flammability Code	94V-1	94V-1	94V-1
Evacuation force-minimum value	5.7824 N	5.7824 N	5.7824 N
Base Number Matches	1	1	1
Plug contact pitch	0.315 inch	-	0.394 inch
