660-008M16S5-60: DescriptionCircular MIL Spec Tools, Hardware u0026 Accessories PLUG CVR #8 SASH CHN CRES PASS SPLT RING; CategoryThe connector; File Size53KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

660-008M16S5-60 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	660-008M16S5-60	-	-	View	Buy Now

660-008M16S5-60 Overview

Circular MIL Spec Tools, Hardware u0026 Accessories PLUG CVR #8 SASH CHN CRES PASS SPLT RING

660-008M16S5-60 Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Tools, Hardware & Accessories
Manufacturer	Glenair
RoHS	Details
Product	Accessories
Type	Plug Cover
Factory Pack Quantity	1

Preview

Download Datasheet

View All

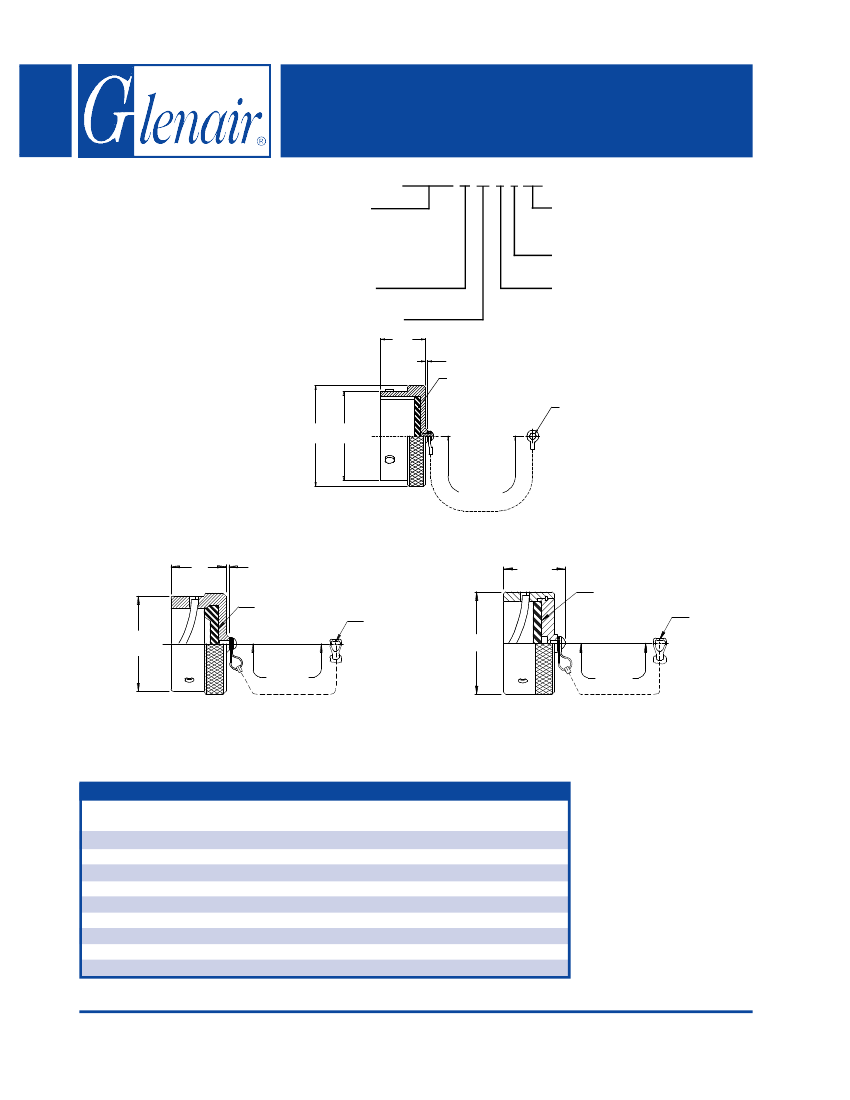

66 & 78

MIL-C-26482

G

J

.047 (1.2) Max

Gasket

H

Length

660-008 (Plug) - 660-009 (Receptacle)

661-001 (EMI Receptacle)

Protective Covers

MIL-C-26482

660-008 M 20 S 6 -04

Basic Part No.

660-008 Plug

660-009 Receptacle

661-001 Receptacle

Finish (Table II)

Shell Size (Table X)

F

.047 (1.2) Max

Gasket

Att. Type

(Table III)

Ring or Eyelet Dash No.

(Tables IV, V, VI, VII)

Attachment Length (in inches)

Attachment Type (Table III)

E

Length

660-008 Plug Cover

.800

(20.3)

Max

Gasket

Att. Type

(Table III)

Att. Type

(Table III)

Length

H

660-009 Receptacle Cover

661-001 EMI/RFI Receptacle Cover

Shell

Size

08

10

12

14

16

18

20

22

24

TABLE X: SHELL SIZE DIMENSIONS

G Dia

F

E

H Dia

Max

Dia

Max

.719 (18.3)

.473 (12.0) .562 (14.3)

.734 (18.6)

.844 (21.4)

.590 (15.0) .562 (14.3)

.859 (21.8)

.750 (19.1) .562 (14.3) 1.000 (25.4) 1.000 (25.4)

.875 (22.2) .562 (14.3) 1.125 (28.6) 1.125 (28.6)

1.000 (25.4) .562 (14.3) 1.250 (31.8) 1.250 (31.8)

1.125 (28.6) .562 (14.3) 1.375 (34.9) 1.375 (34.9)

1.250 (31.8) .625 (15.9) 1.500 (38.1) 1.500 (38.1)

1.375 (34.9) .625 (15.9) 1.625 (41.3) 1.625 (41.3)

1.500 (38.1) .658 (16.7) 1.750 (44.5) 1.750 (44.5)

CAGE Code 06324

J

Max

.562 (14.3)

.602 (15.3)

See inside back

cover fold-out or

page 14 for Table II.

Metric dimensions

(mm) are indicated in

parentheses.

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 66 and 78 - Page 6
