with Strain Relief
Type E - Self-Locking - Rotatable Coupling - Split Shell
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.

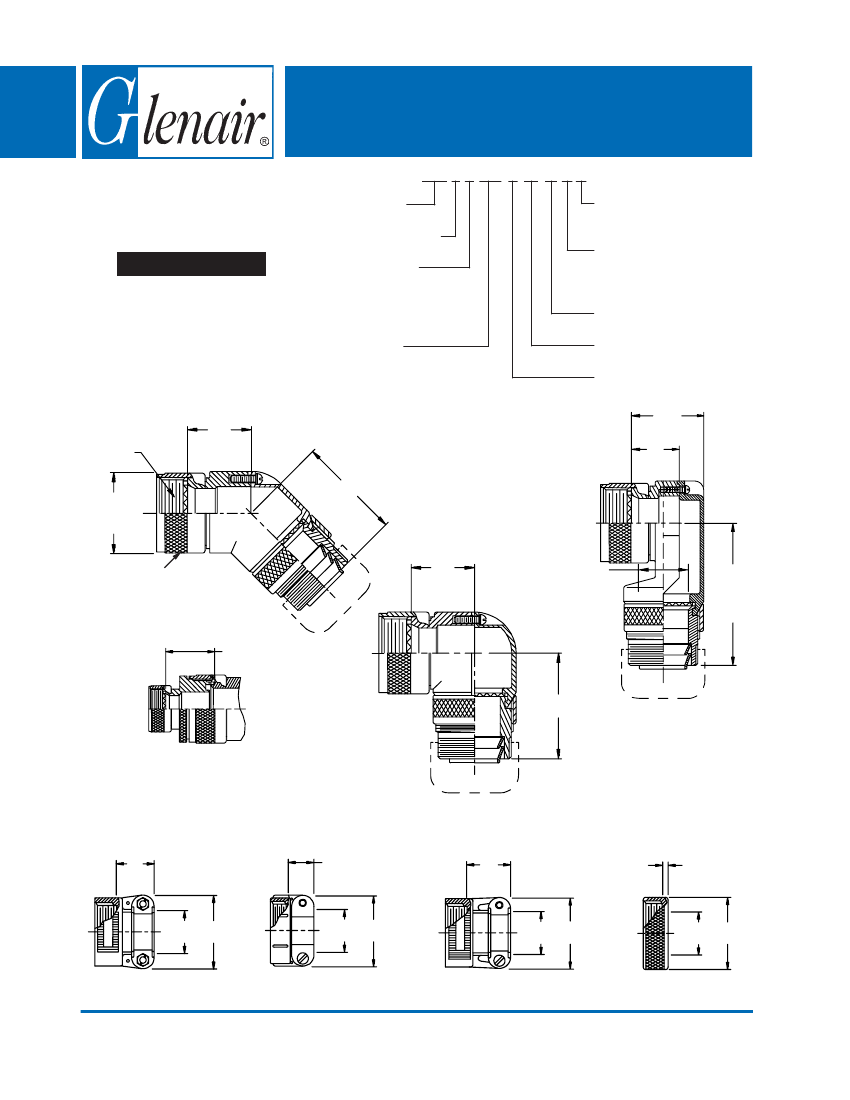

TABLE III: ELBOW DIMENSIONS
Shell
F
Size
Max
08/09 .596 (15.1)
10/11 .656 (16.7)
12/13 .716 (18.2)
14/15 .776 (19.7)
16/17 .836 (21.2)
18/19 .906 (23.0)
20/21 .976 (24.8)
22/23 1.036 (26.3)
24/25 1.096 (27.8)
G
Max
1.590 (40.4)
1.650 (41.9)
1.720 (43.7)
1.750 (44.5)
1.850 (47.0)
1.910 (48.5)
1.970 (50.0)
2.030 (51.6)
2.090 (53.1)
H
Max
.836 (21.2)
.906 (23.0)
.966 (24.5)
1.026 (26.1)
1.086 (27.6)
1.156 (29.4)
1.216 (30.9)
1.276 (32.4)
1.336 (33.9)
J
Max
1.530 (38.9)
1.590 (40.4)
1.660 (42.2)
1.690 (42.9)
1.790 (45.5)
1.850 (47.0)
1.910 (48.5)
1.970 (50.0)
2.030 (51.6)
K
Ref
.496 (12.6)
.426 (10.8)
.426 (10.8)
.436 (11.1)
.576 (14.6)
.796 (20.2)
.796 (20.2)
.696 (17.7)
.696 (17.7)
L
Max
1.920 (48.8)
2.080 (52.8)
2.080 (52.8)
2.150 (54.6)
2.200 (55.9)
2.230 (56.6)
2.230 (56.6)
2.380 (60.5)
2.380 (60.5)
M
Function C Max
Max
Wire Bundle
.837 (21.3)
.250 (6.4)
.887 (22.5)
.375 (9.5)
.887 (22.5)
.375 (9.5)
.987 (25.1)
.500 (12.7)
1.137 (28.9)
.625 (15.9)
1.337 (34.0)
.625 (15.9)
1.337 (34.0)
.625 (15.9)
1.337 (34.0)
.750 (19.1)
1.337 (34.0)
.750 (19.1)
TABLE X: CABLE ENTRY
Dash
T
V
Cable Range
No.
Max
Max
Min
Max
04
.780 (19.8)
.957 (24.3)
.125 (3.2) .312 (7.9)
06
.780 (19.8) 1.145 (29.1)
.250 (6.4) .437 (11.1)
08
.780 (19.8) 1.332 (33.8)
.312 (7.9) .562 (14.3)
10
.780 (19.8) 1.332 (33.8)
.350 (8.9) .625 (15.9)
12
.811 (20.6) 1.551 (39.4)
.500 (12.7) .750 (19.1)
16
.905 (23.0) 1.770 (45.0)
.625 (15.9) .937 (23.8)
20
1.092 (27.7) 2.113 (53.7)
.875 (22.2) 1.250 (31.8)
24
1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
28
1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
32
1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
3.
4.
5.
6.
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
M
NF
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
1. When maximum cable entry (page 21) is
exceeded, Style 2 will be supplied (not avail-
able in Function C). Dimensions F, G, H and
J will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in
parentheses.
Cable range is defined as the accommodations range for the wire bundle or cable. Dimensions shown are not
intended for inspection criteria.
Consult factory for available sizes of 45° (Symbol F).
Designate termination symbol T for 3 ring termination of individual and overall braid. Designate D for standard
2 ring termination of individual or overall braid.
Angular function "C", low-profile split elbow, not available with "S" connector designator.
TABLE XI: CABLE ENTRY
Dash
W
X
Y
Z
Cable Range
No.
Max
Max
Max
Max
Min **
Max
03* .437 (11.1) .760 (19.3) .843 (21.4)
.630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0)
.755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8)
.942 (23.9) .281 (7.1) .438 (11.1)
08
.563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10
.563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12
.563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16
.656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20
.656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24
.656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp.
** Not Applicable Style D
© 2005 Glenair, Inc.
CAGE Code 06324
Rev. 06.01.15
Printed in U.S.A.
