M80-8820242 |
M80-8820245 |
| Description |

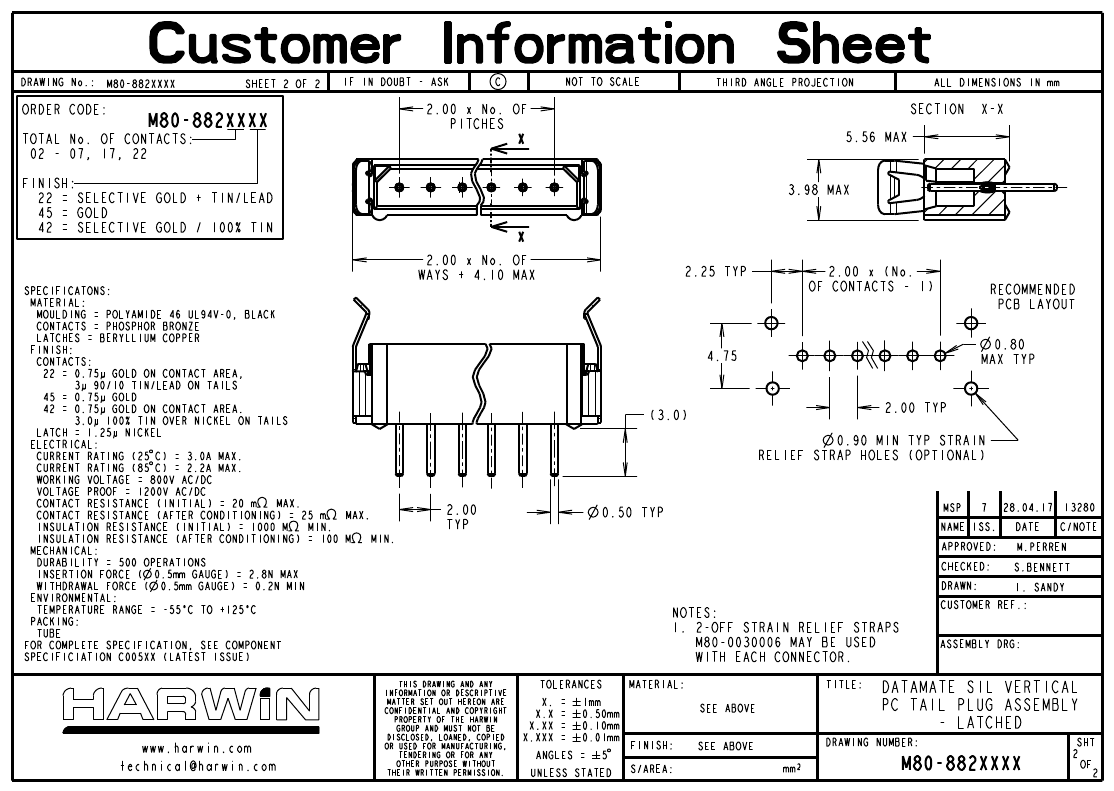

Headers u0026 Wire Housings 2 POS SIL MALE VERT LATCHED TIN |
Headers u0026 Wire Housings |
| Is it lead-free? |
Lead free |
Lead free |
| Is it Rohs certified? |
conform to |
conform to |
| package instruction |
ROHS COMPLIANT |
ROHS COMPLIANT |
| Reach Compliance Code |
compliant |
compliant |
| Other features |
LATCHED |
LATCHED |
| body width |
0.156 inch |
0.156 inch |
| subject depth |
0.218 inch |
0.218 inch |
| body length |
0.319 inch |
0.319 inch |
| Body/casing type |
PLUG |
PLUG |
| Connector type |
BOARD CONNECTOR |
BOARD CONNECTOR |
| Contact to complete cooperation |
GOLD (30) |
NOT SPECIFIED |
| Contact completed and terminated |
Tin (Sn) - with Nickel (Ni) barrier |
Gold (Au) |
| Contact point gender |
MALE |
MALE |
| Contact material |
NOT SPECIFIED |
NOT SPECIFIED |
| contact mode |
RECTANGULAR |
RECTANGULAR |
| Contact resistance |
25 mΩ |
25 mΩ |
| Contact style |
RND PIN-SKT |
RND PIN-SKT |
| DIN compliance |
NO |
NO |
| Durability |
500 Cycles |
500 Cycles |
| Filter function |
NO |
NO |
| IEC compliance |
NO |
NO |
| maximum insertion force |
2.78 N |
2.78 N |
| Insulation resistance |
100000000 Ω |
100000000 Ω |
| Insulator color |
BLACK |
BLACK |
| insulator material |
POLYAMIDE |
POLYAMIDE |
| JESD-609 code |
e3 |
e4 |
| MIL compliance |
NO |
NO |
| Plug contact pitch |
0.079 inch |
0.079 inch |
| Mixed contacts |
NO |
NO |
| Installation option 1 |
LOCKING |
LOCKING |
| Installation option 2 |
LATCH |
LATCH |
| Installation method |
STRAIGHT |
STRAIGHT |
| Installation type |
BOARD |
BOARD |
| Number of connectors |
ONE |
ONE |
| PCB row number |
1 |
1 |
| Number of rows loaded |
1 |
1 |
| Maximum operating temperature |
125 °C |
125 °C |
| Minimum operating temperature |
-55 °C |
-55 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
| PCB contact pattern |
RECTANGULAR |
RECTANGULAR |
| Plating thickness |
30u inch |
30u inch |
| Rated current (signal) |
3 A |
3 A |
| Guideline |
UL |
UL |
| reliability |
COMMERCIAL |
COMMERCIAL |
| Terminal length |
0.118 inch |
0.118 inch |
| Terminal pitch |
2 mm |
2 mm |
| Termination type |
SOLDER |
SOLDER |
| Total number of contacts |
2 |
2 |
| UL Flammability Code |
94V-0 |
94V-0 |
| Evacuation force-minimum value |
.199882 N |
.199882 N |
