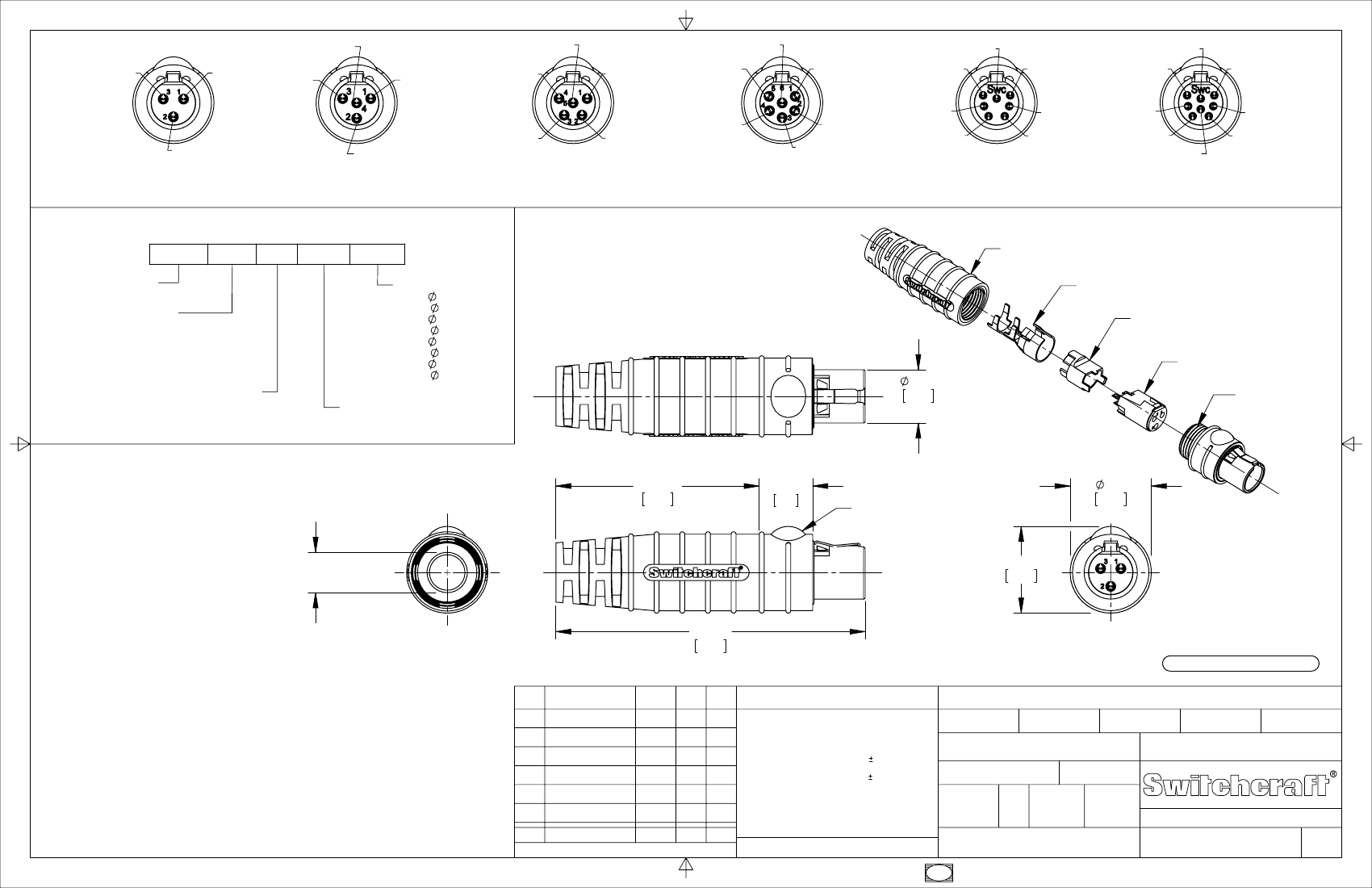

TA3FS SERIES
3 PIN
TA4FS SERIES
4 PIN
2
TA5FS SERIES
5 PIN
TA6FS SERIES
6 PIN
TA7FS SERIES
7 PIN
AS VIEWED FROM FRONT MATING SIDE
STRAIN RELIEF
HANDLE
TA8FS SERIES
8 PIN
T A
SERIES
NUMBER OF CONTACTS
3
- 3 PIN 22 AWG PINS
4
- 4 PIN 22 AWG PINS
5
- 5 PIN 22 AWG PINS
6
- 6 PIN 22 AWG PINS
7
- 7 PIN 28 AWG PINS
8
- 8 PIN 28 AWG PINS
F
S
CABLE SIZE
11
- 0.100 - 0.120
[ 2.54 - 3.05]
15
- 0.140 - 0.160
[ 3.56 - 4.06]
20
- 0.190 - 0.210
[ 4.83 - 5.33]
25
- 0.230 - 0.260
[ 5.84 - 6.60]
S
- SEALED VERSION
CABLE CLAMP
INSULATOR
PIN & BASE ASSEMBLY
0.330
8.38
REF
FEMALE HOUSING
WITH BUTTON
SEAL BOOT
GENDER
F
-FEMALE
PART NUMBER ORDERING CODE
1.26
32.0
HANDLE
0.33
8.4
LATCH
RELEASE BUTTON
0.54
13.6
0.50
12.8
CABLE SIZE
SEE PART NUMBER
ORDERING CODE
1.92
48.7
NOTES:
1. MATERIALS:
HOUSING - COPPER ALLOY, NICKEL PLATED
PIN CONTACTS - COPPER ALLOY, SILVER PLATED
LATCH BUTTON - RIGID THERMOPLASTIC, BLACK
PIN INSULATOR - RIGID THERMOPLASTIC, DARK BROWN
LATCH SPRING - COPPER ALLOY, NICKEL PLATED
CABLE CLAMP - STEEL, TIN PLATED
BUTTON SEAL BOOT - THERMOPLASTIC RUBBER, BLACK
INSERT MOLDED HANDLE - THERMOPLASTIC RUBBER OVER
RIGID THERMOPLASTIC, BLACK
2. THIS PRODUCT IS RoHS COMPLIANT.
TA3FS SHOWN
UNLESS OTHERWISE SPECIFIED
1. ALL DIMENSIONS IN INCHES [mm]
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
B
A
REV
SIZE
FINISH
SPEC No.
FIRST USED ON
DATE DRAWN
BY
CHKD
SCALE
WIDTH
MULT
CUSTOMER DRAWING
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
LBS/M
MATERIAL
SPEC No.
TEMPER
0.02 [0.5]
0.005 [0.13]
2:1
27629
27552
ECO NUMBER
12-18-15
8-14-15
DATE
TO
TO
BY
TJK
TJK
APVD
1/29/13
AB
AB
1/29/13
TJK
9-28-15
PART No.
APVD
SHEET
REVISIONS
DO NOT SCALE DRAWING
NAME
SEALED TINI Q-G
FEMALE, ROHS
1
OF
1
REV
TA_FS SERIES
B
SolidWorks CAD File
