5962-8850502RX: DescriptionIC 1-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP20, 1.060 X 0.310 INCH, SIDE BRAZED, CERAMIC, DIP-20, Analog to Digital Converter; CategoryAnalog mixed-signal IC converter; File Size100KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-8850502RX Overview

IC 1-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP20, 1.060 X 0.310 INCH, SIDE BRAZED, CERAMIC, DIP-20, Analog to Digital Converter

5962-8850502RX Parametric

Parameter Name	Attribute value
Maker	ADI
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
Maximum conversion time	30 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-CDIP-T20
Nominal negative supply voltage	-15 V
Number of analog input channels	1
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY
Output format	PARALLEL, 8 BITS
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Qualified
Maximum seat height	5.08 mm
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

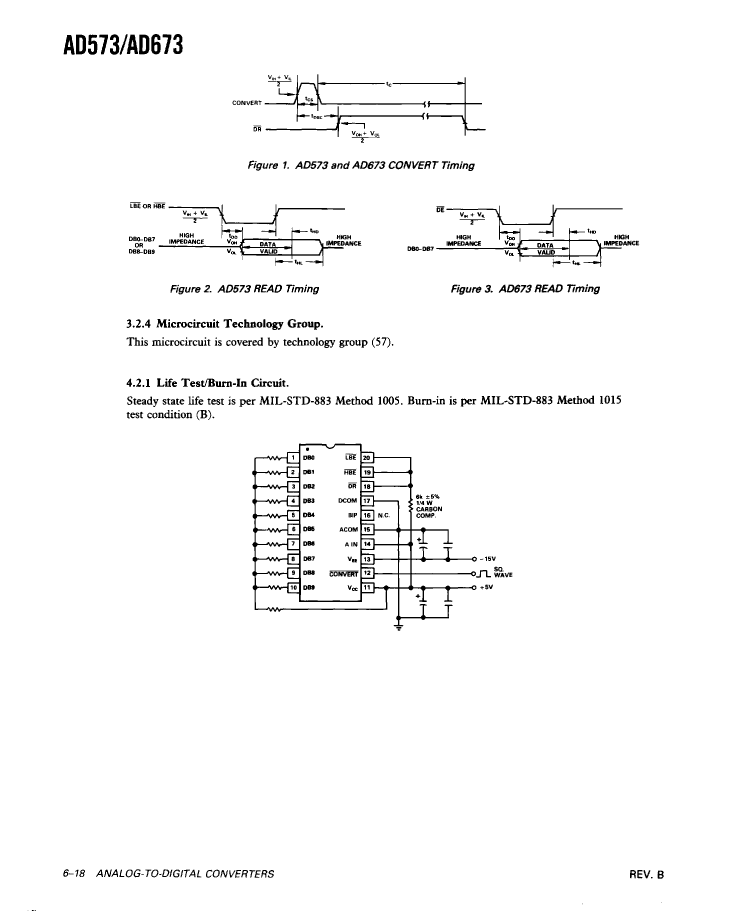

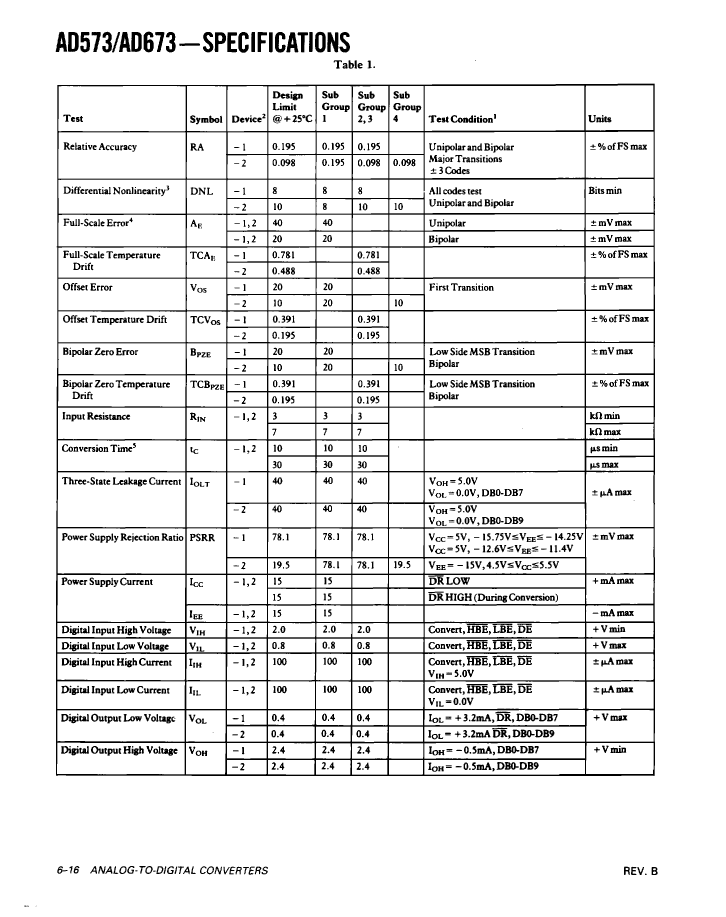

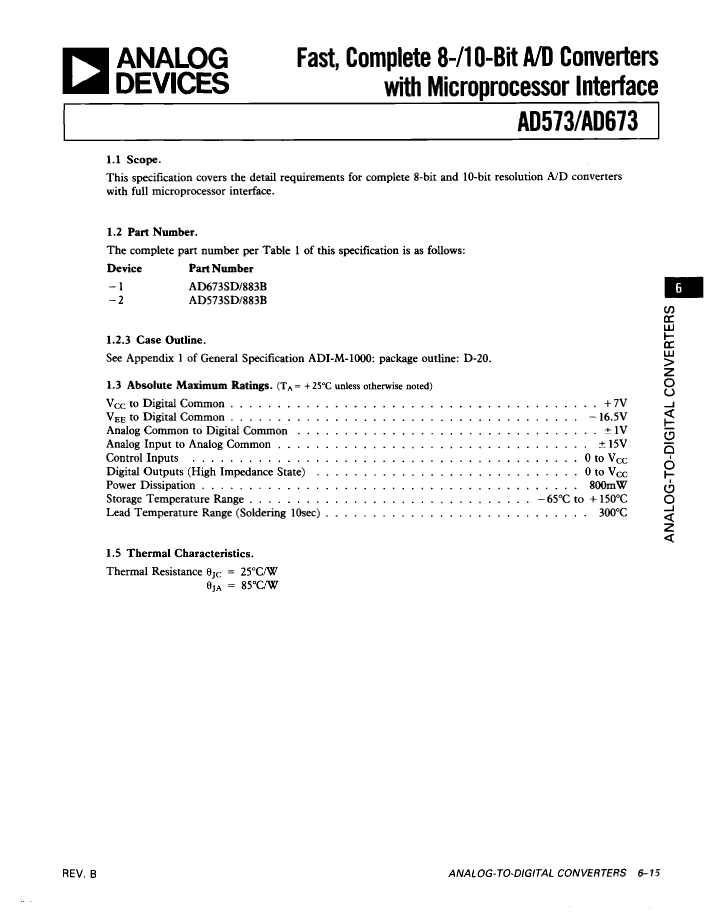

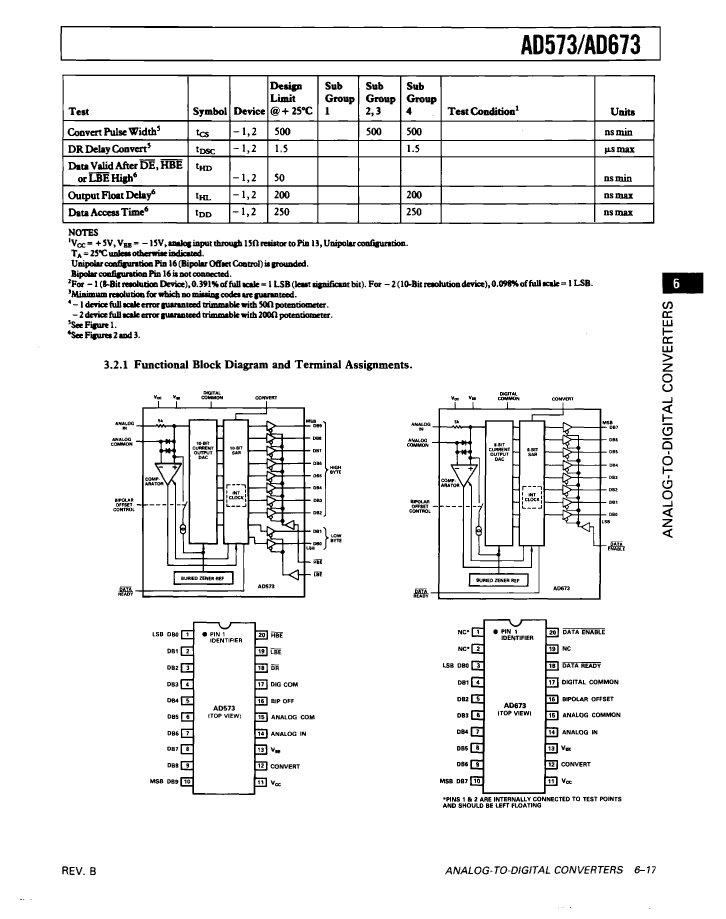

Preview

Download Datasheet

View All

5962-8850502RX Related Products

	5962-8850502RX	5962-8850501RX
Description	IC 1-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP20, 1.060 X 0.310 INCH, SIDE BRAZED, CERAMIC, DIP-20, Analog to Digital Converter	IC 1-CH 10-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP20, 1.060 X 0.310 INCH, SIDE BRAZED, CERAMIC, DIP-20, Analog to Digital Converter
Maker	ADI	ADI
Parts packaging code	DIP	DIP
package instruction	DIP,	DIP,
Contacts	20	20
Reach Compliance Code	compliant	compliant
ECCN code	3A001.A.2.C	3A001.A.2.C
Maximum conversion time	30 µs	30 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-CDIP-T20	R-CDIP-T20
Nominal negative supply voltage	-15 V	-15 V
Number of analog input channels	1	1
Number of digits	8	10
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output bit code	BINARY	BINARY
Output format	PARALLEL, 8 BITS	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Qualified	Qualified
Maximum seat height	5.08 mm	5.08 mm
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm
Base Number Matches	1	1
