PD - 95501A
IRFP064VPbF
l
l
l
l
l
l
l
l
Advanced Process Technology
Ultra Low On-Resistance
Dynamic dv/dt Rating
175°C Operating Temperature
Fast Switching
Fully Avalanche Rated
Optimized for SMPS Applications
Lead-Free
HEXFET
®
Power MOSFET
D
V
DSS
= 60V
R
DS(on)
= 5.5mΩ
G
S
I
D
= 130A
Description
Advanced HEXFET
®
Power MOSFETs from International
Rectifier utilize advanced processing techniques to achieve
extremely low on-resistance per silicon area. This benefit,
combined with the fast switching speed and ruggedized
device design that HEXFET power MOSFETs are well
known for, provides the designer with an extremely efficient
and reliable device for use in a wide variety of applications.
The TO-247 package is preferred for commercial-industrial
applications where higher power levels preclude the use
of TO-220 devices. The TO-247 is similar but superior to
the earlier TO-218 package because of its isolated
mounting hole.
TO-247AC
Absolute Maximum Ratings
Parameter
I
D
@ T
C
= 25°C
I
D
@ T
C
= 100°C
I
DM
P
D
@T
C
= 25°C
V
GS
I
AR
E
AR
dv/dt
T
J
T
STG
Continuous Drain Current, V
GS
@ 10V
Continuous Drain Current, V
GS
@ 10V
Pulsed Drain Current
Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Avalanche Current
Repetitive Avalanche Energy
Peak Diode Recovery dv/dt
Operating Junction and
Storage Temperature Range
Soldering Temperature, for 10 seconds
Mounting torque, 6-32 or M3 srew
Max.
130
95
520
250
1.7
± 20
130
25
4.7
-55 to + 175
300 (1.6mm from case )
10 lbf•in (1.1N•m)
Units
A
W
W/°C
V
A
mJ
V/ns
°C
Thermal Resistance
Parameter
R
θJC
R
θCS
R
θJA
Junction-to-Case
Case-to-Sink, Flat, Greased Surface
Junction-to-Ambient
Typ.
–––
0.24
–––
Max.
0.60
–––
40
Units
°C/W
www.irf.com
1
08/09/10
IRFP064VPbF
Electrical Characteristics @ T
J
= 25°C (unless otherwise specified)
V
(BR)DSS
∆V
(BR)DSS
/∆T
J
R
DS(on)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
L
D
L
S
C
iss
C
oss
C
rss
E
AS
Parameter
Drain-to-Source Breakdown Voltage
Breakdown Voltage Temp. Coefficient
Static Drain-to-Source On-Resistance
Gate Threshold Voltage
Forward Transconductance
Drain-to-Source Leakage Current
Gate-to-Source Forward Leakage
Gate-to-Source Reverse Leakage
Total Gate Charge
Gate-to-Source Charge
Gate-to-Drain ("Miller") Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Internal Drain Inductance
Internal Source Inductance
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Single Pulse Avalanche Energy
Min.
60
–––
–––
2.0
88
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
Max. Units
Conditions
–––
V
V
GS
= 0V, I
D
= 250µA
––– V/°C Reference to 25°C, I
D
= 1mA
5.5
mΩ V
GS
= 10V, I
D
= 78A
4.0
V
V
DS
= V
GS
, I
D
= 250µA
–––
S
V
DS
= 25V, I
D
= 78A
25
V
DS
= 60V, V
GS
= 0V
µA
250
V
DS
= 48V, V
GS
= 0V, T
J
= 150°C
100
V
GS
= 20V
nA
-100
V
GS
= -20V
260
I
D
= 130A
68
nC
V
DS
= 48V
94
V
GS
= 10V, See Fig. 6 and 13
–––
V
DD
= 30V
–––
I
D
= 130A
ns
–––
R
G
= 4.3Ω
–––
V
GS
= 10V, See Fig. 10
Between lead,
5.0 –––
6mm (0.25in.)
nH
G
from package
13 –––
and center of die contact
6760 –––
V
GS
= 0V
1330 –––
V
DS
= 25V
290 –––
pF
ƒ = 1.0MHz, See Fig. 5
1880
310 mJ I
AS
= 130A, L = 37µH
Typ.
–––
0.067
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
26
200
100
150
D
S
Source-Drain Ratings and Characteristics
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
Notes:
Parameter
Continuous Source Current
(Body Diode)
Pulsed Source Current
(Body Diode)
Diode Forward Voltage
Reverse Recovery Time
Reverse Recovery Charge
Forward Turn-On Time
Min. Typ. Max. Units
Conditions
D
MOSFET symbol
––– ––– 130
showing the
A
G
integral reverse
––– ––– 520
S
p-n junction diode.
––– ––– 1.2
V
T
J
= 25°C, I
S
= 130A, V
GS
= 0V
––– 94 140
ns
T
J
= 25°C, I
F
= 130A
––– 360 540
nC di/dt = 100A/µs
Intrinsic turn-on time is negligible (turn-on is dominated by L
S
+L
D
)
Repetitive rating; pulse width limited by
Starting T
J
= 25°C, L = 260µH
T
J
≤
175°C
max. junction temperature. (See fig. 11)
R
G
= 25Ω, I
AS
= 50A. (See Figure 12)
Pulse width
≤
400µs; duty cycle
≤
2%.
This is a typical value at device destruction and represents
I
SD
≤
130A, di/dt
≤
230A/µs, V
DD
≤
V
(BR)DSS
,
operation outside rated limits.
This is a calculated value limited to T
J
= 175°C .
Calculated continuous current based on maximum allowable
junction temperature. Package limitation current is 90A.
2
www.irf.com
IRFP064VPbF
1000
VGS
TOP
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
BOTTOM 4.5V
1000
I
D
, Drain-to-Source Current (A)
100
I
D
, Drain-to-Source Current (A)
100
VGS
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
BOTTOM 4.5V
TOP
4.5V
10
10
4.5V
20µs PULSE WIDTH
T
J
= 25
°
C
1
10
100
1
0.1
1
0.1
20µs PULSE WIDTH
T
J
= 175
°
C
1
10
100
V
DS
, Drain-to-Source Voltage (V)
V
DS
, Drain-to-Source Voltage (V)

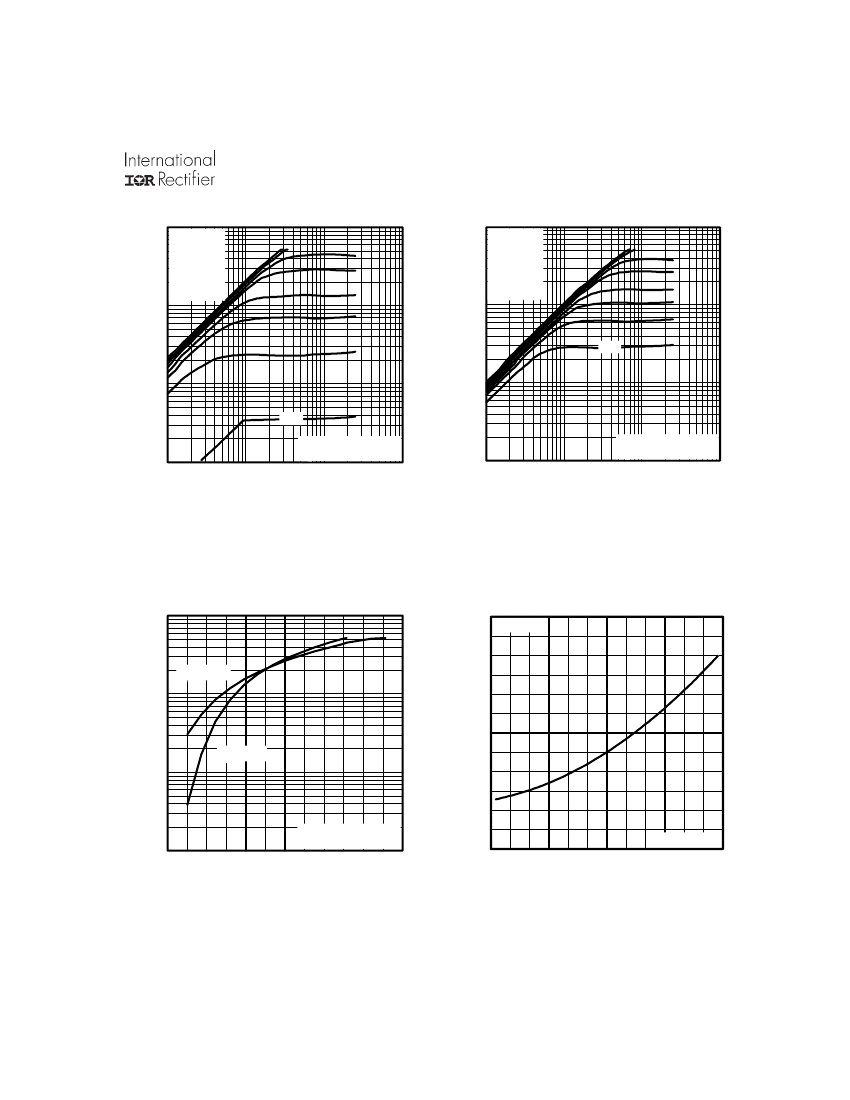

Fig 1.
Typical Output Characteristics
Fig 2.
Typical Output Characteristics
1000
3.0
R
DS(on)
, Drain-to-Source On Resistance
(Normalized)
I
D
= 70A
I
D
, Drain-to-Source Current (A)
2.5
T
J
= 175
°
C
100
2.0
1.5
T
J
= 25
°
C
10
1.0
0.5
1
4.0
V DS = 50V
20µs PULSE WIDTH
5.0
6.0
7.0
8.0
9.0
10.0
0.0
-60 -40 -20 0
V
GS
= 10V
20 40 60 80 100 120 140 160 180
V
GS
, Gate-to-Source Voltage (V)
T
J
, Junction Temperature (
°
C)
Fig 3.
Typical Transfer Characteristics
Fig 4.
Normalized On-Resistance
Vs. Temperature
www.irf.com
3
IRFP064VPbF
12000
20
10000
V
GS
, Gate-to-Source Voltage (V)
VGS = 0V,
f = 1 MHZ
Ciss = C + Cgd, C
gs
ds SHORTED
Crss = C
gd
Coss = C + Cgd
ds
I
D
= 130A
V
DS
= 48V
V
DS
= 30V
16
C, Capacitance(pF)
8000
Ciss
6000
12
8
4000
2000
Coss
Crss
1
10
100
4
0
0
FOR TEST CIRCUIT
SEE FIGURE 13
0
50
100
150
200
250
300
VDS, Drain-to-Source Voltage (V)
Q
G
, Total Gate Charge (nC)
Fig 5.
Typical Capacitance Vs.
Drain-to-Source Voltage
Fig 6.
Typical Gate Charge Vs.
Gate-to-Source Voltage
1000
10000
I
SD
, Reverse Drain Current (A)
OPERATION IN THIS AREA
LIMITED BY R DS(on)
100
T
J
= 175
°
C
10
ID, Drain-to-Source Current (A)
1000
100
100µsec
1msec
Tc = 25°C
Tj = 175°C
Single Pulse
1
10
1
T
J
= 25
°
C
V
GS
= 0 V
0.4
0.8
1.2
1.6
2.0
2.4
10
10msec
100
1000
0.1
0.0
1
V
SD
,Source-to-Drain Voltage (V)
VDS , Drain-toSource Voltage (V)
Fig 7.
Typical Source-Drain Diode
Forward Voltage
Fig 8.
Maximum Safe Operating Area
4
www.irf.com
IRFP064VPbF
140
LIMITED BY PACKAGE
120
V
DS
V
GS
R
G
V
GS
Pulse Width
≤ 1
µs
Duty Factor
≤ 0.1 %
R
D
D.U.T.
+
I
D
, Drain Current (A)
100
80
60
40
20
0
-
V
DD
Fig 10a.
Switching Time Test Circuit
V
DS
90%
25
50
75
100
125
150
175
T
C
, Case Temperature ( ° C)

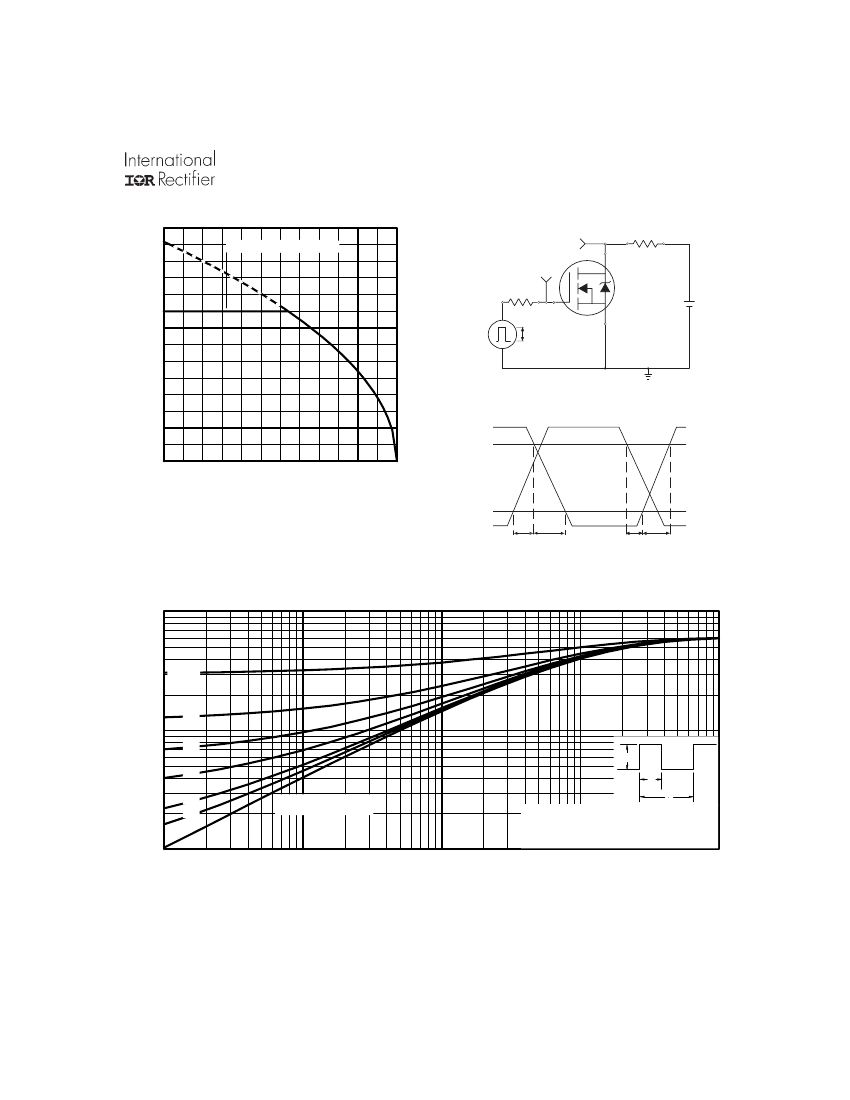

Fig 9.
Maximum Drain Current Vs.
Case Temperature
10%
V
GS
t
d(on)
t
r
t
d(off)
t
f
Fig 10b.
Switching Time Waveforms
1
Thermal Response (Z
thJC
)
D = 0.50
0.20
0.1
0.10
0.05
0.02
0.01
SINGLE PULSE
(THERMAL RESPONSE)
P
DM
t
1
t
2
Notes:
1. Duty factor D = t
1
/ t
2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.001
0.01
0.1
0.01
0.00001
0.0001
t
1
, Rectangular Pulse Duration (sec)
Fig 11.
Maximum Effective Transient Thermal Impedance, Junction-to-Case
www.irf.com
5
