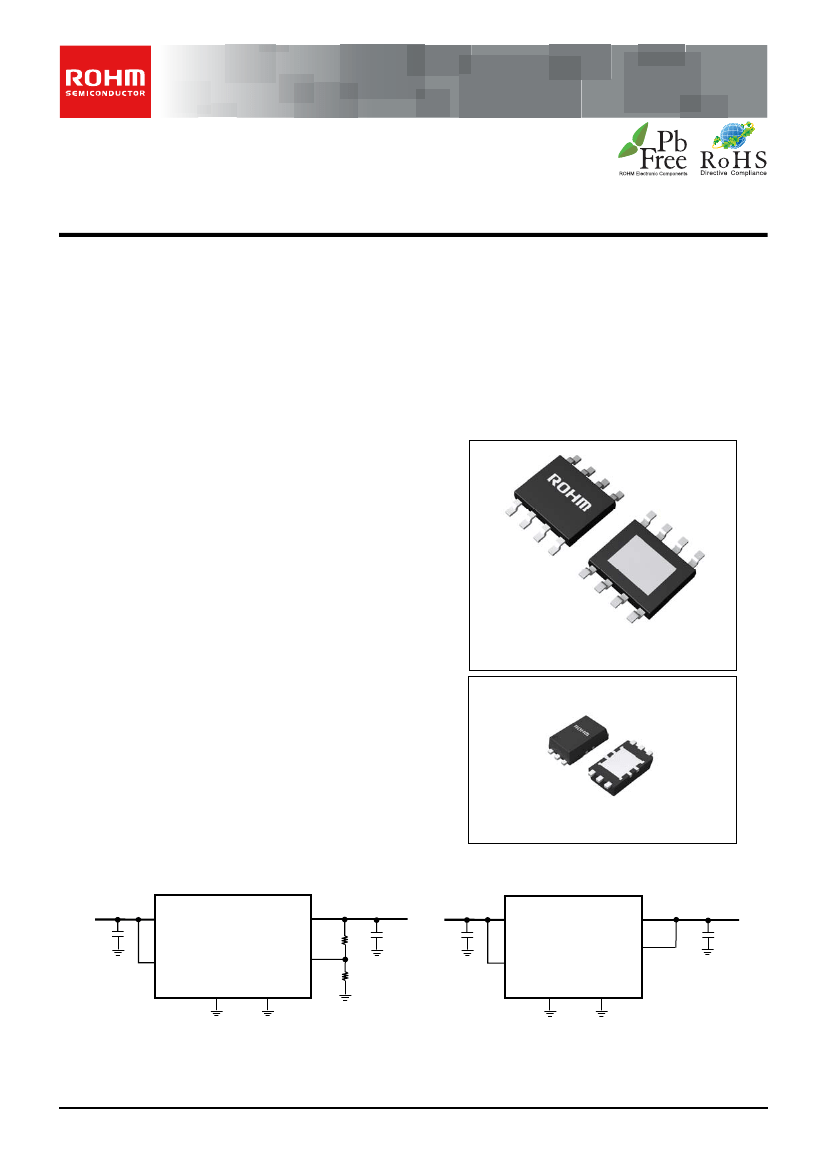

Datasheet
1A Variable / Fixed Output
LDO Regulators
BDxxIC0WEFJ / BDxxIC0WHFV
●General
Description
BDxxIC0W series devices are LDO regulators with an output current of 1.0A. The output accuracy is ±1% of the output
voltage. Both fixed and variable output voltage devices are available. The output voltage of the variable output voltage
device can be varied from 0.8 to 4.5V using external resistors. Various fixed output voltage devices that do not use external
resistors are also available. These LDO regulators are available in two package types: HTSOP-J8 (4.90mm x 6.00mm x
1.00mm) and HVSOF6 (1.60mm x 3.00mm x 0.75mm), and can be used in a wide variety of digital appliances. These
devices have built in over current protection to protect the device when output is shorted, 0µA shutdown mode and thermal
shutdown circuit to protect the device during over load conditions. These LDO regulators are usable with ceramic capacitors
that enable a smaller layout and longer life.
●Features
+/-1% output voltage accuracy
Built-in Over Current Protection circuit (OCP)
Built-in Thermal Shut Down circuit (TSD)
Zero µA Shutdown mode
●Key
Specifications
■
Input Power Supply Voltage range:
2.4V to 5.5V
■
Output Voltage range(Variable type):
0.8V to 4.5V
■
Output Voltage(Fixed type):
1.0V/1.2V/1.25V/1.5V
1.8V/2.5V/2.6V/3.0V/3.3V
(1.25V/2.6V:HVSOF6 only)
■
Output Current:
1.0A (Max.)
■
Shutdown Current:
0 µA (Typ.)
■
Operating Temperature Range:
-25 to +85℃
HTSOP-J8
●Package
HTSOP-J8
HVSOF6
(Typ.)
(Typ.)
(Max.)
4.90mm x 6.00mm x 1.00mm
1.60mm x 3.00mm x 0.75mm
HVSOF6
●Typical
Application Circuit
V
CC
C
IN
EN
GND
FIN
V
O
R
1
FB
R
2
C
IN
,C
OUT
: Ceramic Capacitor
V
CC
C
OUT
C
IN
EN
GND
FIN
V
O
V
O_S
C
OUT
C
IN
,C
OUT
: Ceramic Capacitor
Output voltage variable type
Output voltage fixed type
○Product
structure：Silicon monolithic integrated circuit
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
TSZ22111½14½001
○This
product is not designed with protection against radioactive rays.
1/23
TSZ02201-GAG0A600030-1-2
19.Aug.2015 Rev.004
BDxxIC0WEFJ / BDxxIC0WHFV
●Ordering
Information
Datasheet
B D
x
x
I
Input
voltage
range
:7V
C
0
Output
current
W
y
y
y
-
zz
Packaging and forming specification
Part
Output
Number voltage
Shutdown
mode
Package
00:Variable
10:1.0V
12:1.2V
1C:1.25V
15:1.5V
18:1.8V
25:2.5V
26:2.6V
30:3.0V
33:3.3V
C0:1.0A “W”：included EFJ : HTSOP-J8 E2 : Emboss tape reel(HTSOP-J8)
HFV : HVSOF6 GTR : Emboss tape reel(HVSOF6)
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
2/23
TSZ02201-GAG0A600030-1-2
19.Aug.2015 Rev.004
BDxxIC0WEFJ / BDxxIC0WHFV
●Block
Diagram
BD00IC0WEFJ / BD00IC0WHFV (Variable output voltage type)
Datasheet
V
CC
OCP
SOFT
START
V
O
FB
EN
TSD
GND
Fig.1 Block Diagram
●Pin
Configuration and Pin Description
(HTSOP-J8)
Pin No.
Pin name
Pin Function
1
V
O
Output pin
2
FB
Feedback pin
3
GND
GND pin
4
N.C
No Connect (Connect to GND or leave OPEN)
5
EN
Enable pin
6
N.C
No Connect (Connect to GND or leave OPEN)
7
N.C
No Connect (Connect to GND or leave OPEN)
8
V
CC
Input pin
Reverse
FIN
Substrate (Connect to GND)
(HVSOF6)
Pin No.
1
2
3
4
5
6
Reverse
V
O
FB
GND
N.C
1
2
3
4
8
7
6
5
V
CC
N.C
N.C
EN
Pin name
V
O
FB
GND
EN
N.C
V
CC
FIN
Pin Function
Output pin
Feedback pin
GND pin
Enable pin
No Connect (Connect to GND or leave OPEN)
Input pin
Substrate (Connect to GND)
Vo
FB
GND
1
2
3
6
5
4
Vcc
N.C
EN
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
3/23
TSZ02201-GAG0A600030-1-2
19.Aug.2015 Rev.004
BDxxIC0WEFJ / BDxxIC0WHFV
●Block
Diagram
BDxxIC0WEFJ / BDxxIC0WHFV (Fixed output voltage type)
Datasheet
V
CC
OCP
SOFT
START
V
O
EN
TSD
V
O_S
GND
Fig.2 Block Diagram
●Pin
Configuration and Pin Description
(HTSOP-J8)
Pin No.
Pin name
Pin Function
1
V
O
Output pin
2
V
O_S
Output voltage monitor pin
3
GND
GND pin
4
N.C
No Connect (Connect to GND or leave OPEN)
5
EN
Enable pin
6
N.C
No Connect (Connect to GND or leave OPEN)
7
N.C
No Connect (Connect to GND or leave OPEN)
8
V
CC
Input pin
Reverse
FIN
Substrate (Connect to GND)
(HVSOF6)
Pin No.
1
2
3
4
5
6
Reverse
V
O
V
O_S
GND
N.C
1
2
3
4
8
7
6
5
V
CC
N.C
N.C
EN
Pin name
V
O
V
O_S
GND
EN
N.C
V
CC
FIN
Pin Function
Output pin
Output voltage monitor pin
GND pin
Enable pin
No Connect (Connect to GND or leave OPEN)
Input pin
Substrate (Connect to GND)
V
O
V
O_S
GND
1
2
3
6
5
4
V
CC
N.C
EN
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
4/23
TSZ02201-GAG0A600030-1-2
19.Aug.2015 Rev.004
BDxxIC0WEFJ / BDxxIC0WHFV
●Absolute
Maximum Ratings
(Ta=25℃)
Parameter
Power supply voltage
EN voltage
Power dissipation
HTSOP-J8
HVSOF6
Symbol
V
CC
V
EN
Pd
Pd
Topr
Tstg
Tjmax
Ratings
-0.3 to 7.0 *
1
-0.3 to 7.0
2.11
*2
1.70
*3
-25 to +85
-55 to +150
+150
Unit
V
V
W
W
℃
℃
℃
Datasheet
Operating Temperature Range
Storage Temperature Range
Junction Temperature
*1 Not to exceed Pd
*2 Reduced by 16.9mW/℃ for each increase in Ta of 1℃ over 25℃. (when mounted on a board 70mm×70mm×1.6mm glass-epoxy board, two layer)
*3 Reduced by 13.6mW/
℃
for each increase in Ta of 1
℃
over 25
℃
. (when mounted on a board 70mm
×
70mm
×
1.6mm glass-epoxy board,
single-layer(copper foil are :51%))
●Recommended
Operating Ratings
(Ta=25℃)
Parameter
Input power supply voltage
EN voltage
Output voltage setting range
Output current
Symbol
V
CC
V
EN
V
O
I
O
Ratings
Min.
2.4
0.0
0.8
0.0
Max.
5.5
5.5
4.5
1.0
Unit
V
V
V
A
●Electrical
Characteristics
(Unless otherwise noted, Ta=25℃, EN=3V, V
CC
=3.3V, R1=16kΩ, R2=7.5kΩ)
Limits
Parameter
Symbol
Unit
Conditions
Min.
Typ.
Max.
Circuit current at shutdown mode
Bias current
Line regulation
Load regulation
Minimum dropout voltage1
Minimum dropout voltage2
Minimum dropout voltage3
Minimum dropout voltage4
Output reference voltage(variable type)
Output voltage(Fixed type)
EN Low voltage
EN High voltage
EN Bias current
I
STB
I
CC
Reg.Ii
Reg I
O
V
CO1
V
CO2
V
CO3
V
CO4
V
FB
V
O
V
EN_Low
V
EN_High
I
EN
-
-
-1
-1.5
-
-
-
-
0.792
Vo×0.99
0
2.4
1
0
250
-
-
0.10
0.20
0.30
0.40
0.800
Vo
-
-
3
5
500
1
1.5
0.15
0.30
0.45
0.60
0.808
Vo×1.01
0.8
5.5
9
µA
µA
%
%
V
V
V
V
V
V
V
V
µA
V
CC
=( V
O
+0.6V )→5.5V
I
O
=0→1.0A
V
CC
=3.3V, I
O
=250mA
V
CC
=3.3V, I
O
=500mA
V
CC
=3.3V, I
O
=750mA
V
CC
=3.3V, I
O
=1.0A
I
O
=0A
I
O
=0A
V
EN
=0V, OFF mode
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
5/23
TSZ02201-GAG0A600030-1-2
19.Aug.2015 Rev.004
