MPS6724RLRAG

Description
Darlington Transistors 1A 40V NPN
CategoryDiscrete semiconductor    The transistor
File Size55KB,5 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

MPS6724RLRAG Online Shopping

Suppliers Part Number Price MOQ In stock
MPS6724RLRAG - - View Buy Now

MPS6724RLRAG Overview

Darlington Transistors 1A 40V NPN

MPS6724RLRAG Parametric

Parameter NameAttribute value
Brand NameON Semiconductor
Is it lead-free?Lead free
MakerON Semiconductor
Parts packaging codeTO-92
package instructionCYLINDRICAL, O-PBCY-T3
Contacts3
Manufacturer packaging code29-10
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum collector current (IC)1 A
Collector-emitter maximum voltage40 V
ConfigurationDARLINGTON
Minimum DC current gain (hFE)4000
JEDEC-95 codeTO-92
JESD-30 codeO-PBCY-T3
JESD-609 codee1
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formCYLINDRICAL
Peak Reflow Temperature (Celsius)260
Polarity/channel typeNPN
Maximum power dissipation(Abs)1 W
Certification statusNot Qualified
surface mountNO
Terminal surfaceTin/Silver/Copper (Sn/Ag/Cu)
Terminal formTHROUGH-HOLE
Terminal locationBOTTOM
Maximum time at peak reflow temperature40
Transistor component materialsSILICON
Nominal transition frequency (fT)100 MHz

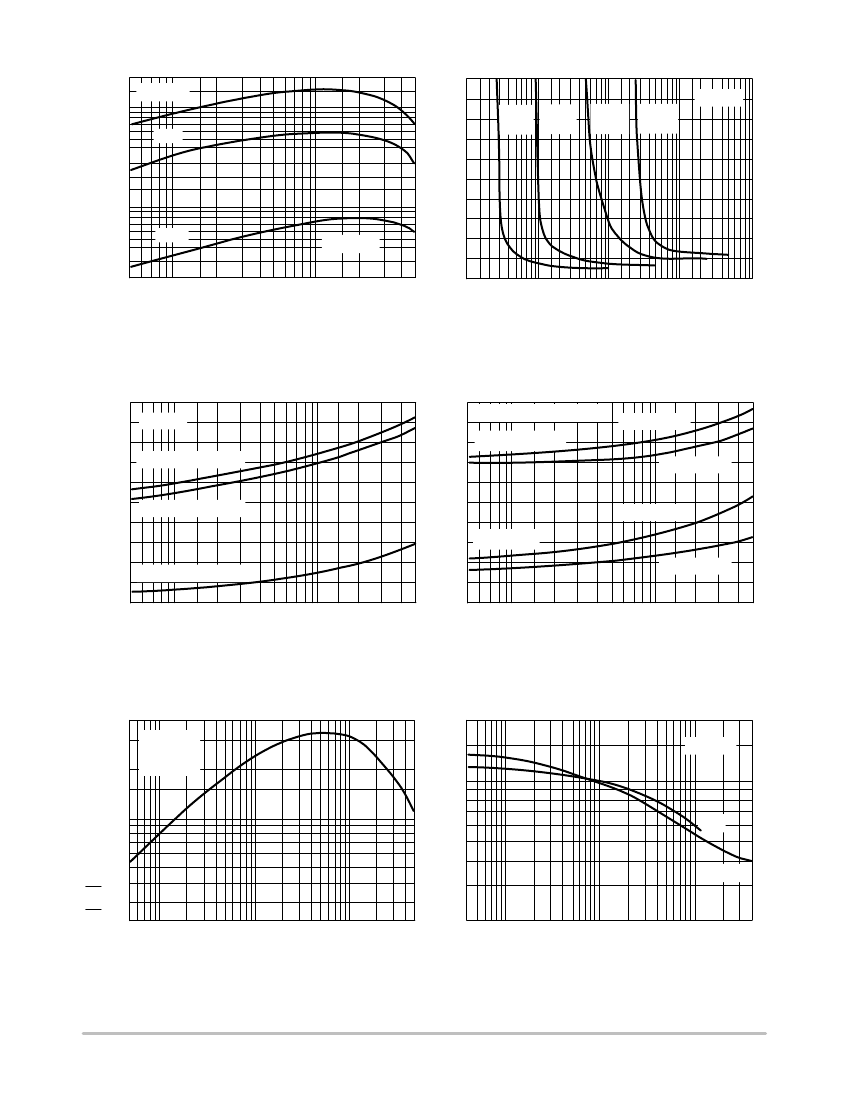

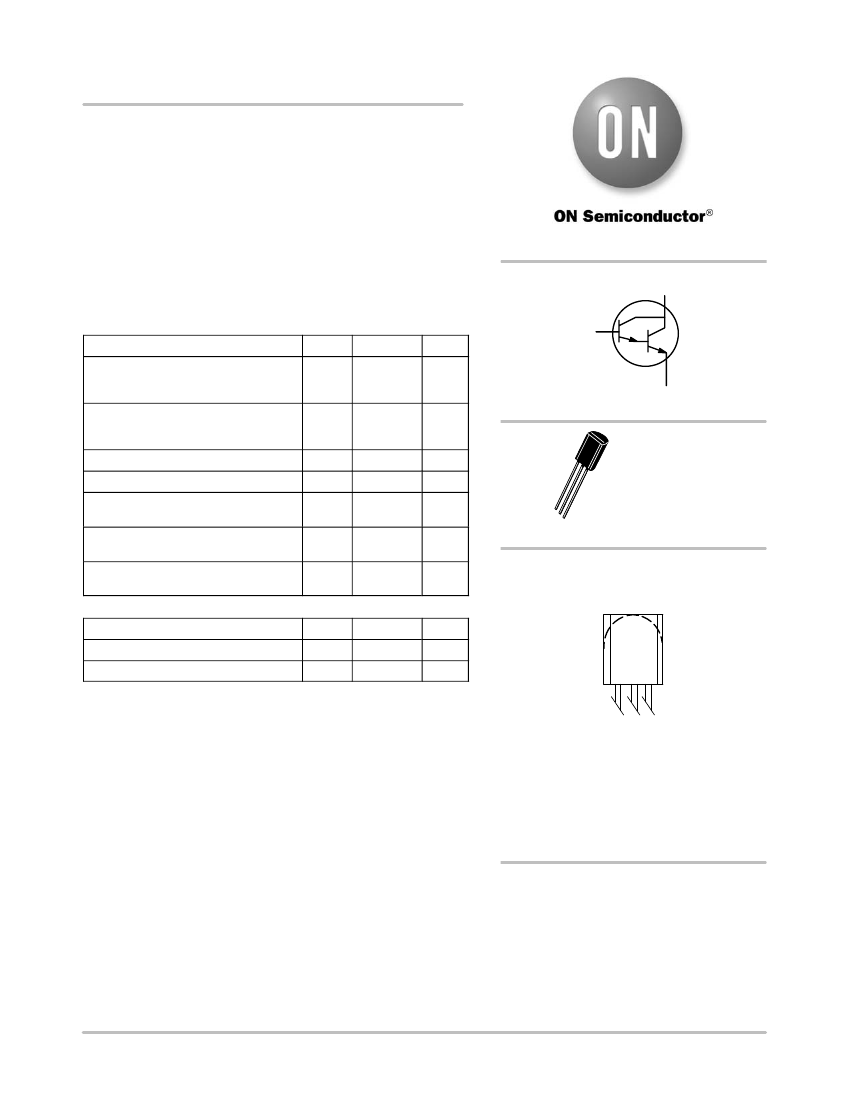

MPS6724, MPS6725
One Watt Darlington
Transistors
NPN Silicon
Features
http://onsemi.com
COLLECTOR 3
BASE
2
Pb−Free Packages are Available*
MAXIMUM RATINGS
Rating
Collector −Emitter Voltage
MPS6724
MPS6725
Collector −Base Voltage
MPS6724
MPS6725
Emitter −Base Voltage
Collector Current − Continuous
Total Device Dissipation @ T
A
= 25°C
Derate above 25°C
Total Device Dissipation @ T
C
= 25°C
Derate above 25°C
Operating and Storage Junction
Temperature Range
V
EBO
I
C
P
D
P
D
T
J
, T
stg
V
CBO
50
60
12
1000
1.0
8.0
2.5
20
−55 to +150
Vdc
mAdc
W
mW/°C
W
mW/°C
°C
1
2
Symbol
V
CEO
40
50
Vdc
Value
Unit
Vdc
EMITTER 1
TO−92 (TO−226)
CASE 29−10
STYLE 1
3
MARKING DIAGRAM
THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance, Junction−to−Ambient
Thermal Resistance, Junction−to−Case
Symbol
R
qJA
R
qJC
Max
125
50
Unit
°C/W
°C/W
MPS
672x
AYWW
G
G
Maximum ratings are those values beyond which device damage can occur.
Maximum ratings applied to the device are individual stress limit values (not
normal operating conditions) and are not valid simultaneously. If these limits are
exceeded, device functional operation is not implied, damage may occur and
reliability may be affected.
MPS672x = Device Code
x = 4 or 5
A
= Assembly Location
Y
= Year
WW
= Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
©
Semiconductor Components Industries, LLC, 2006
1
February, 2006 − Rev. 3
Publication Order Number:
MPS6724/D

MPS6724RLRAG Related Products

MPS6724RLRAG MPS6725G MPS6725RLRP
Description Darlington Transistors 1A 40V NPN Darlington Transistors 1A 50V NPN Darlington Transistors 1A 50V NPN
Maker ON Semiconductor ON Semiconductor ON Semiconductor
package instruction CYLINDRICAL, O-PBCY-T3 CYLINDRICAL, O-PBCY-T3 CYLINDRICAL, O-PBCY-T3
Reach Compliance Code unknown unknown not_compliant
ECCN code EAR99 EAR99 EAR99
Maximum collector current (IC) 1 A 1 A 1 A
Collector-emitter maximum voltage 40 V 50 V 50 V
Configuration DARLINGTON DARLINGTON DARLINGTON
Minimum DC current gain (hFE) 4000 4000 4000
JEDEC-95 code TO-92 TO-92 TO-92
JESD-30 code O-PBCY-T3 O-PBCY-T3 O-PBCY-T3
JESD-609 code e1 e1 e0
Number of components 1 1 1
Number of terminals 3 3 3
Maximum operating temperature 150 °C 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape ROUND ROUND ROUND
Package form CYLINDRICAL CYLINDRICAL CYLINDRICAL
Peak Reflow Temperature (Celsius) 260 260 240
Polarity/channel type NPN NPN NPN
Maximum power dissipation(Abs) 1 W 1 W 1 W
Certification status Not Qualified Not Qualified Not Qualified
surface mount NO NO NO
Terminal surface Tin/Silver/Copper (Sn/Ag/Cu) Tin/Silver/Copper (Sn/Ag/Cu) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal location BOTTOM BOTTOM BOTTOM
Maximum time at peak reflow temperature 40 40 30
Transistor component materials SILICON SILICON SILICON
Nominal transition frequency (fT) 100 MHz 100 MHz 100 MHz
Parts packaging code TO-92 TO-92 -
Contacts 3 3 -
Manufacturer packaging code 29-10 CASE 29-05 -
Is it Rohs certified? - conform to incompatible
