BH15MA3WHFV-TR: DescriptionLDO Voltage Regulators IC LDO 300MA 1.5V SD; CategoryPower/power management The power supply circuit; File Size615KB，14 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BH15MA3WHFV-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BH15MA3WHFV-TR	-	-	View	Buy Now

BH15MA3WHFV-TR Overview

LDO Voltage Regulators IC LDO 300MA 1.5V SD

BH15MA3WHFV-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	HVSOF-6
Contacts	6
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Adjustability	FIXED
Maximum absolute input voltage	6.5 V
JESD-30 code	R-PDSO-F6
Maximum grid adjustment rate	0.02%
Maximum load regulation	0.09%
Output times	1
Number of terminals	6
Maximum output current 1	0.3 A
Nominal output voltage 1	1.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	DFP
Encapsulate equivalent code	FL6,.1,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	YES
technology	CMOS
Terminal form	FLAT
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	1.67%

Preview

Download Datasheet

View All

Datasheet

CMOS LDO Regulators for Portable Equipments

1ch 300mA

CMOS LDO Regulators

BHxxMA3 series

●General

Description

BHxxMA3 series are high-performance CMOS LDO

regulators with output current ability of up to 300mA. These

devices have excellent noise characteristics despite of

their low circuit current consumption of 65µA. They are

most appropriate for various applications such as power

supplies for logic IC, RF, and camera modules.

●Key

Specifications

Input Power Supply Voltage Range:

Output Current Range:

Operating Temperature Range:

Output Voltage Lineup:

Output Voltage Accuracy:

Circuit Current:

Standby Current:

●Package

HVSOF6

2.5V to 5.5V

0 to 300mA

-40 to 85℃

1.5V to 3.3V

±1%

65μA (Typ.)

0μA (Typ.)

●Features

High Output Voltage Accuracy:

±1

(±25mV on VOUT<2.5V products)

Dropout voltage: 60mV (IOUT=100mA)

Compatible with small ceramic capacitor

Output Voltage ON/OFF Control

Built-in Over Current Protection Circuit (OCP)

Built-in Thermal Shutdown Circuit (TSD)

Ultra-small power package:HVSOF6

●Applications

Battery-driven portable devices

Other electronic devices using microcontrollers or

logic circuits

W(Typ.) x D(Typ.) x H(Max.)

1.60mm x 3.00mm x 0.75mm

●Typical

Application Circuit

Vin

Cin

VIN

VOUT

Cout

VOUT

Vout

BHxxMA3

Off

STBY

GND

NOISE

Figure 1. Typical Application Circuit

○Product

structure：Silicon monolithic integrated circuit

www.rohm.com

TSZ22111・14・001

○This

product is not designed protection against radioactive rays

1/10

TSZ02201-0RBR0A300170-1-2

25.Sep.2013 Rev.001

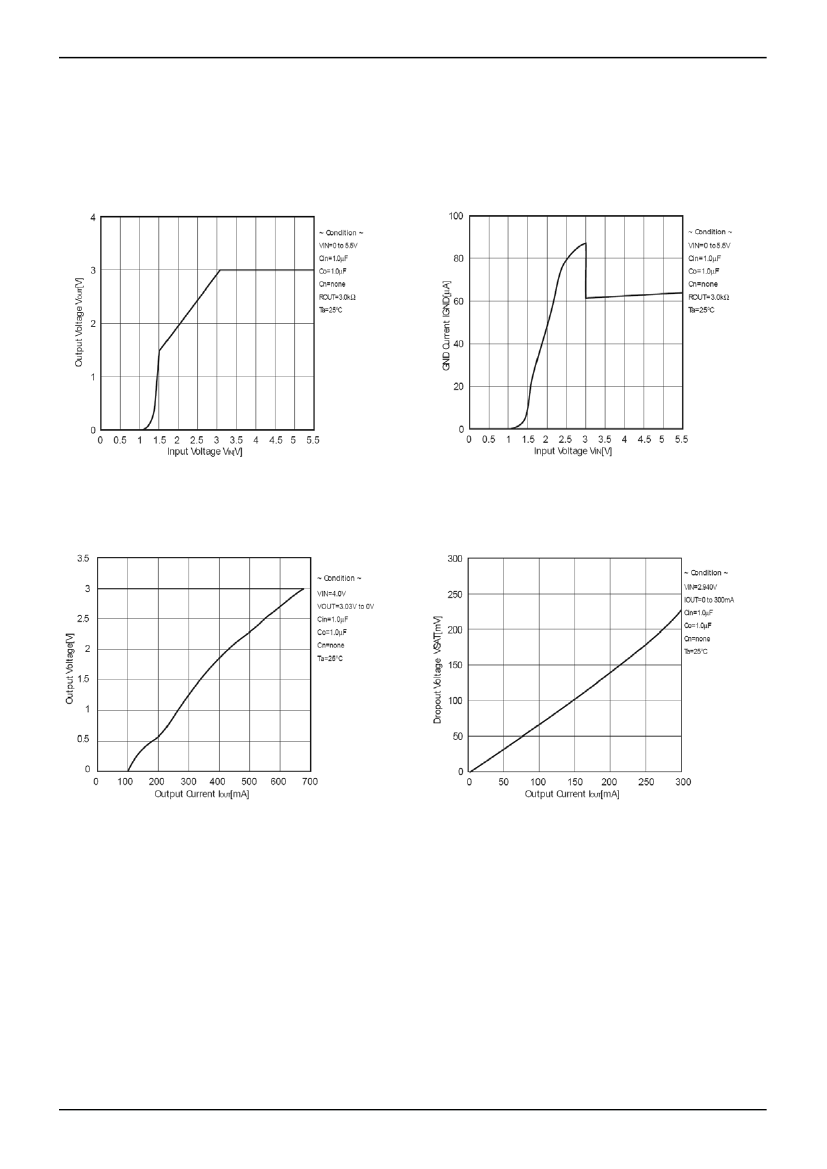

BH15MA3WHFV-TR Related Products

	BH15MA3WHFV-TR	BH18MA3WHFV-TR	BH28MA3WHFV-TR	BH25FB1WHFV-TR	BH33FB1WG-TR	BH25MA3WHFV-TR	BH18LB1WG-TR	BH31MA3WHFV-TR
Description	LDO Voltage Regulators IC LDO 300MA 1.5V SD	LDO Voltage Regulators IC LDO 300MA 1.8V SD		LDO Voltage Regulators REG 150MA 2.5V	LDO Voltage Regulators IC LDO 150MA 3.3V SHDN	LDO Voltage Regulators REG 300MA 2.5V	LDO Voltage Regulators IC LDO 150MA 1.8V SHDN	LDO Voltage Regulators 300MA 3.1V CMOS LDO Regulator
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	SOIC	SOIC	SOIC	SOF	SSOP	SOIC	SSOP	SOIC
package instruction	HVSOF-6	HVSOF-6	HVSOF-6	DFP, FL6,.047,20	SSOP-5	HVSOF-6	TSOP, TSOP5/6,.11,37	HVSOF-6
Contacts	6	6	6	5	5	6	5	6
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Adjustability	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED
Maximum absolute input voltage	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V
JESD-30 code	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F5	R-PDSO-G5	R-PDSO-F6	R-PDSO-G5	R-PDSO-F6
Maximum grid adjustment rate	0.02%	0.02%	0.02%	0.02%	0.02%	0.02%	0.02%	0.02%
Maximum load regulation	0.09%	0.09%	0.09%	0.03%	0.03%	0.09%	0.03%	0.09%
Output times	1	1	1	1	1	1	1	1
Number of terminals	6	6	6	5	5	6	5	6
Maximum output current 1	0.3 A	0.3 A	0.3 A	0.1 A	0.1 A	0.3 A	0.1 A	0.3 A
Nominal output voltage 1	1.5 V	1.8 V	2.8 V	2.5 V	3.3 V	2.5 V	1.8 V	3.1 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DFP	DFP	DFP	DFP	TSOP	DFP	TSOP	DFP
Encapsulate equivalent code	FL6,.1,20	FL6,.1,20	FL6,.1,20	FL6,.047,20	TSOP5/6,.11,37	FL6,.1,20	TSOP5/6,.11,37	FL6,.1,20
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	260	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	260	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	FLAT	FLAT	FLAT	FLAT	GULL WING	FLAT	GULL WING	FLAT
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.95 mm	0.5 mm	0.95 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	10	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	10	NOT SPECIFIED	NOT SPECIFIED
Maximum voltage tolerance	1.67%	1.38%	1%	1%	1%	1%	1%	1%
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	-	ROHM Semiconductor	-
Base Number Matches	-	1	1	-	1	1	1	1
Nominal dropback voltage 1	-	-	0.06 V	0.25 V	0.25 V	0.06 V	-	0.06 V
