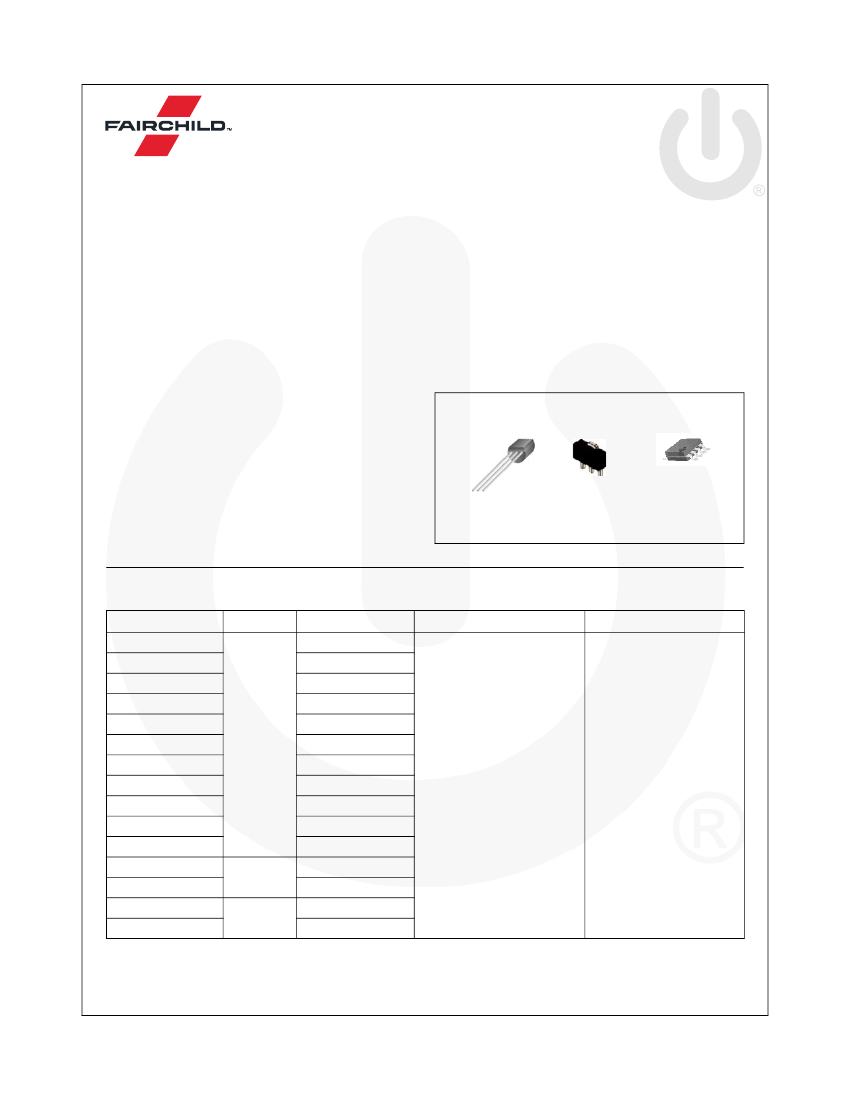

MC78LXXA / LM78LXXA — 3-Terminal 0.1 A Positive Voltage Regulator
July 2015
MC78LXXA / LM78LXXA
3-Terminal 0.1 A Positive Voltage Regulator
Features
•
•
•
•
•
Maximum Output Current of 100 mA
Output Voltage of 5 V, 6 V, 8 V, 12 V, and 15 V
Thermal Overload Protection
Short-Circuit Current Limiting
Output Voltage Offered in ±5% Tolerance
Description
The MC78LXXA / LM78LXXA series of fixed-voltage
monolithic integrated circuit voltage regulators are suit-
able for applications that required supply current up to
100 mA.
TO-92
SOT-89
GND
8
1
1 23
2 3
1
8-SOIC
1. Output 2. GND
3. GND 4. NC
5. NC 6. GND
7. GND 8. Input
1. Output 2. GND 3. Input
Ordering Information
Product Number
LM78L05ACZ
LM78L05ACZX
LM78L05ACZXA
LM78L12ACZ
LM78L12ACZX
MC78L05ACP
MC78L05ACPXA
MC78L06ACP
MC78L08ACP
MC78L15ACP
MC78L15ACPXA
MC78L05ACD
MC78L05ACDX
MC78L05ACHX
MC78L08ACHX
8-SOIC
SOT-89
TO-92
Package
Packing Method Output Voltage Tolerance Operating Temperature
