Z86C9325PSG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z86C9325PSG

Z86C9325PSG: Description8-bit Microcontrollers - MCU 25MHz ROMLESS C93; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，47 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z86C9325PSG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Z86C9325PSG	-	-	View	Buy Now

Z86C9325PSG Overview

8-bit Microcontrollers - MCU 25MHz ROMLESS C93

Z86C9325PSG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	Zilog, Inc.
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	unknown
Has ADC	NO
Other features	16 X 16 MULTIPLIER; 32 X 16 DIVIDER; TWO STANDBY MODES
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	25 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T40
JESD-609 code	e3
length	52.325 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	4
Number of I/O lines	24
Number of serial I/Os	1
Number of terminals	40
Number of timers	3
On-chip data RAM width	8
On-chip program ROM width
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
RAM (number of words)	256
rom(word)	0
Maximum seat height	4.24 mm
speed	25 MHz
Maximum slew rate	40 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	2.97 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

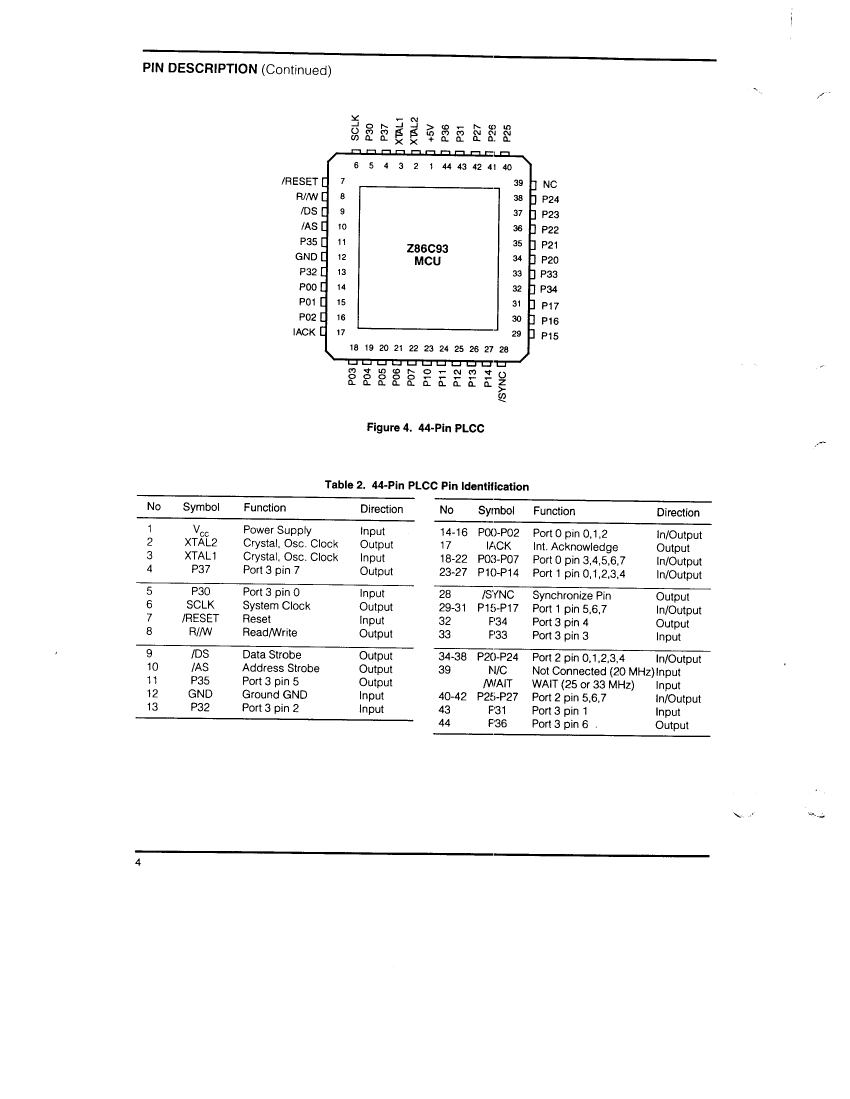

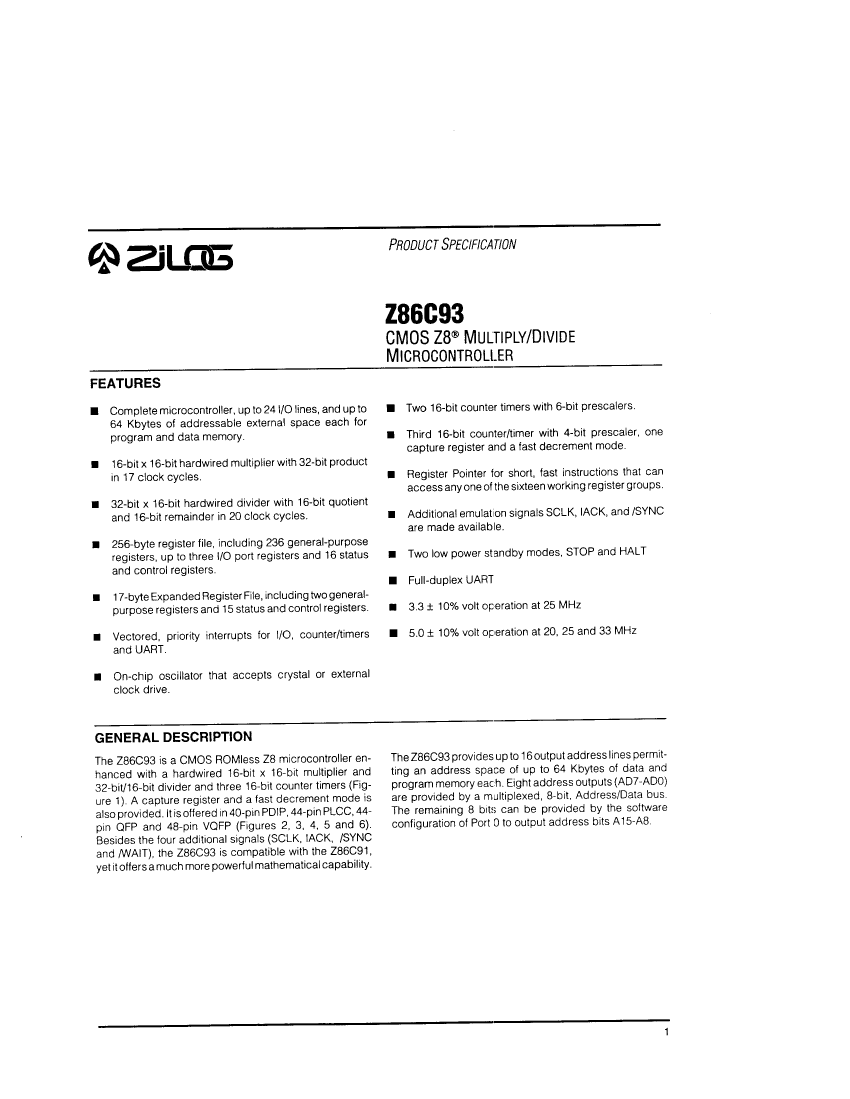

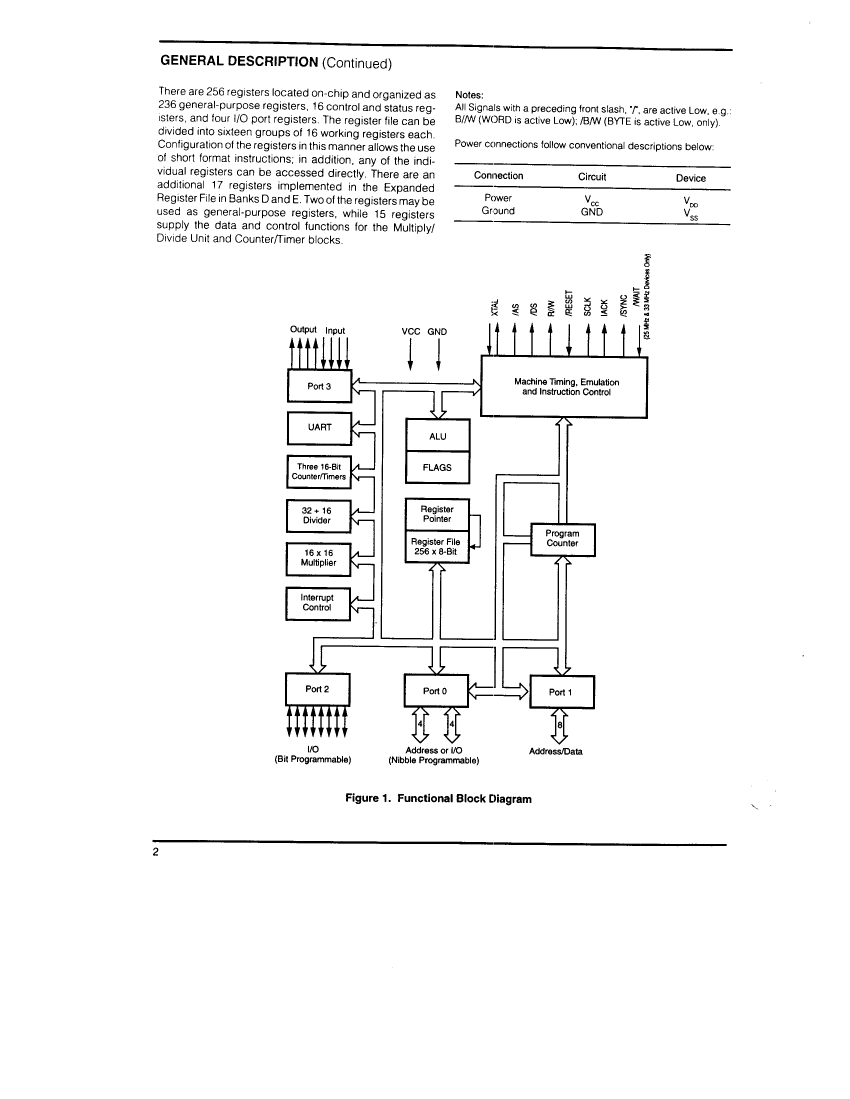

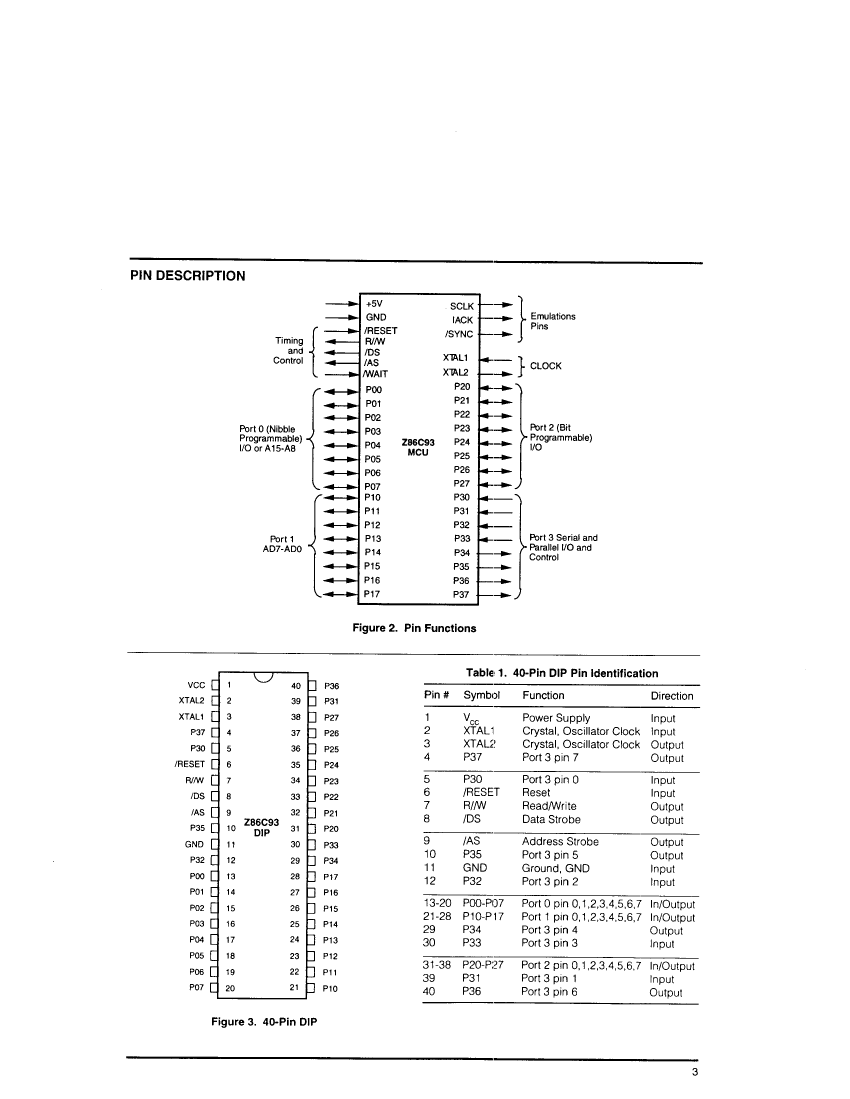

Preview

Download Datasheet

View All

Z86C9325PSG Related Products

	Z86C9325PSG	Z86C9320ASG	Z86C9325VSC	Z86C9333ASG	Z86C9333VSG	Z86C9325VSG
Description	8-bit Microcontrollers - MCU 25MHz ROMLESS C93	8-bit Microcontrollers - MCU Z8 20 MHZ MULT/DIV ROMLESS C93	8-bit Microcontrollers - MCU 25MHz ROMLESS C93	8-bit Microcontrollers - MCU Z8 33MHZ MULT/DIV ROMLESS C93	8-bit Microcontrollers - MCU 33MHz ROMLESS	8-bit Microcontrollers - MCU 25MHz ROMLESS C93
Is it lead-free?	Lead free	-	Contains lead	-	Lead free	Lead free
Parts packaging code	DIP	-	LCC	-	LCC	LCC
package instruction	DIP,	-	QCCJ, LDCC44,.7SQ	-	QCCJ,	QCCJ,
Contacts	40	-	44	-	44	44
Reach Compliance Code	unknown	-	unknown	-	unknown	unknown
Has ADC	NO	-	NO	-	NO	NO
Other features	16 X 16 MULTIPLIER; 32 X 16 DIVIDER; TWO STANDBY MODES	-	16 X 16 MULTIPLIER; 32 X 16 DIVIDER; TWO STANDBY MODES	-	16 X 16 MULTIPLIER; 32 X 16 DIVIDER; TWO STANDBY MODES	16 X 16 MULTIPLIER; 32 X 16 DIVIDER; TWO STANDBY MODES
Address bus width	16	-	16	-	16	16
bit size	8	-	8	-	8	8
boundary scan	NO	-	NO	-	NO	NO
maximum clock frequency	25 MHz	-	25 MHz	-	33 MHz	25 MHz
DAC channel	NO	-	NO	-	NO	NO
DMA channel	NO	-	NO	-	NO	NO
External data bus width	8	-	8	-	8	8
Format	FIXED POINT	-	FIXED POINT	-	FIXED POINT	FIXED POINT
Integrated cache	NO	-	NO	-	NO	NO
JESD-30 code	R-PDIP-T40	-	S-PQCC-J44	-	S-PQCC-J44	S-PQCC-J44
JESD-609 code	e3	-	e0	-	e3	e3
length	52.325 mm	-	16.5862 mm	-	16.5862 mm	16.5862 mm
low power mode	YES	-	YES	-	YES	YES
Number of external interrupt devices	4	-	4	-	4	4
Number of I/O lines	24	-	24	-	24	24
Number of serial I/Os	1	-	1	-	1	1
Number of terminals	40	-	44	-	44	44
Number of timers	3	-	3	-	3	3
On-chip data RAM width	8	-	8	-	8	8
Maximum operating temperature	70 °C	-	70 °C	-	70 °C	70 °C
PWM channel	NO	-	NO	-	NO	NO
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	-	QCCJ	-	QCCJ	QCCJ
Package shape	RECTANGULAR	-	SQUARE	-	SQUARE	SQUARE
Package form	IN-LINE	-	CHIP CARRIER	-	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225	-	225	-	225	225
Certification status	Not Qualified	-	Not Qualified	-	Not Qualified	Not Qualified
RAM (number of words)	256	-	256	-	256	256
Maximum seat height	4.24 mm	-	4.57 mm	-	4.57 mm	4.57 mm
speed	25 MHz	-	25 MHz	-	33 MHz	25 MHz
Maximum slew rate	40 mA	-	40 mA	-	55 mA	40 mA
Maximum supply voltage	5.5 V	-	5.5 V	-	5.5 V	5.5 V
Minimum supply voltage	2.97 V	-	2.97 V	-	4.5 V	2.97 V
Nominal supply voltage	5 V	-	5 V	-	5 V	5 V
surface mount	NO	-	YES	-	YES	YES
technology	CMOS	-	CMOS	-	CMOS	CMOS
Temperature level	COMMERCIAL	-	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Terminal surface	TIN	-	Tin/Lead (Sn/Pb)	-	TIN	TIN
Terminal form	THROUGH-HOLE	-	J BEND	-	J BEND	J BEND
Terminal pitch	2.54 mm	-	1.27 mm	-	1.27 mm	1.27 mm
Terminal location	DUAL	-	QUAD	-	QUAD	QUAD
Maximum time at peak reflow temperature	30	-	30	-	30	30
width	15.24 mm	-	16.5862 mm	-	16.5862 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	-	MICROCONTROLLER	-	MICROCONTROLLER	MICROCONTROLLER
