Z84C0020PEG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z84C0020PEG

Z84C0020PEG: DescriptionMicroprocessors - MPU 20MHz CMOS CPU XTEMP; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，36 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

Z84C0020PEG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Z84C0020PEG	-	-	View	Buy Now

Z84C0020PEG Overview

Microprocessors - MPU 20MHz CMOS CPU XTEMP

Z84C0020PEG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Zilog, Inc.
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	DRAM REFRESH COUNTER
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	20 MHz
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T40
JESD-609 code	e3
length	52.325 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of serial I/Os
Number of terminals	40
On-chip data RAM width
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.75 mm
speed	20 MHz
Maximum slew rate	100 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR
Base Number Matches	1

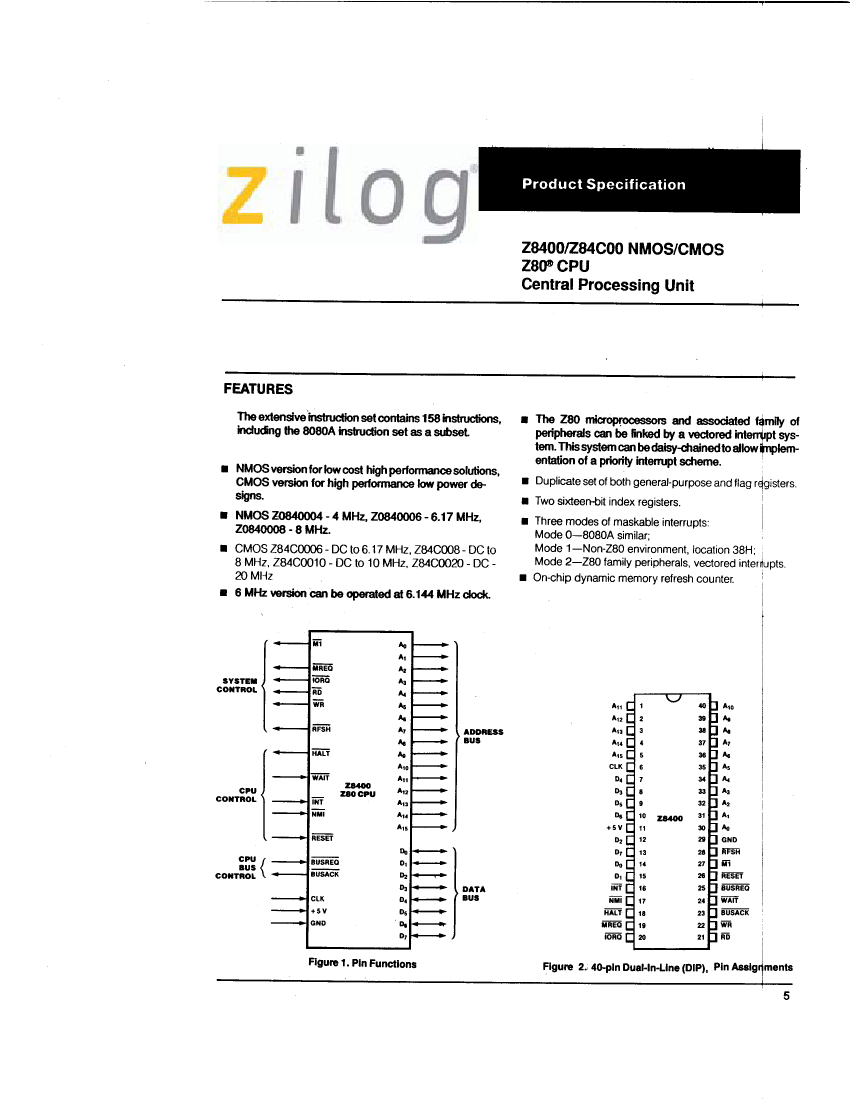

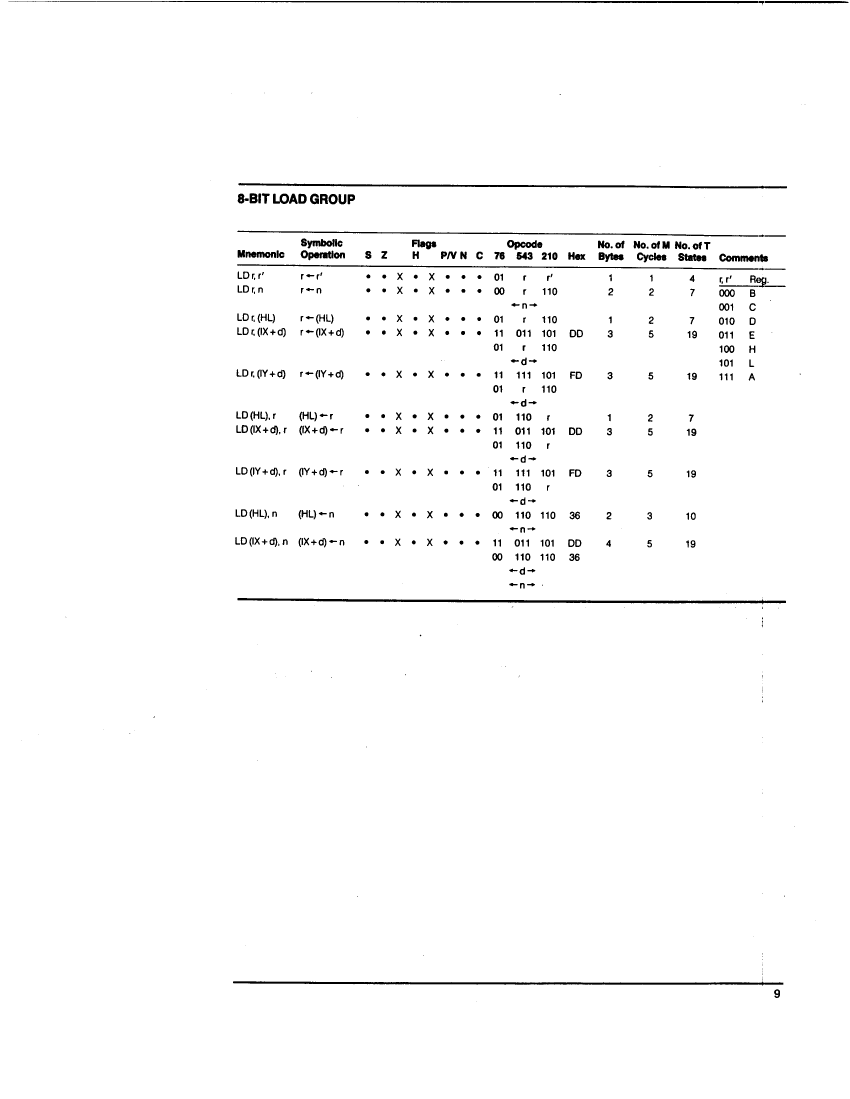

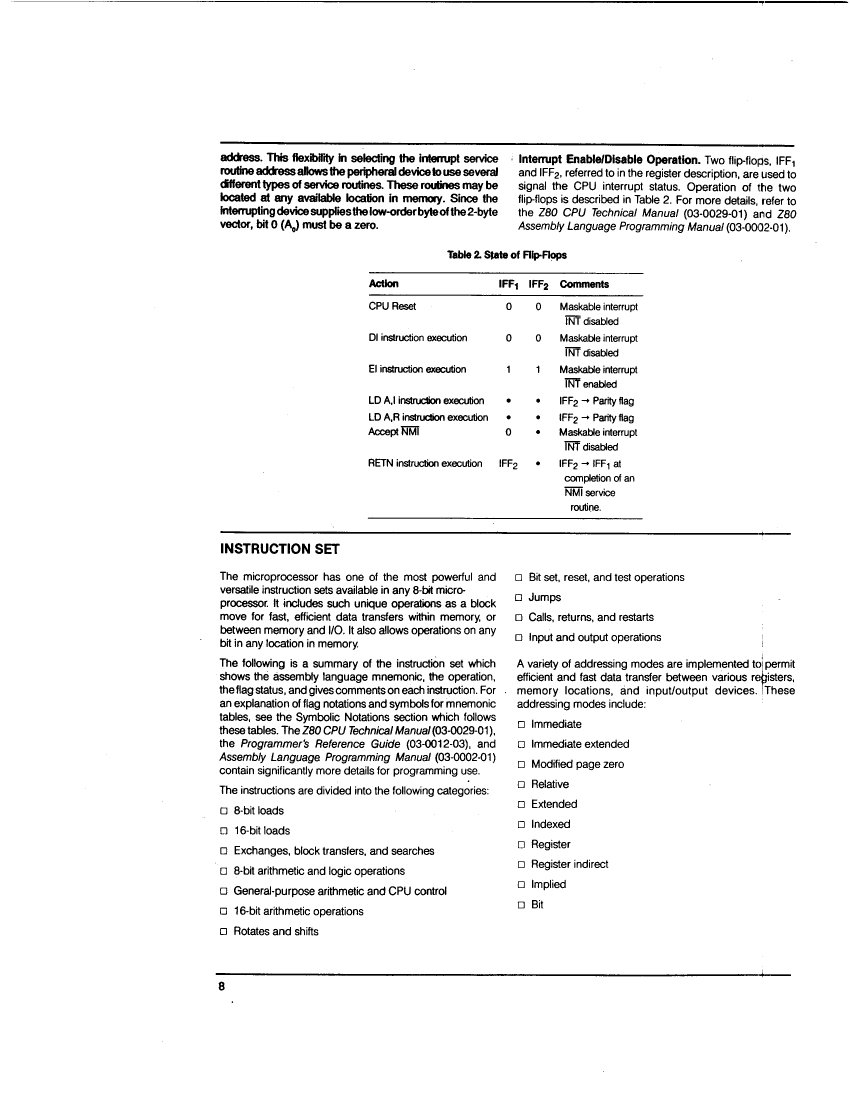

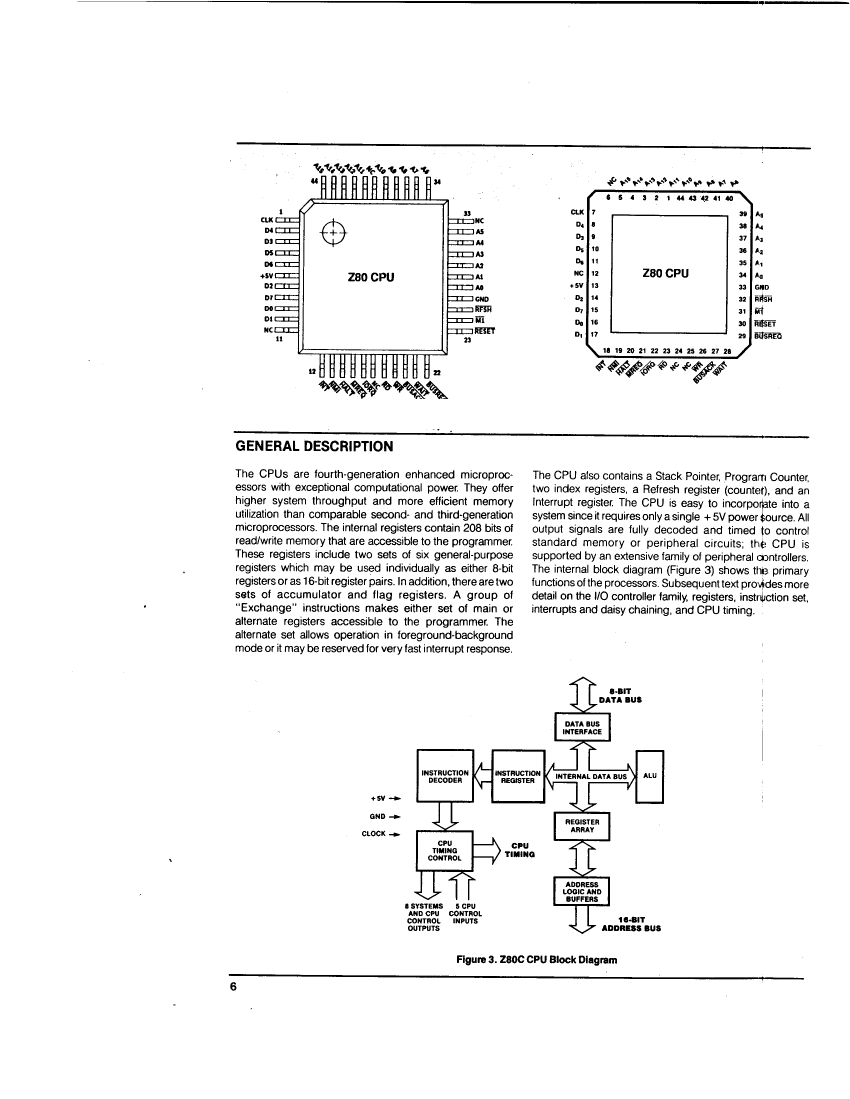

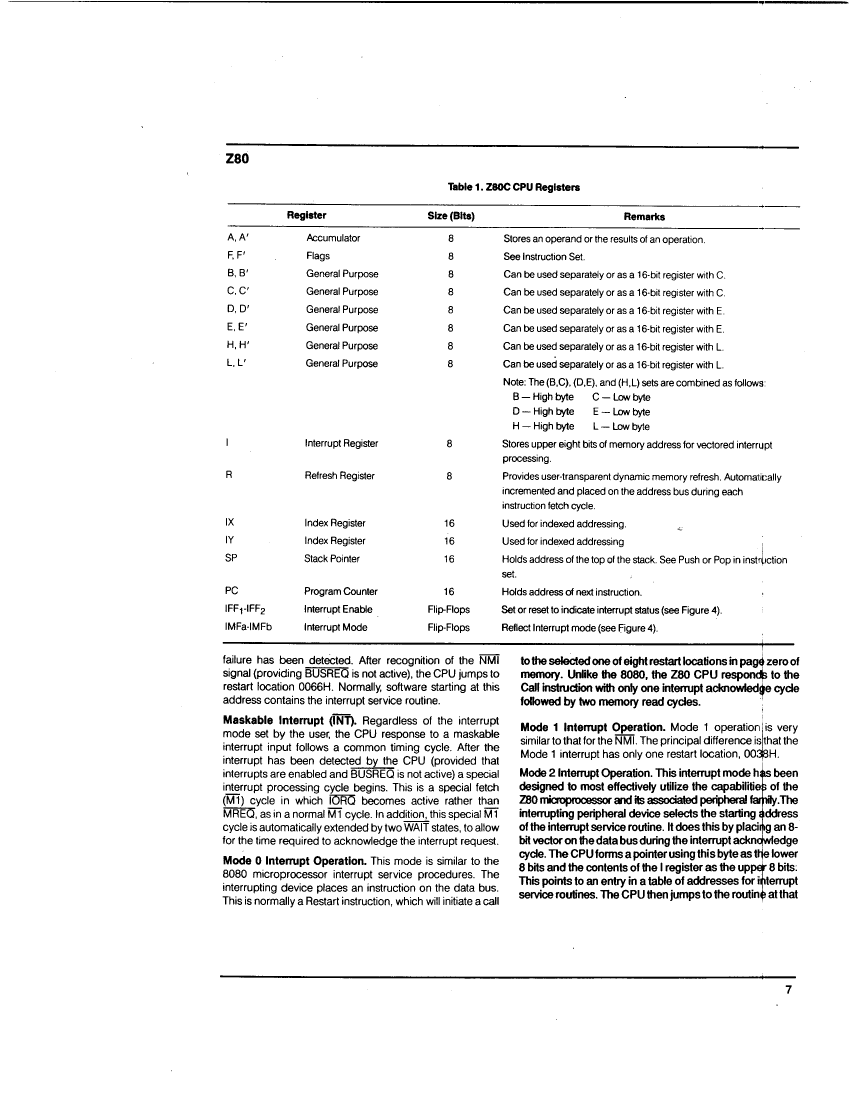

Preview

Download Datasheet

View All

PS017801-0602

Z84C0020PEG Related Products

	Z84C0020PEG	Z84C0008VEG	Z84C0006AEG	Z84C0006FEC	Z84C0006VEG
Description	Microprocessors - MPU 20MHz CMOS CPU XTEMP	Programmers - Processor Based PSoC Miniprog3 Kit for PSoC 1, 3, 5	RF Microcontrollers - MCU	Microprocessors - MPU 6 MHz Z80 CMOS CPU	Development Boards u0026 Kits - ARM Eval Kit for SamS70 u0026 E70
Is it Rohs certified?	conform to	conform to	conform to	incompatible	conform to
Maker	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
Parts packaging code	DIP	QFN	QFP	QFP	QFN
package instruction	DIP,	QCCJ, LDCC44,.7SQ	QCCJ, LDCC44,.7SQ	QFP-44	QCCJ, LDCC44,.7SQ
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
bit size	8	8	8	8	8
JESD-30 code	R-PDIP-T40	S-PQCC-J44	S-PQCC-J44	S-PQFP-G44	S-PQCC-J44
Number of terminals	40	44	44	44	44
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCJ	QCCJ	QFP	QCCJ
Package shape	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE
Package form	IN-LINE	CHIP CARRIER	CHIP CARRIER	FLATPACK	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
speed	20 MHz	8 MHz	6 MHz	6.17 MHz	6.17 MHz
Maximum slew rate	100 mA	40 mA	30 mA	30 mA	30 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	J BEND	J BEND	GULL WING	J BEND
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	0.8 mm	1.27 mm
Terminal location	DUAL	QUAD	QUAD	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR, RISC	MICROPROCESSOR	MICROPROCESSOR
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free
Contacts	40	44	-	44	44
Other features	DRAM REFRESH COUNTER	DRAM MEMORY REFRESH COUNTER	-	DRAM MEMORY REFRESH COUNTER	DRAM MEMORY REFRESH COUNTER
Address bus width	16	16	-	16	16
boundary scan	NO	NO	-	NO	NO
maximum clock frequency	20 MHz	8 MHz	-	6.17 MHz	6.17 MHz
External data bus width	8	8	-	8	8
Format	FIXED POINT	FIXED POINT	-	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	-	NO	NO
JESD-609 code	e3	e3	-	e0	e3
length	52.325 mm	16.5862 mm	-	10 mm	16.5862 mm
low power mode	YES	YES	-	YES	YES
Number of external interrupt devices	2	2	-	2	2
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	260	-	225	260
Maximum seat height	4.75 mm	4.57 mm	-	2.5 mm	4.57 mm
Maximum supply voltage	5.5 V	5.5 V	-	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	-	4.5 V	4.5 V
Terminal surface	MATTE TIN	Matte Tin (Sn)	-	Tin/Lead (Sn/Pb)	Matte Tin (Sn)
Maximum time at peak reflow temperature	NOT SPECIFIED	40	-	30	40
width	15.24 mm	16.5862 mm	-	10 mm	16.5862 mm
Base Number Matches	1	1	1	-	1
Encapsulate equivalent code	-	LDCC44,.7SQ	LDCC44,.7SQ	QFP44,.57SQ,32	LDCC44,.7SQ
power supply	-	5 V	5 V	5 V	5 V
