AU2PD, AU2PG, AU2PJ
www.vishay.com
Vishay General Semiconductor
Ultrafast Avalanche Surface Mount Rectifiers
eSMP
®
Series
K
FEATURES
• Very low profile - typical height of 1.1 mm
• Ideal for automated placement
• Glass passivated pellet chip junction
• Fast reverse recovery time
1
2
Available
• Controlled avalanche characteristics
• Low leakage current
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHM3
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
2.0 A
TO-277A (SMPC)
K
Cathode
Anode 1
Anode 2
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
t
rr
E
AS
V
F
at I
F
= 2.0 A
T
J
max.
Package
Diode variations
200 V, 400 V, 600 V
30 A
75 ns
20 mJ
1.13 V
175 °C
TO-277A (SMPC)
Single die
MECHANICAL DATA
Case:
TO-277A (SMPC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS-compliant, and
commercial grade
Base P/NHM3 - halogen-free, RoHS-compliant and
AEC-Q101 qualified
Base P/NHM3_X - halogen-free, RoHS-compliant and
AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B,.....)
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
M3 suffix meets JESD 201 class 2 whisker test, HM3 suffix
meets JESD 201 class 2 whisker test
TYPICAL APPLICATIONS
For use in lighting, high frequency rectification and
freewheeling application in switching mode converters and
inverters for consumer, computer, automotive, and
telecommunication.
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum DC forward current (fig. 1)
Peak forward surge current 10 ms single half sine-wave
superimposed on rated load
Non-repetitive avalanche energy at T
J
= 25 °C
I
AS
= 2.5 A max.
I
AS
= 1.0 A typ.
V
RRM
I
F (1)
I
F (2)
I
FSM
E
AS
T
J
, T
STG
SYMBOL
AU2PD
AU2D
200
AU2PG
AU2G
400
2.0
1.6
30
20
30
-55 to +175
AU2PJ
AU2J
600
V
A
A
mJ
°C
UNIT
Operating junction and storage temperature range
Notes
(1)
Mounted on 10 mm x 10 mm pad areas, 1 oz. FR4 PCB
(2)
Free air, mounted on recommended pad area
Revision: 19-Feb-15
Document Number: 89336
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
AU2PD, AU2PG, AU2PJ
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Instantaneous forward voltage
Reverse current
Maximum reverse recovery time
Typical junction capacitance per diode
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
40 ms
TEST CONDITIONS
I
F
= 2.0 A
Rated V
R
T
A
= 25 °C
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
SYMBOL
V
F (1)
I
R (2)
t
rr
C
J
TYP.
1.48
1.13
0.3
41
66
42
MAX.
1.9
1.4
10
250
75
-
UNIT
V
μA
ns
pF
I
F
= 0.5 A, I
R
= 1.0 A,
I
rr
= 0.25 A
Rated V
R
= 4.0 V, 1 MHz
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
SYMBOL
R
JA
(1)
R
JM
(2)
AU2PD
AU2PG
85
5
AU2PJ
UNIT
°C/W
Notes
(1)
Free air, mounted on recommended PCB 1 oz. pad are; thermal resistance R
JA
- junction to ambient
(2)
Units mounted on PCB with 10 mm x 10 mm copper pad areas; R
JM
- junction to mount
ORDERING INFORMATION
(Example)
PREFERRED P/N
AU2PJ-M3/86A
AU2PJ-M3/87A
AU2PJHM3/86A
(1)
AU2PJHM3/86A
(1)
AU2PJHM3_A/H
(1)
AU2PJHM3_A/I
(1)
Note
(1)
AEC-Q101 qualified
UNIT WEIGHT (g)
0.10
0.10
0.10
0.10
0.10
0.10
PREFERRED PACKAGE CODE
86A
87A
86A
87A
H
I
BASE QUANTITY
1500
6500
1500
6500
1500
6500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Revision: 19-Feb-15
Document Number: 89336
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
AU2PD, AU2PG, AU2PJ
www.vishay.com
Vishay General Semiconductor

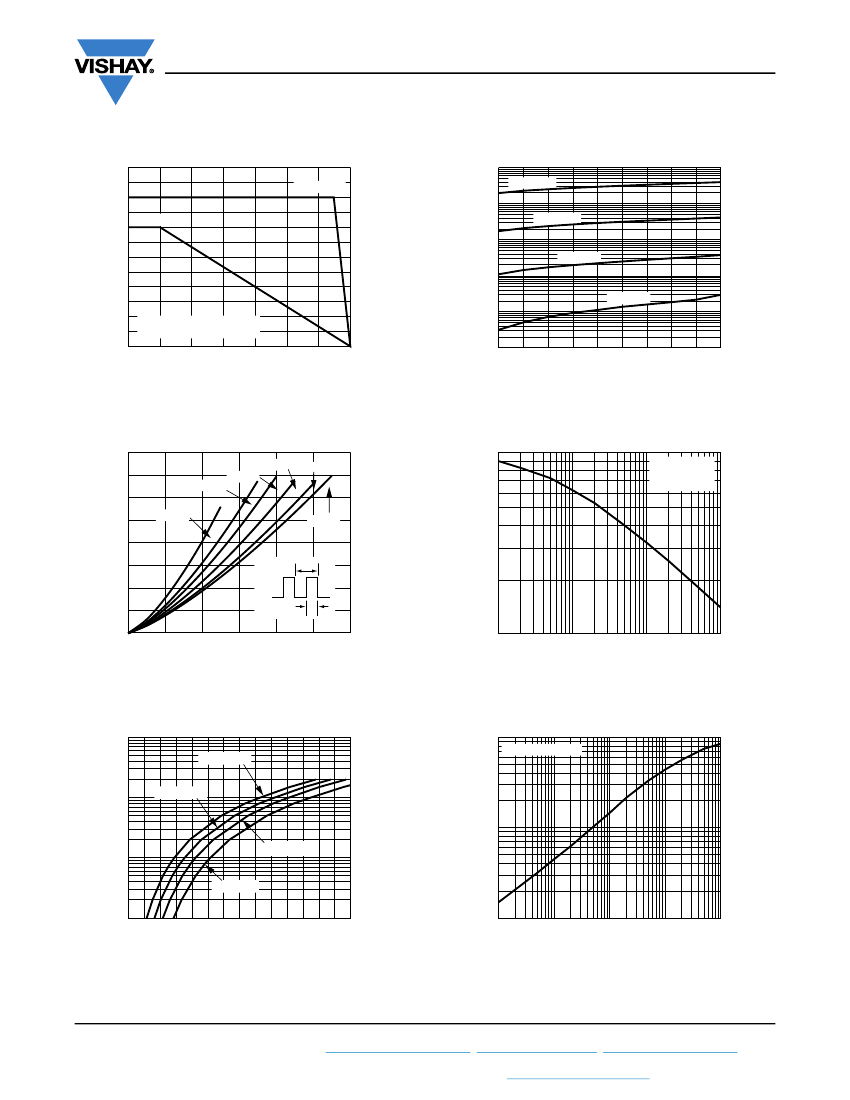

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
2.4
T
M
= 162 °C
1000
2.0
Instantaneous Reverse Current (μA)
2.2
T
A
= 175 °C
100
T
A
= 125 °C
10
T
A
= 75 °C
1
T
A
= 25 °C
0.1
DC Forward Current (A)
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
T
A
= 25 °C
T
M
Measured
at the Cathode Band Terminal
25
50
75
100
125
150
175
0.01
10
20
30
40
50
60
70
80
90
100
T
M
- Mount Temperature (°C)
Percent of Rated Peak Reverse Voltage (%)
Fig. 1 - Maximum Forward Current Derating Curve
Fig. 4 - Typical Reverse Leakage Characteristics
3.2
2.8
D = 0.5 D = 0.8
D = 0.3
100
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
2.4
2.0
1.6
1.2
0.8
0.4
0
0
0.4
0.8
1.2
1.6
2.0
2.4
D = t
p
/T
t
p
T
D = 0.1
D = 1.0
Junction Capacitance (pF)
10
0.1
1
10
Average Power Loss (W)
D = 0.2
100
Average Forward Current (A)
Reverse Voltage (V)
Fig. 2 - Average Power Loss Characteristics
Fig. 5 - Typical Junction Capacitance
100
T
A
= 175 °C
100
10
T
A
= 125 °C
Transient Thermal Impedance (°C/W)
Instantaneous Forward Current (A)
Junction-to-Ambient
10
T
A
= 75 °C
1
T
A
= 25 °C
0.1
0.2
0.6
1.0
1.4
1.8
2.2
2.6
3.0
1
0.01
0.1
1
10
100
Instantaneous Forward Voltage (V)
t - Pulse Duration (s)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 6 - Typical Transient Thermal Impedance
Revision: 19-Feb-15
Document Number: 89336
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
AU2PD, AU2PG, AU2PJ
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
TO-277A (SMPC)
0.187 (4.75)
0.175 (4.45)
K
0.016 (0.40)
0.006 (0.15)
Vishay General Semiconductor
0.262 (6.65)
0.250 (6.35)
0.242 (6.15)
0.238 (6.05)
2
1
0.171 (4.35)
0.167 (4.25)
0.146 (3.70)
0.134 (3.40)
0.087 (2.20)
0.075 (1.90)
0.047 (1.20)
0.039 (1.00)
Mounting Pad Layout
0.189 (4.80)
MIN.
0.189 (4.80)
0.173 (4.40)
0.155 (3.94)
NOM.
0.030 (0.75) NOM.
0.268
(6.80)
0.186 (4.72)
MIN.
0.049 (1.24)
0.037 (0.94)
0.084 (2.13) NOM.
0.053 (1.35)
0.041 (1.05)
Conform to JEDEC
®
TO-277A
0.050 (1.27)
MIN.
0.041
(1.04)
0.055 (1.40)
MIN.
Revision: 19-Feb-15
Document Number: 89336
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
