KTK High Pressure
Downhole Connector
Amphenol Industrial Operations now offers our KTK, high-
pressure, downhole connector. Fully compatible with the
industry standard configuration, these connectors offer high
pressure and high temperature sealed connections standard
in the downhole industry. One of the many upcoming
downhole connectors, the KTK product line is machined
molded and machined glass-filled epoxy with gold contacts
and a Viton O-ring.
Features:
•
•
•
•
•
•
•
•
Medium and High Temperature versions: 170ºC and 200ºC
Medium Temp / Pressure: 10,000 PSI (68 MPA) Bi-Directional
High Temp / Pressure: 20,000 PSI (137 MPA) Bi-Directional
Machined molded and machined glass-filled epoxy
Fully compatible with industry standard layouts
Gold contacts designed for longer life/mating cycles
Solder pot connections
Cable Assemblies/Pigtails Available
www.amphenol-industrial.com
Amphenol
®

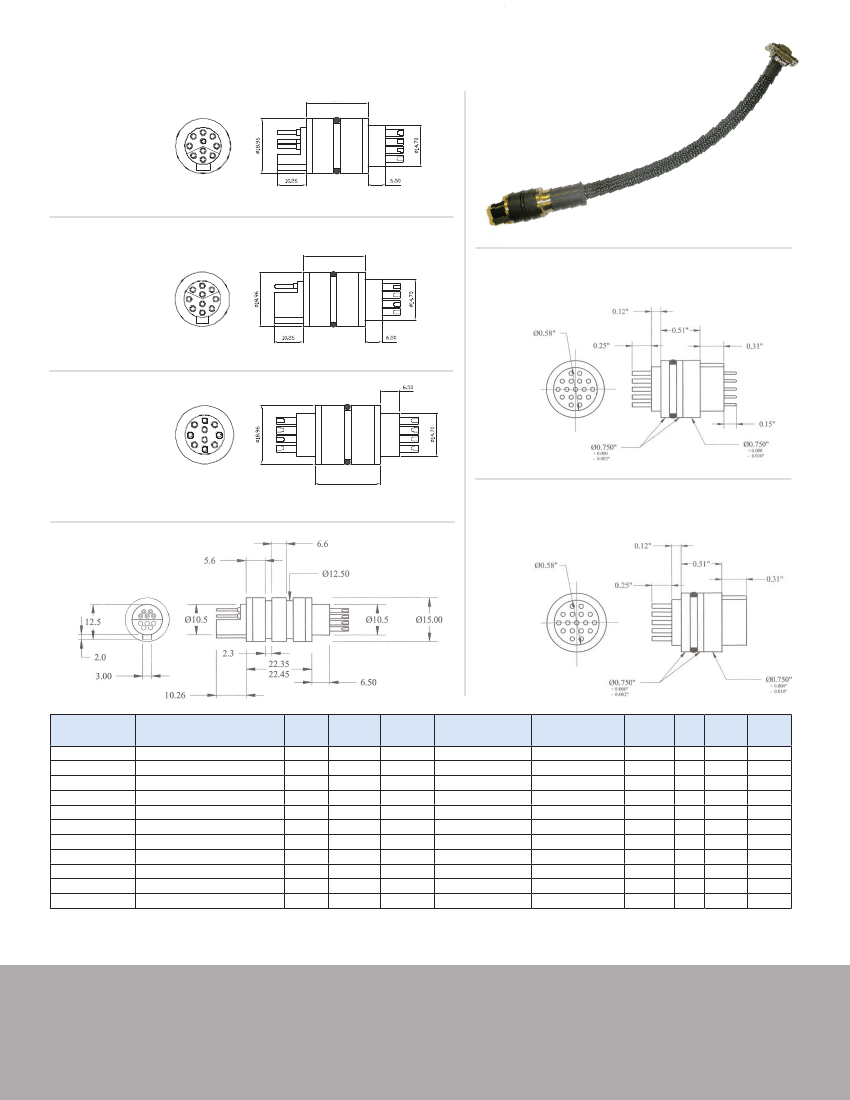

KTK High Pressure Downhole Connector
C10-686909-000
6 pin/4 socket
High Temp 200°C
C10-686927-000
6 pin/4 socket
Medium Temp 170°C
(C10-686909-000)
22.40
22.42
(C10-686927-000)
C10-686910-000
4 pin/6 socket
High Temp 200°C
C10-686928-000
4 pin/6 socket
Medium Temp 170°C
(C10-686910-000)
22.40
22.42
(C10-686928-000)
10-730944-000
17 pin
High Temp 200°C
C10-686926-000
10 pin solder to solder
High Temp 200°C
C10-686929-000
10 pin solder to solder
Medium Temp 170°C
(C10-686926-000)
22.39
22.42
(C10-686929-000)
C10-718791-000
5 Pin / 5 Socket HT
High Temp 200°C
10-730945-000
17 Socket
High Temp 200°C
AMPHENOL
®
PART
10-730944-000
10-730945-000
C10-686926-000
C10-686909-000
C10-686910-000
C10-686927-000
C10-686928-000
C10-686929-000
C10-838603-000
C10-838602-000
C10-718791-000
DESCRIPTION
MALE 17 WAY - HT
FEMALE 17 WAY - HT
10 PIN SOLDER TO SOLDER HT
6 PIN - 4 SOCKET HT
4 PIN - 6 SOCKET HT
6 PIN - 4 SOCKET
4 PIN - 6 SOCKET
10 PIN SOLDER TO SOLDER
15 WAY PIN - HT
15 WAY SOCKET - HT
5 PIN / 5 SOCKET HT OD 15mm
Max
Temp
200°C
200°C
200°C
200°C
200°C
170°C
170°C
170°C
200°C
200°C
200°C
Pressure
20K PSI
20K PSI
20K PSI
20K PSI
20K PSI
10K PSI
10K PSI
10K PSI
20K PSI
20K PSI
10K PSI
Contact
Size
22 AWG
22 AWG
20 AWG
20 AWG
20 AWG
20 AWG
20 AWG
20 AWG
22 AWG
22 AWG
22 AWG
Contact
Resistance
2.5 Milli Ω @ 1 AMP
2.5 Milli Ω @ 1 AMP
2.5 Milli Ω @ 1 AMP
2.5 Milli Ω @ 1 AMP
2.5 Milli Ω @ 1 AMP
2.5 Milli Ω @ 1 AMP
2.5 Milli Ω @ 1 AMP
2.5 Milli Ω @ 1 AMP
2.5 Milli Ω @ 1 AMP
Insulation
Resistance
10 GΩ @ 1000 vdc
10 GΩ @ 1000 vdc
10 GΩ @ 1000 vdc
10 GΩ @ 1000 vdc
10 GΩ @ 1000 vdc
10 GΩ @ 1000 vdc
10 GΩ @ 1000 vdc
10 GΩ @ 1000 vdc
10 GΩ @ 1000 vdc
10 GΩ @ 1000 vdc
10 GΩ @ 1000 vdc
Voltage
500 vdc
500 vdc
600 vdc
600 vdc
600 vdc
600 vdc
600 vdc
600 vdc
500 vdc
500 vdc
500 vdc
OD
19
19
19
19
19
19
19
19
19
19
15
Body
Length
23,9
23,9
35,5
39,2
39,2
39,2
39,2
35,5
23,9
23,9
39,2
Overall
Length
34
30
48
45
45
45
45
48
34
30
45
For additional information on the KTK connectors consult Amphenol Industrial Operations.
