Datasheet
2
Rev. 1.0, 2008-07-07
TrilithIC
BTM7710GP
1
Features
•
•
•
•
Overview
Quad D-MOS switch driver
Free configurable as bridge or quad-switch
Optimized for DC motor management applications
Low
R
DS ON
High side: 70 mΩ typ. @ 25°C, 165 mΩ max. @ 110°C
Low side: 40 mΩ typ. @ 25°C, 75 mΩ max. @ 110°C
Peak current: typ. 15 A @ 25
°C
Very low quiescent current: typ. 5
μA
@ 25
°C
Thermally optimized power package
Operates up to 40 V
Load and GND-short-circuit-protection
Overtemperature shut down with hysteresis
Undervoltage detection with hysteresis
Status flag diagnosis
Internal clamp diodes
Isolated sources for external current sensing
Green Product (RoHS compliant)
AEC Qualified
•
•
•
•
•
•
•
•
•
•
•
•

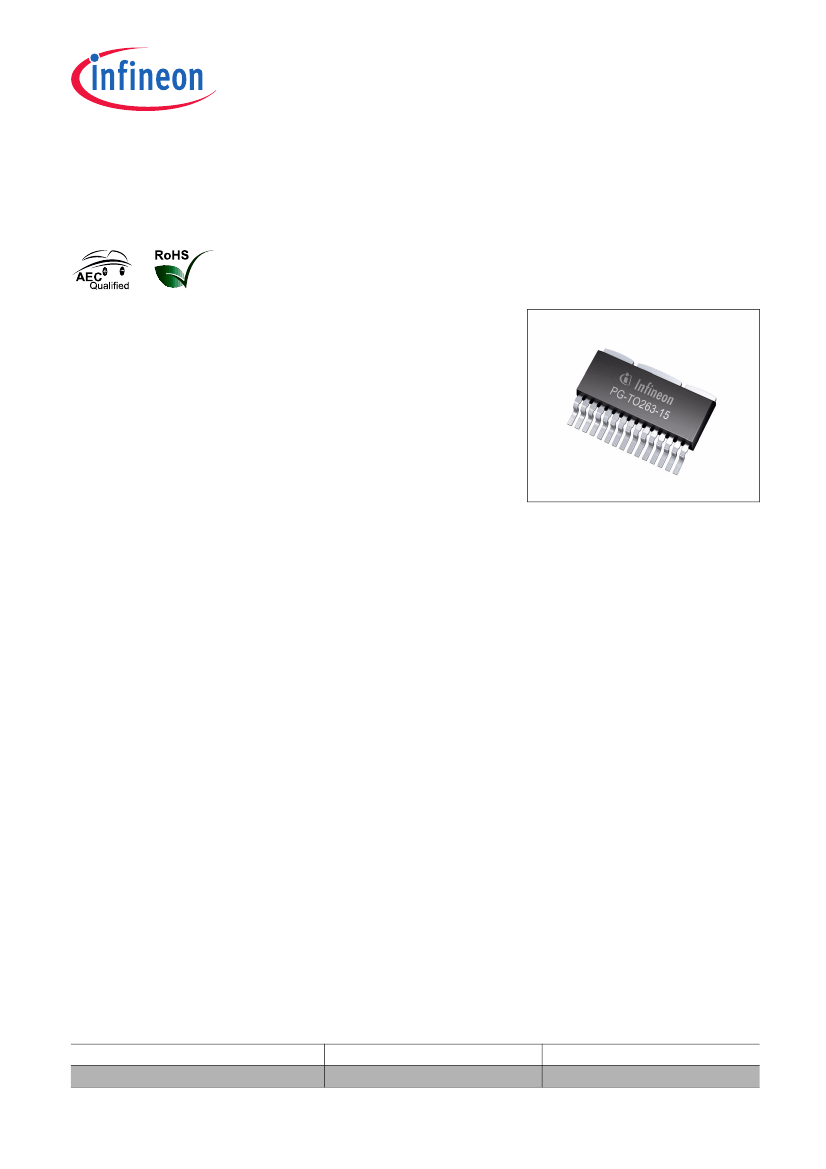

PG-TO263-15-1
Description
The
BTM7710GP
is part of the
TrilithIC
family containing three dies in one package: One double high-side switch
and two low-side switches. The drains of these three vertical DMOS chips are mounted on separated lead frames.
The sources are connected to individual pins, so the
BTM7710GP
can be used in H-bridge- as well as in any other
configuration. The double high-side switch is manufactured in SMART SIPMOS
®
technology which combines low
R
DS ON
vertical DMOS power stages with CMOS circuitry for control, protection and diagnosis. To achieve low
R
DS ON
and fast switching performance, the low-side switches are manufactured in S-FET logic level technology.
Type
BTM7710GP
Datasheet
Package
PG-TO263-15-1
3
Marking
BTM7710GP
Rev. 1.0, 2008-07-07
BTM7710GP
2
2.1
Pin Configuration
Pin Assignment
Molding
Compound
IL1
NC
SL1
NC
SH1
GND
IH1
DHVS
ST
IH2
SH2
NC
IL2
NC
SL2
1
Heat-Slug 1
2
18
3
4
5
Heat-Slug 2
6
7
8
9
10
11
12
Heat-Slug 3
13
16
14
15
DL2
17
DHVS
DL1
Figure 1
Pin Assignment BTM7710GP (Top View)
Datasheet
4
Rev. 1.0, 2008-07-07
BTM7710GP
Table 1
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Pin Definitions and Functions
Symbol Function
IL1
NC
SL1
NC
SH1
GND
IH1
DHVS
ST
IH2
SH2
NC
IL2
NC
SL2
DL2
DHVS
DL1
Analog input of low-side switch 1
Not connected
Source of low-side switch 1
Not connected
Source of high-side switch 1
Ground of high-side switches
Digital input of high-side switch 1
Drain of high-side switches and power supply voltage
Status; open Drain output
Digital input of high-side switch 2
Source of high-side switch 2
Not connected
Analog input of low-side switch 2
Not connected
Source of low-side switch 2
Drain of low-side switch 2
Heat-Slug 3 or Heat-Dissipator
Drain of high-side switches and power supply voltage
Heat-Slug 2 or Heat-Dissipator
Drain of low-side switch 1
Heat-Slug 1 or Heat-Dissipator
Pins written in
bold type
need power wiring.
Datasheet
5
Rev. 1.0, 2008-07-07
