Halogen and Antimony Free. "Green" Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP capable (Note 4)

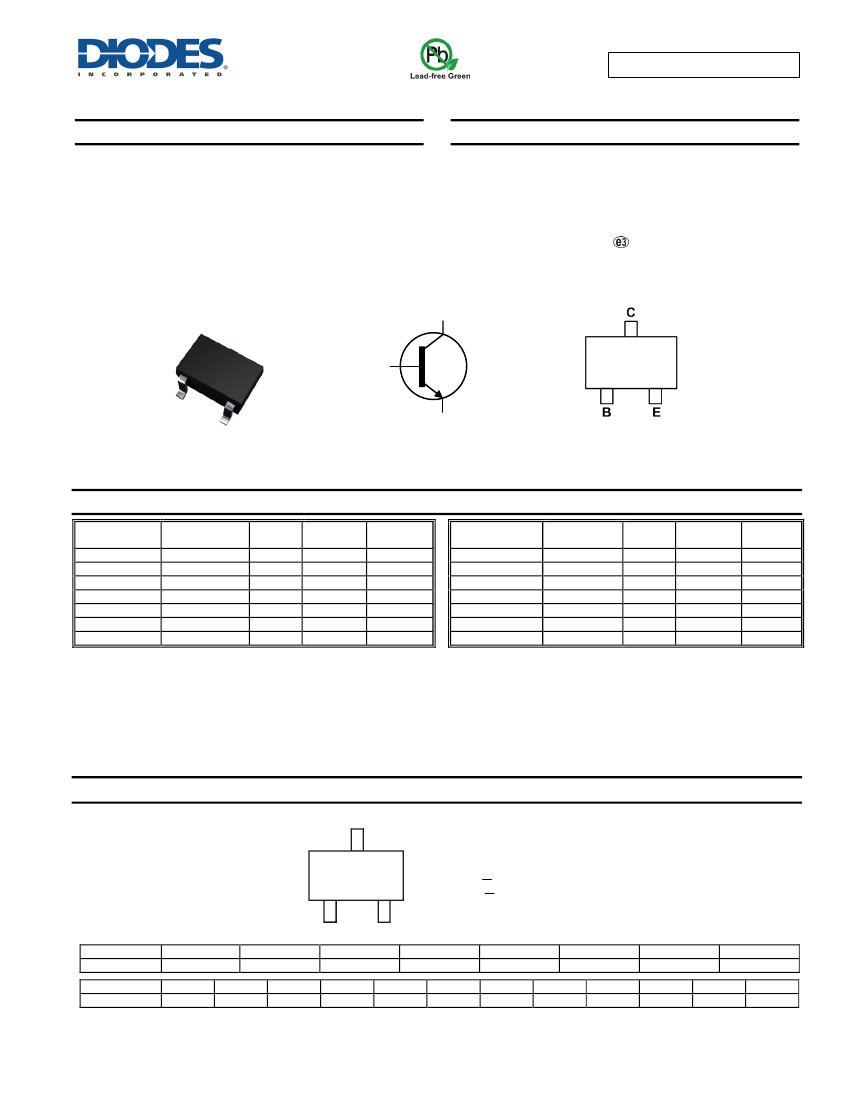

Mechanical Data
Case: SOT323
Case material: molded plastic, “Green” molding compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.006 grams (Approximate)
SOT323
C
B
E
Top View
Device Symbol
Top View
Pin-Out
Ordering Information
(Notes 4 & 5)
Product
BC846AW-7-F
BC846BW-7-F
BC846BWQ-7-F
BC846BW-13-F
BC847AW-7-F
BC847BW-7-F
BC847BW-13-F
Notes:
Compliance
AEC-Q101
AEC-Q101
Automotive
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
Marking
K1Q
K1R
K1R
K1R
K1Q
K1R
K1R
Reel Size
(inches)
7
7
7
13
7
7
13
Quantity
per Reel
3,000
3,000
3,000
10,000
3,000
3,000
10,000
Product
BC847BWQ-13-F
BC847CW-7-F
BC847CW-13-F
BC847CWQ-7-F
BC848AW-7-F
BC848BW-7-F
BC848CW-7-F
Compliance
Automotive
AEC-Q101
AEC-Q101
Automotive
AEC-Q101
AEC-Q101
AEC-Q101
Marking
K1R
K1M
K1M
K1M
K1Q
K1R
K1M
Reel Size
(inches)
13
7
13
7
7
7
7
Quantity
per Reel
10,000
3,000
10,000
3,000
3,000
3,000
3,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. Tape width is 8mm. For packaging details, go to our website at http://www.diodes.com/products/packages.html
