MUR30040CTR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MUR30040CTR

MUR30040CTR: DescriptionRectifiers SI S-FST RECOV 2TWR 50-600V300A400P/280R; CategoryDiscrete semiconductor diode; File Size373KB，4 Pages; ManufacturerGeneSiC; Websitehttp://www.genesicsemi.com/; Environmental Compliance

Download Datasheet Parametric View All

MUR30040CTR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MUR30040CTR	-	-	View	Buy Now

MUR30040CTR Overview

Rectifiers SI S-FST RECOV 2TWR 50-600V300A400P/280R

MUR30040CTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	GeneSiC
package instruction	R-PUFM-X2
Reach Compliance Code	compliant
application	SUPER FAST RECOVERY
Shell connection	ANODE
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-30 code	R-PUFM-X2
Maximum non-repetitive peak forward current	2750 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	150 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	400 V
Maximum reverse current	25 µA
Maximum reverse recovery time	0.11 µs
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER

Preview

Download Datasheet

View All

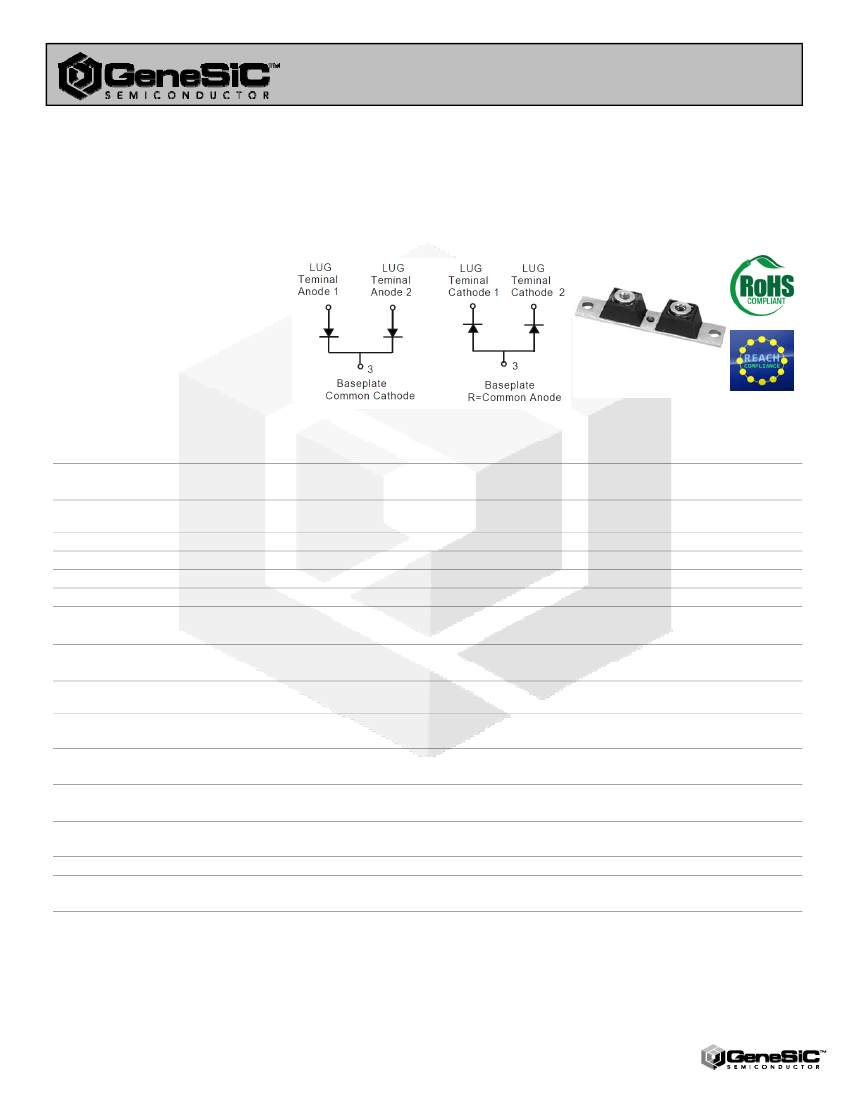

MUR30040CT thru MUR30060CTR

Silicon Super Fast

Recovery Diode

Features

• High Surge Capability

• Types from 400 to 600 V V

RRM

• Not ESD Sensitive

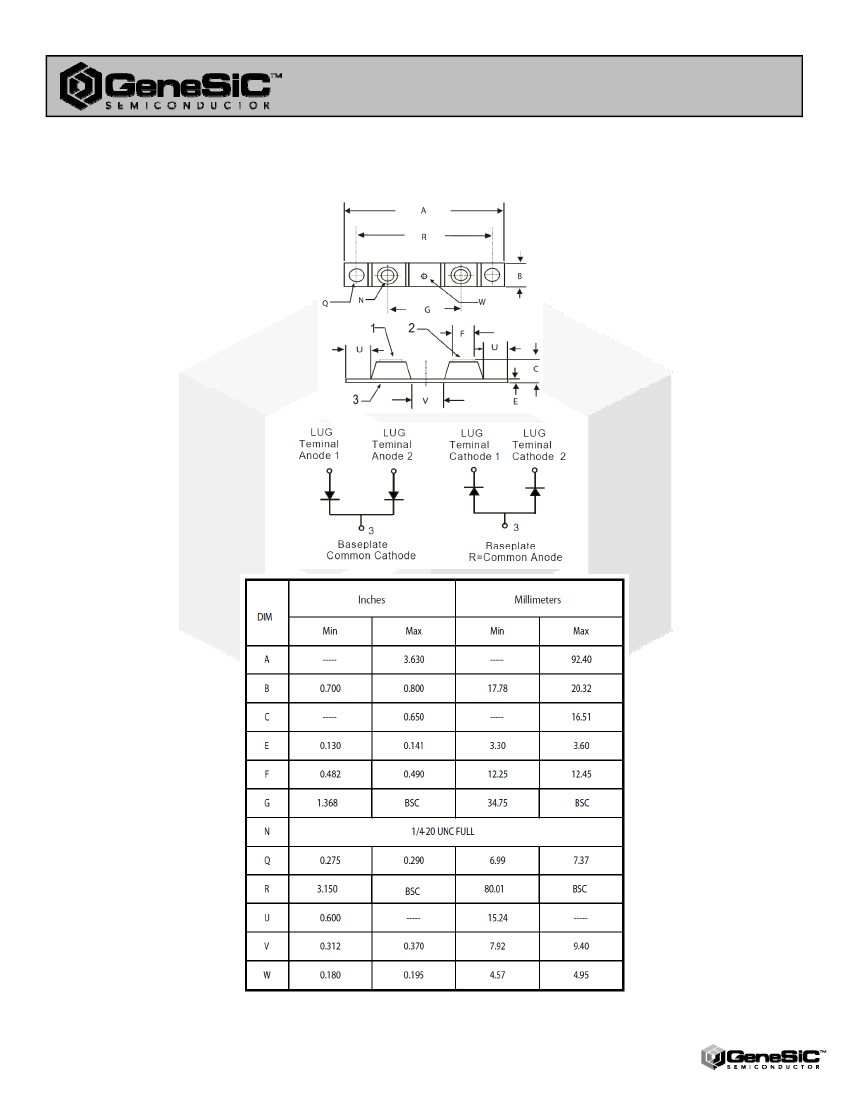

Twin Tower Package

RRM

= 400 V - 600 V

F(AV)

= 300 A

Maximum ratings, at T

= 25 °C, unless otherwise specified ("R" devices have leads reversed)

Parameter

Repetitive peak reverse voltage

RMS reverse voltage

DC blocking voltage

Operating temperature

Storage temperature

Symbol

RRM

RMS

stg

Conditions

MUR30040CT(R)

400

280

400

-55 to 150

MUR30060CT(R)

600

420

600

-55 to 150

Unit

°C

Electrical characteristics, at Tj = 25 °C, unless otherwise specified

Parameter

Average forward current (per pkg)

Peak forward surge current (per

leg)

Maximum instantaneous forward

voltage (per leg)

Maximum reverse current at rated

DC blocking voltage (per leg)

Maximum reverse recovery time

(per leg)

Symbol

F(AV)

FSM

Conditions

= 125 °C

= 8.3 ms, half sine

= 150 A, T

= 25 °C

= 125 °C

=0.5 A, I

=1.0 A,

= 0.25 A

MUR30040CT(R)

300

2750

1.3

110

MUR30060CT(R)

300

2750

1.7

150

Unit

μA

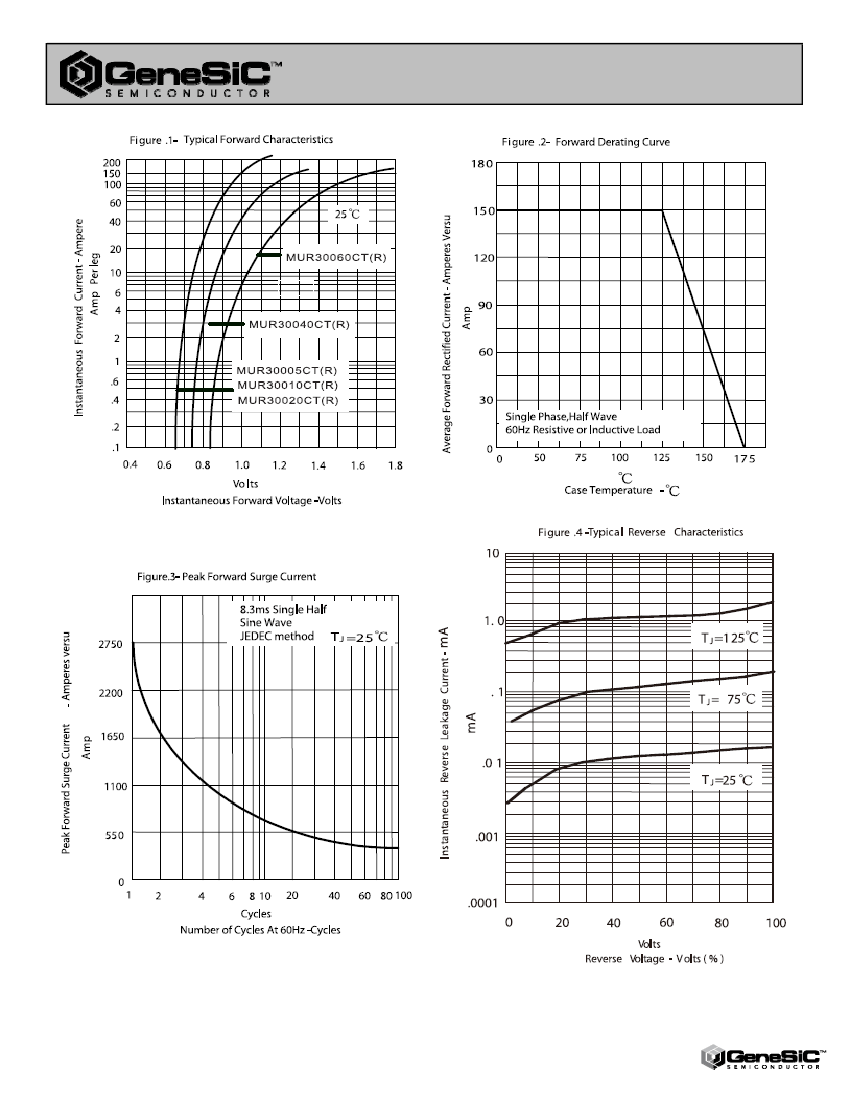

Thermal characteristics

Maximum thermal resistance,

junction - case (per leg)

ΘJC

0.40

°C/W

www.genesicsemi.com/silicon-products/super-fast-recovery-rectifiers/
