NJU7021/22/24
LOW VOLTAGE C-MOS OPERATIONAL AMPLIFIER
■ GENERAL DESCRIPTION
The NJU7021,22 and 24 are single, dual and quad C-MOS
Operational Amplifiers operated on a single-power-supply, low
voltage and low operating current.
The minimum operating voltage is 3V and the output stage
permits output signals to swing between both of the supply rails.
The input bias current is as low as less than 1pA,consequently
the very small signal around the ground level can be amplified.
Furthermore, the operating current is also as low as 150μA
( typ ) per circuit, therefore it can be applied especially to battery
operated items.
■ FEATURES
● Single-Power-Supply
● Wide Operating Voltage
( V
DD
=3~16V )
● Wide Output Swing Range
( V
OM
=9.98V typ. @ V
DD
=10V )
● Low Operating Current
( 150μA/circuit )
● Low Bias Current
( I
IB
=1pA typ. )
● Internal Compensation Capacitor
● External Offset Null Adjustment ( Only NJU7021 )
● Package Outline
DMP/SSOP8 ( NJU7021 )
DIP/DMP8 ( NJU7022 )
DIP/DMP/SSOP14 ( NJU7024 )
● C-MOS Technology

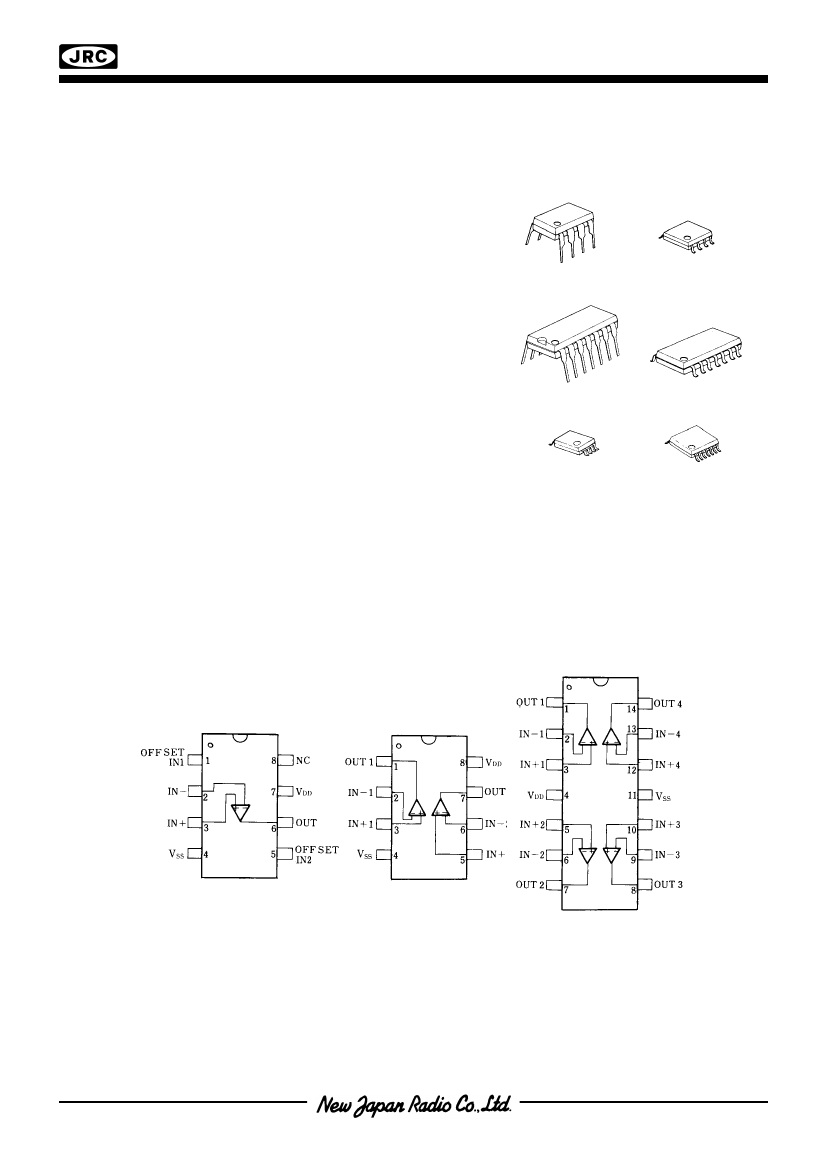

■ PIN CONFIGURATION
■ PACKAGE OUTLINE
NJU7022D
NJU7021M
NJU7022M
NJU7024D
NJU7024M
NJU7021V
NJU7024V
NJU7021M
NJU7021V
NJU7022D
NJU7022M
NJU7024D
NJU7024M
NJU7024V
Ver.2017-11-16
-1-
NJU7021/22/24
■ EQUIVALENT CIRCUIT
٭ IN1,IN2 are only for NJU7021 ( NJU7022/24 don’t have these terminals ).
-2-
Ver.2017-11-16
NJU7021/22/24
■ ABSOLUTE MAXIMUM RATINGS
( Ta=25˚C )
PARAMETER
Supply Voltage
Differential Input Voltage
Common Mode Input Voltage
Power Dissipation
Operating Temperature Range
Storage Temperature Range
SYMBOL
V
DD
V
ID
V
IC
P
D
T
opr
T
stg
RATINGS
18
± 18 ( note1 )
-0.3~18
( DIP14 ) 700
( DIP8 ) 500
( DMP8,14 ) 300
( SSOP14 ) 300
( SSOP8 ) 250
-20~+75
-40~+125
UNIT
V
V
V
mW
˚C
˚C
( note1 ) For supply voltage less than 18V, the absolute maximum input voltage is equal to the supply voltage.
■ ELECTRICAL CHARACTERISTICS
( Ta=25˚C,V
DD
=10V,R
L
=∞ )
PARAMETER
Input Offset Voltage
Input Offset Current
Input Bias Current
Input Impedance
Large Signal Voltage Gain
Input Common Mode Voltage Range
Maximum Output Swing Voltage
Common Mode Rejection Ratio
Supply Voltage Rejection Ratio
Operating Current/Circuit
Slew Rate
Unity Gain Bandwidth
SYMBOL
V
IO
I
IO
I
IB
R
IN
A
V
V
ICM
V
OM
CMR
SVR
I
DD
SR
F
t
TEST CONDITION
R
S
=50Ω
MIN.
-
-
-
-
80
0~9
9.80
60
60
-
-
-
TYP.
-
1
1
1
95
-
9.98
75
75
150
0.40
0.4
MAX.
10
-
-
-
-
-
-
-
-
300
-
-
UNIT
mV
pA
pA
TΩ
dB
V
V
dB
dB
μA
V/μs
MHz
R
L
=1MΩ
A
V
=40dB,C
L
=10pF
■ OFFSET ADJUSTMENT CIRCUIT
( Only For NJU7021 )
Ver.2017-11-16
-3-
NJU7021/22/24

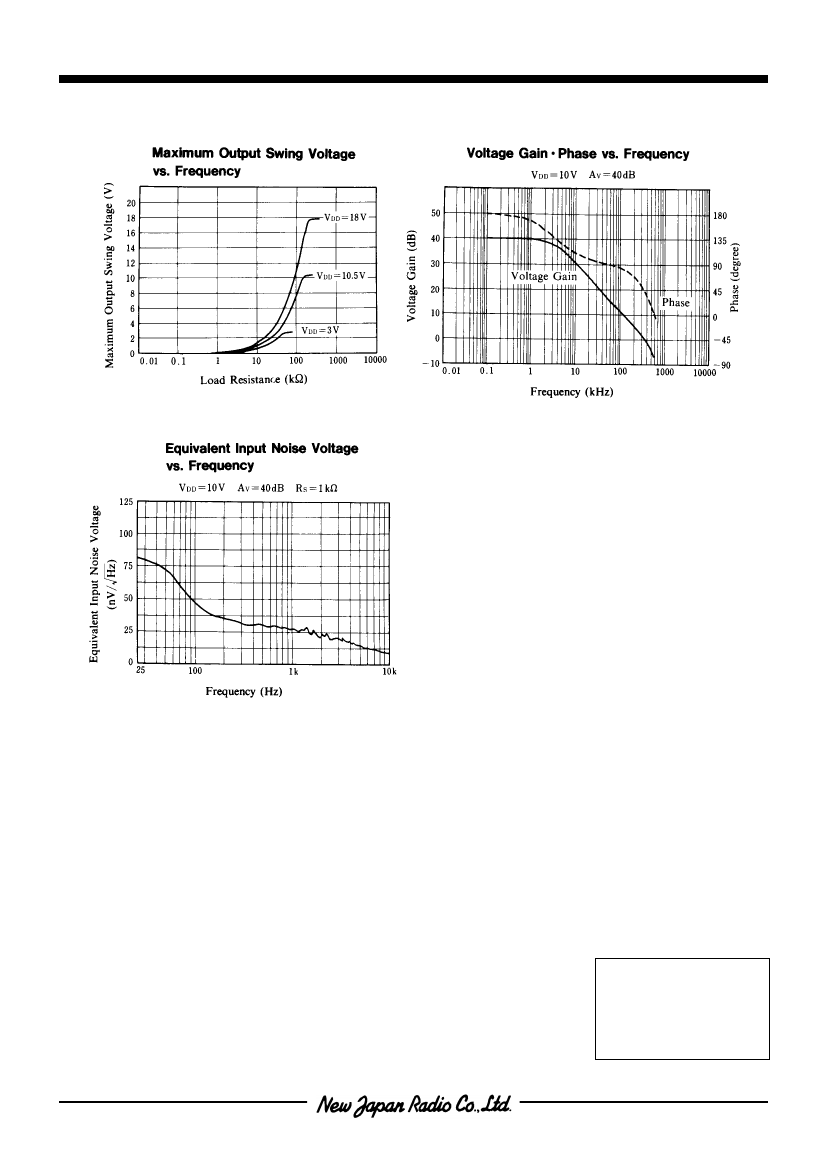

■ TYPICAL CHARACTERISTICS
-4-
Ver.2017-11-16
NJU7021/22/24

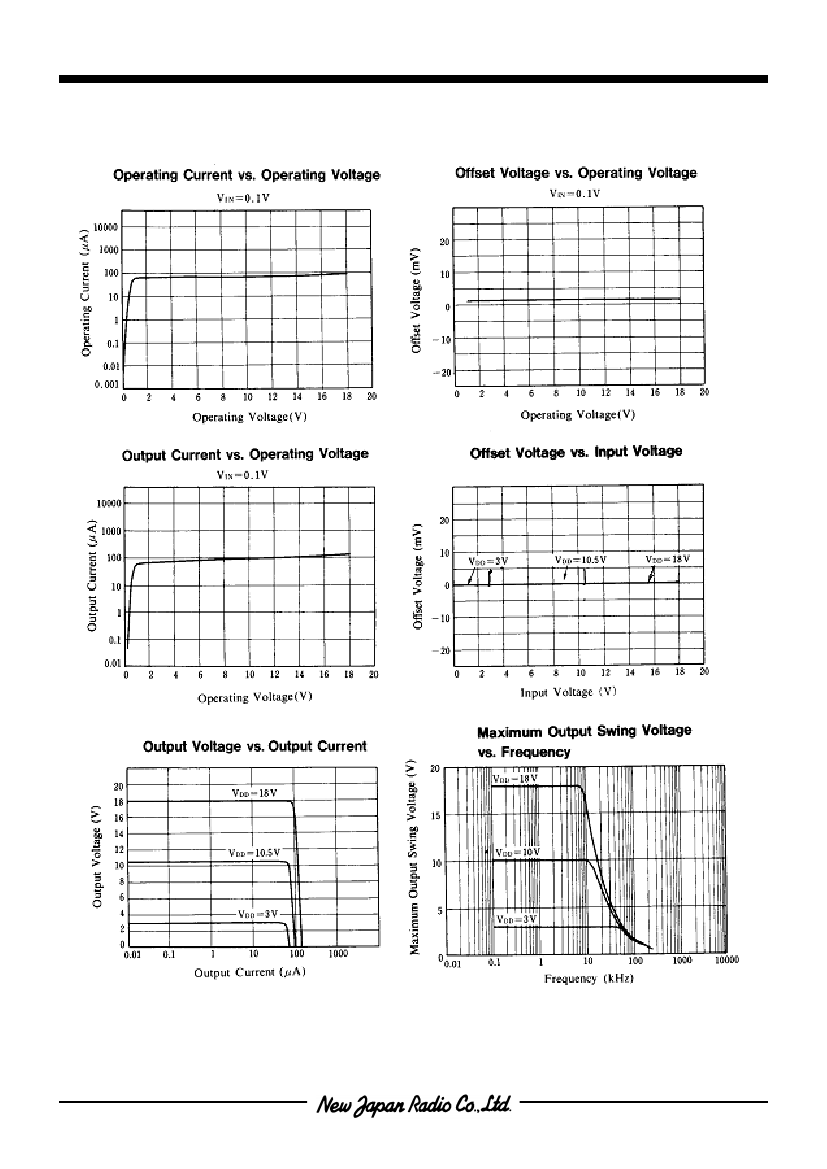

■ TYPICAL CHARACTERISTICS
[CAUTION]
The specifications on this databook are only
given for information , without any guarantee
as regards either mistakes or omissions. The
application circuits in this databook are
described only to show representative usages
of the product and not intended for the
guarantee or permission of any right including
the industrial rights.
Ver.2017-11-16
-5-
