NBC12439, NBC12439A
3.3V/5V Programmable PLL
Synthesized Clock
Generator
50 MHz to 800 MHz
Description
http://onsemi.com

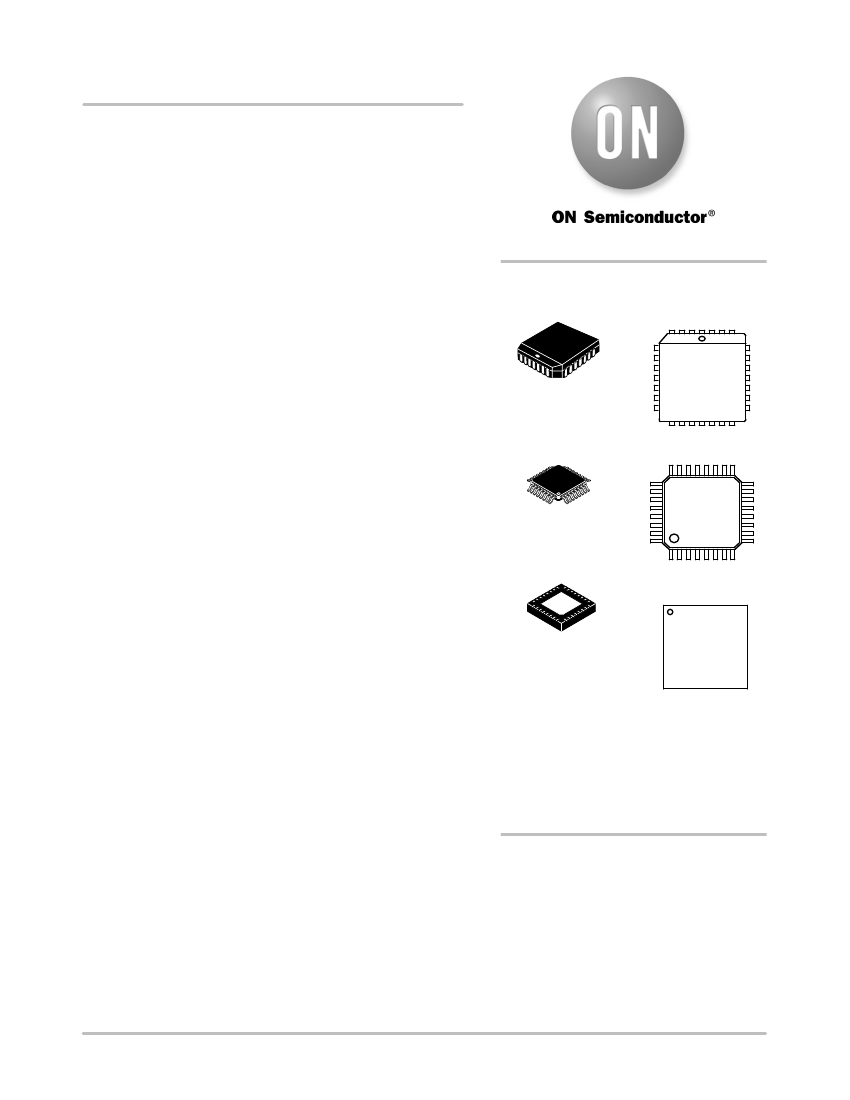

MARKING
DIAGRAMS
1 28
The NBC12439 and NBC12439A are general purpose, PLL based
synthesized clock sources. The VCO will operate over a frequency
range of 400 MHz to 800 MHz. The VCO frequency is sent to the
N−output divider, where it can be configured to provide division ratios
of 1, 2, 4 or 8. The VCO and output frequency can be programmed
using the parallel or serial interfaces to the configuration logic. Output
frequency steps of 16 MHz, 8 MHz, 4 MHz, or 2 MHz can be
achieved using a 16 MHz crystal, depending on the output divider
settings. The PLL loop filter is fully integrated and does not require
any external components.
Features
NBC12439xG
PLCC−28
FN SUFFIX
CASE 776
AWLYYWW
•
•
•
•
•
•
•
•
•
Best−in−Class Output Jitter Performance,
±20
ps Peak−to−Peak
50 MHz to 800 MHz Programmable Differential PECL Outputs
Fully Integrated Phase−Lock−Loop with Internal Loop Filter
LQFP−32
FA SUFFIX
CASE 873A
NBC12
439x
AWLYYWWG
Parallel Interface for Programming Counter and Output Dividers
During Powerup
•
Minimal Frequency Overshoot
Serial 3−Wire Programming Interface
Crystal Oscillator Inputs 10 MHz to 20 MHz
Operating Range: V
CC
= 3.135 V to 5.25 V
CMOS and TTL Compatible Control Inputs
1
1
32
QFN32
MN SUFFIX
CASE 488AM
x
A
WL, L
YY, Y
WW, W
G or
G
NBC12
439x
AWLYYWWG
G
Pin and Function Compatible with Motorola MC12439 and
MPC9239
•
Powerdown of PECL Outputs (B16)
•
0°C to 70°C Ambient Operating Temperature (NBC12439)
•
−40°C
to 85°C Ambient Operating Temperature (NBC12439A)
•
Pb−Free Packages are Available
= Blank or A
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 17 of this data sheet.
©
Semiconductor Components Industries, LLC, 2009
January, 2009
−
Rev. 14
1
Publication Order Number:
NBC12439/D
NBC12439, NBC12439A
The following gives a brief description of the functionality of the NBC12439 and NBC12349A Inputs and Outputs. Unless
explicitly stated, all inputs are CMOS/TTL compatible with either pull−up or pulldown resistors. The PECL outputs are
capable of driving two series terminated 50
W
transmission lines on the incident edge.
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Pin Name
Function
Description
INPUTS
XTAL1, XTAL2
S_LOAD*
Crystal Inputs
CMOS/TTL Serial Latch Input
(Internal Pulldown Resistor)
CMOS/TTL Serial Data Input
(Internal Pulldown Resistor)
CMOS/TTL Serial Clock Input
(Internal Pulldown Resistor)
CMOS/TTL Parallel Latch Input
(Internal Pullup Resistor)
These pins form an oscillator when connected to an external series−resonant
crystal.
This pin loads the configuration latches with the contents of the shift registers.
The latches will be transparent when this signal is HIGH; thus, the data must be
stable on the HIGH−to−LOW transition of S_LOAD for proper operation.
This pin acts as the data input to the serial configuration shift registers.
This pin serves to clock the serial configuration shift registers. Data from S_DATA
is sampled on the rising edge.
This pin loads the configuration latches with the contents of the parallel inputs
.The latches will be transparent when this signal is LOW; therefore, the parallel
data must be stable on the LOW−to−HIGH transition of P_LOAD for proper opera-
tion.
These pins are used to configure the PLL loop divider. They are sampled on the
LOW−to−HIGH transition of P_LOAD. M[6] is the MSB, M[0] is the LSB.
These pins are used to configure the output divider modulus. They are sampled
on the LOW−to−HIGH transition of P_LOAD.
Active HIGH Output Enable. The Enable is synchronous to eliminate possibility of
runt pulse generation on the FOUT output. When Disabled, FOUT goes LOW and
FOUT.
This pin can be used as the PLL Reference
This pin selects between the crystal and the FREF_EXT source for the PLL refer-
ence signal. A HIGH selects the crystal input.
PWR_DOWN forces the FOUT outputs to synchronously reduce frequency by a
factor of 16.
S_DATA*
S_CLOCK*
P_LOAD**
M[6:0]**
N[1:0]**
OE**
CMOS/TTL PLL Loop Divider
Inputs (Internal Pullup Resistor)
CMOS/TTL Output Divider Inputs
(Internal Pullup Resistor)
CMOS/TTL Output Enable Input
(Internal Pullup Resistor)
CMOS/TTL Input
(Internal Pulldown Resistor)
CMOS/TTL Input
(Internal Pullup Resistor)
CMOS/TTL Input
(Internal Pulldown Resistor)
FREF_EXT*
XTAL_SEL**
PWR_DOWN
OUTPUTS
FOUT, FOUT
TEST
POWER
V
CC
PLL_V
CC
GND
−
Positive Supply for the Logic
Positive Supply for the PLL
Negative Power Supply
Exposed Pad for QFN−32 only
The positive supply for the internal logic and output buffer of the chip, and is con-
nected to +3.3 V or +5.0 V.
This is the positive supply for the PLL and is connected to +3.3 V or +5.0 V.
These pins are the negative supply for the chip and are normally all connected to
ground.
The Exposed Pad (EP) on the QFN−32 package bottom is thermally connected to
the die for improved heat transfer out of package. The exposed pad must be at-
tached to a heat−sinking conduit. The pad is electrically connected to GND.
PECL Differential Outputs
CMOS/TTL Output
These differential, positive−referenced ECL signals (PECL) are the outputs of the
synthesizer.
The function of this output is determined by the serial configuration bits T[2:0].
* When left Open, these inputs will default LOW.
** When left Open, these inputs will default HIGH.
Table 3. PIN FUNCTION DESCRIPTION
http://onsemi.com
4
NBC12439, NBC12439A
Table 4. ATTRIBUTES
Characteristics
Internal Input Pulldown Resistor
Internal Input Pullup Resistor
ESD Protection
Human Body Model
Machine Model
Charged Device Model
Pb Pkg
PLCC
LQFP
QFN
Flammability Rating
Transistor Count
Meets or exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
1. For additional information, see Application Note AND8003/D.
Oxygen Index: 28 to 34
Level 1
Level 2
Level 1
Value
75 kW
37.5 kW
> 2 kV
> 150 V
> 1 kV
Pb−Free Pkg
Level 3
Level 2
Level 1
Moisture Sensitivity (Note 1)
UL 94 V−0 @ 0.125 in
2269
Table 5. MAXIMUM RATINGS
Symbol
V
CC
V
I
I
out
T
A
Positive Supply
Input Voltage
Output Current
Operating Temperature Range
Parameter
Condition 1
GND = 0 V
GND = 0 V
Continuous
Surge
NB12439
NB12439A
V
I
V
CC
Condition 2
Rating
6
6
50
100
0 to 70
−40
to +85
−65
to +150
0 lfpm
500 lfpm
Standard Board
0 lfpm
500 lfpm
Standard Board
0 lfpm
500 lfpm
2S2P
<3 sec @ 248°C
<3 sec @ 260°C
PLCC−28
PLCC−28
PLCC−28
LQFP−32
LQFP−32
LQFP−32
QFN−32
QFN−32
QFN−32
63.5
43.5
22 to 26
80
55
12 to 17
31
27
12
265
265
Unit
V
V
mA
mA
°C
T
stg
q
JA
q
JC
q
JA
q
JC
q
JA
q
JC
T
sol
Storage Temperature Range
Thermal Resistance (Junction−to−Ambient)
Thermal Resistance (Junction−to−Case)
Thermal Resistance (Junction−to−Ambient)
Thermal Resistance (Junction−to−Case)
Thermal Resistance (Junction−to−Ambient)
Thermal Resistance (Junction−to−Case)
Wave Solder
Pb
Pb−Free
°C
°C/W
°C/W
°C/W
°C/W
°C/W
°C/W
°C/W
°C/W
°C/W
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the
Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect
device reliability.
http://onsemi.com
5
