SY100EP16V
3.3V/5V Precision ECL Differential
Receiver/Driver
General Description
The SY100EP16V is a 3.3/5V, high-speed, fully
differential ECL Receiver/Driver that can process
clock signals as fast as 3GHz or data patterns up to
2.5Gbps.
The differential input includes an internal 75kΩ pull-
down resistor on both the true and complement inputs
and a 37.5kΩ pull-up resistor in the complement input
only. For AC-coupled input interface applications, an
integrated voltage reference (V
BB
) is provided to bias
for either single-ended use or for DC biasing when AC
coupling to the device. The V
BB
pin should be used
only as a bias for the SY100EP16V since its current
sink/source capability is limited. Whenever used, the
V
BB
pin should be bypassed to the most positive
supply voltage. The output is 800mV ECL, with fast
rise/fall times guaranteed to be less than 200ps.
When the inputs are left open, the internal input
clamps will force the Q output low.
The SY100EP16V operates from a 3.3V or 5V ±10%
supply and is guaranteed over the full industrial
temperature
range
(–40°C
to
+85°C).The
SY100EP16V is part of Micrel’s high-speed, Precision
Edge
®
product line.
Datasheets and support documentation can be found
on Micrel’s web site at:
www.micrel.com.
Precision Edge
®
Features
•
Precision 800mV ECL Receiver/Driver
•
100K ECL compatible I/O
•
Guaranteed AC performance over temperature and
voltage:
– DC-to > 2.5Gbps throughput
– 220ps typical propagation delay (D-to-Q)
– <200ps rise/fall times
•
PECL and NECL operation capability
•
PECL operating range: V
CC
= 3.0V to 5.5V with
V
EE
= 0V
•
NECL operating range: V
CC
= 0V with V
EE
= -3.0V to
-5.5V
•
3.3V ±10% or 5.0V ±10% power supply operation
•
Industrial temperature range: –40°C to +85°C
•
Available in 8-pin (2mm x 2mm) MLF
®
, 8-pin MSOP,
and 8-pin SOIC packages
Applications
•
•
•
•
All SONET clock and data distribution
Fibre Channel clock and data distribution
Gigabit Ethernet clock and data distribution
Backplane distribution

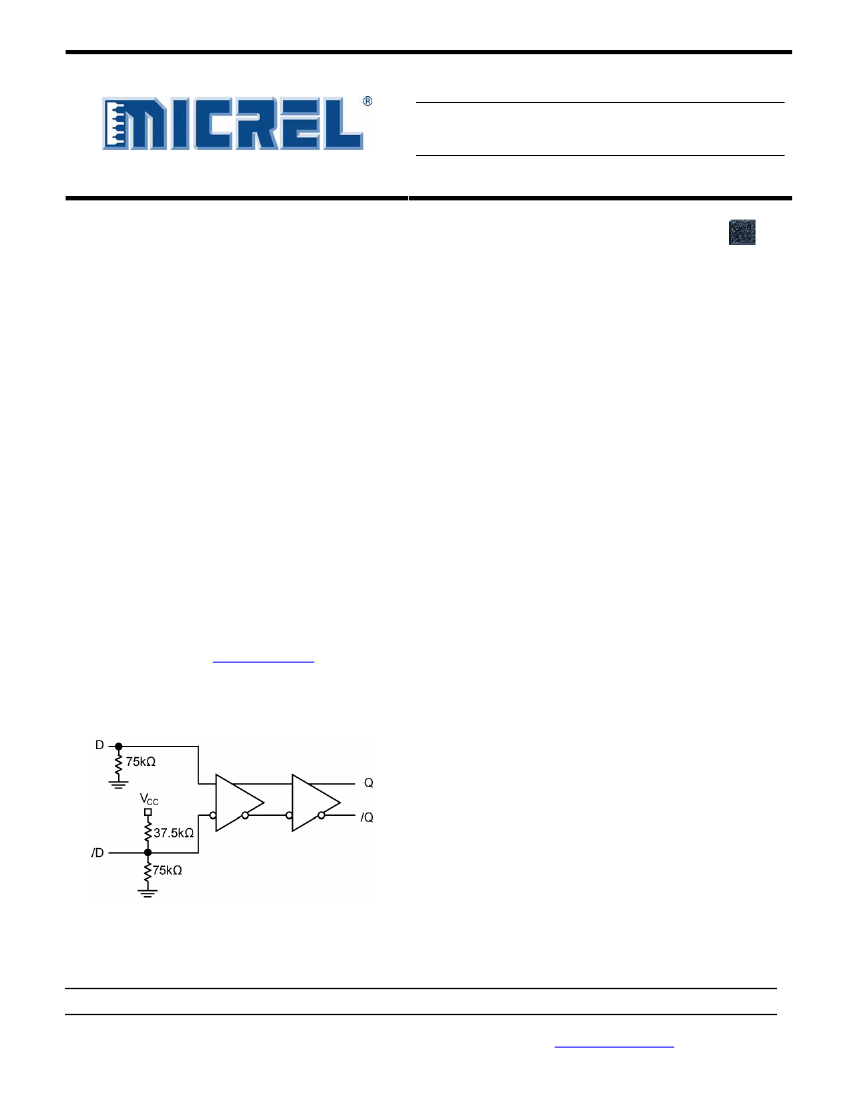

Functional Block Diagram
Markets
•
•
•
•
•
•
•
Storage
ATE
Test and measurement
Enterprise networking equipment
High-end servers
Access
Metro area network equipment
Precision Edge is a registered trademark of Micrel, Inc.
MLF and
MicroLeadFrame
are registered trademarks of Amkor Technology.
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com
December 2008
M9999-121808-A
hbwhelp@micrel.com
or (408) 955-1690
Micrel, Inc.
SY100EP16V
Ordering Information
(1)
Part Number
SY100EP16VMG
SY100EP16VMGTR
(2)
SY100EP16VZG
SY100EP16VZGTR
(2)
SY100EP16VKG
SY100EP16VKGTR
(2)
Notes:
1. Contact factory for die availability. Dice are guaranteed at T
A
= 25°C, DC Electricals only.
2. Tape and Reel.
Package
Type
MLF-8
MLF-8
SOIC-8
SOIC-8
MSOP-8
MSOP-8
Operating
Range
Industrial
Industrial
Industrial
Industrial
Industrial
Industrial
Package Marking
162 with
Pb-Free bar-line indicator
162 with
Pb-Free bar-line indicator
XEP16V with
Pb-Free bar-line indicator
XEP16V with
Pb-Free bar-line indicator
XP16V with
Pb-Free bar-line indicator
XP16V with
Pb-Free bar-line indicator
Lead
Finish
NiPdAu
Pb-Free
NiPdAu
Pb-Free
NiPdAu
Pb-Free
NiPdAu
Pb-Free
NiPdAu
Pb-Free
NiPdAu
Pb-Free
Pin Configuration
8-Pin MLF
®
(MLF-8)
8-pin SOIC (SOIC-8)
8-pin MSOP (MSOP-8)
Pin Description
Pin Number
2, 3
7, 6
4
Pin Name
D, /D
Q, /Q
V
BB
Pin Function
ECL Inputs. The D input has an internal 75kΩ pull-down resistor and the /D has an internal
37.5kΩ pull-up and a 75kΩ pull-down resistor.
ECL Outputs. Terminate with 50Ω to V
CC
-2V. See “Output Interface Applications” section for
more details.
Reference Output Voltage: This reference is typically used to bias the unused inverting input
for single-ended input applications, or as the termination point for AC-coupled differential
input applications. V
BB
reference value is approximately V
CC
- 1.42V, and tracks V
CC
1:1.
Maximum sink/source capability for V
BB
is 0.50mA. For single ended inputs, connect to the
unused input through a 50Ω resistor. Decouple the V
BB
pin with a 0.01µF capacitor to V
CC.
Positive Power Supply: Bypass with 0.1µF//0.01µF low ESR capacitors as close to the V
CC
pin as possible.
Negative Power Supply: V
EE
and exposed pad must be tied to the most negative supply.
Exposed pad is available for 8-pin MLF
®
package only.
8
5
V
CC
V
EE
December 2008
2
M9999-121808-A
hbwhelp@micrel.com
or (408) 955-1690
Micrel, Inc.
SY100EP16V
Absolute Maximum Ratings
(1)
Supply Voltage
PECL Mode (V
CC
) ..............................................+6V
NECL Mode (V
EE
) ..............................................–6V
Current (I
BB
)
Source or Sink current on V
BB
......................±0.5mA
Input Voltage (V
IN
)
PECL Mode .............................................. V
CC
to 0V
NECL Mode .............................................. 0V to V
EE
Output Current (I
OUT
)
Continuous.......................................................50mA
Surge .............................................................100mA
Lead Temperature (soldering, 20sec.) .................. 260°C
Storage Temperature (T
s
) ....................–65°C to +150°C
Operating Ratings
(2)
Supply Voltage (V
CC
)
PECL Mode (V
EE
= 0V) .....................+3.0V to +5.5V
Supply Voltage (V
EE
)
NECL Mode (V
CC
= 0V).......................-3.0V to -5.5V
Ambient Temperature (T
A
)....................–40°C to +125°C
Junction Thermal Resistance
MLF
®
(θ
JA
) .................................................... 90°C/W
MSOP (θ
JA
)................................................. 160°C/W
SOIC (θ
JA
) .................................................... 99°C/W
100EP DC Electrical Characteristics
(3)
V
CC
= 3.3V ±10%, V
EE
= 0V; T
A
= –40°C to +85°C, unless otherwise stated
(4)
-40°C
Symbol
I
EE
V
OH
V
OL
V
IH
V
IL
V
BB
V
IHCMR
Parameter
Power Supply Current
Output HIGH Voltage
Input HIGH Voltage
Input LOW Voltage
Output Voltage Reference
Input HIGH Voltage
Common Mode Range
(Differential Configuration)
(6)
I
IH
I
IL
Notes:
1. Permanent device damage may occur if absolute maximum ratings are exceeded. This is a stress rating only and functional operation is not
implied at conditions other than those detailed in the operational sections of this data sheet. Exposure to absolute maximum ratings conditions
for extended periods may affect device reliability.
2. The datasheet limits are not guaranteed if the device is operated beyond the operating ratings.
3. The circuit is designed to meet the DC specifications shown in the above table after thermal equilibrium has been established.
4. Input and output parameters vary 1:1 with V
CC
.
5. All loading with 50Ω to V
CC
–2.0V.
6. V
IHCMR
(min) varies 1:1 with V
EE
, V
IHCMR
(max) varies 1:1 with V
CC
. The V
IHCMR
range is referenced to the most positive side of the differential
input signal\
(5)
25°C
Max
30
2405
1605
2420
1675
2155
1355
2075
1355
1775
2.0
1875
Min
Typ
22
2280
1480
Max
30
2405
1605
2420
1675
1975
3.3
2155
1355
2075
1355
1775
2.0
Min
85°C
Typ
22
2280
1480
Max
30
2405
1605
2420
1675
1875
1975
3.3
Units
mA
mV
mV
mV
mV
mV
V
Min
2155
1355
2075
1355
1775
2.0
Typ
22
2280
1480
Output LOW Voltage
(5)
1875
1975
3.3
Input HIGH Current
Input LOW Current
D
/D
0.5
-150
150
0.5
-150
150
0.5
-150
150
µA
µA
December 2008
3
M9999-121808-A
hbwhelp@micrel.com
or (408) 955-1690
Micrel, Inc.
SY100EP16V
100EP DC Electrical Characteristics
(7)
V
CC
= 5V ±10%, V
EE
= 0V; T
A
= –40°C to +85°C, unless otherwise stated.
(8)
-40°C
Symbol
I
EE
V
OH
V
OL
V
IH
V
IL
V
BB
V
IHCMR
Parameter
Power Supply Current
Output HIGH Voltage
(9)
Output LOW Voltage
(9)
Input HIGH Voltage
(Single-Ended)
Input LOW Voltage
(Single-Ended)
Output Voltage Reference
Input HIGH Voltage
Common Mode Range
(Differential
Configuration)
(10)
I
IH
I
IL
Input HIGH Current
Input LOW Current
D
/D
0.5
-150
150
0.5
-150
150
0.5
-150
150
µA
µA
3855
3055
3775
3055
3475
2.0
3575
Min
Typ
22
3980
3180
Max
30
4105
3305
4120
3375
3675
5.0
3855
3055
3775
3055
3475
2.0
3575
Min
25°C
Typ
22
3980
3180
Max
30
4105
3305
4120
3375
3675
5.0
3855
3055
3775
3055
3475
2.0
3575
Min
85°C
Typ
22
3980
3180
Max
30
4105
3305
4120
3375
3675
5.0
Units
mA
mV
mV
mV
mV
mV
V
100EP DC Electrical Characteristics
(7)
V
CC
= 0V, V
EE
= -5.5V to –3.0V; T
A
= –40°C to +85°C, unless otherwise stated.
(8)
-40°C
Symbol
I
EE
V
OH
V
OL
V
IH
V
IL
V
BB
V
IHCMR
Parameter
Power Supply Current
Output HIGH Voltage
(9)
Output LOW Voltage
(9)
Input HIGH Voltage
(Single-Ended)
Input LOW Voltage
(Single-Ended)
Output Voltage Reference
Input HIGH Voltage
Common Mode Range
(Differential
(10)
Configuration)
I
IH
I
IL
Notes:
7.
8.
9.
The circuit is designed to meet the DC specifications shown in the above table after thermal equilibrium has been established.
Input and output parameters vary 1:1 with V
CC
.
All loading with 50Ω to V
CC
–2.0V.
25°C
Max
30
- 0895
-1695
-0.880
-1625
- 1145
- 1945
-1225
- 1945
-1525
-1425
Min
Typ
22
- 1020
-1820
Max
30
- 0895
-1695
-0.880
-1625
- 1325
0
- 1145
- 1945
-1225
- 1945
-1525
Min
85°C
Typ
22
- 1020
-1820
Max
30
- 895
-1695
-0.880
-1625
-1425
- 1325
0
Units
mA
mV
mV
mV
mV
mV
V
Min
- 1145
- 1945
-1225
- 1945
-1525
Typ
22
- 1020
-1820
-1425
- 1325
0
V
EE
+2.0
V
EE
+2.0
V
EE
+2.0
Input HIGH Current
Input LOW Current
D
/D
0.5
-150
150
50
-150
150
50
-150
150
µA
µA
10. V
IHCMR
(min) varies 1:1 with V
EE
, V
IHCMR
(max) varies 1:1 with V
CC
. The V
IHCMR
range is referenced to the most positive side of the differential
input signal.
December 2008
4
M9999-121808-A
hbwhelp@micrel.com
or (408) 955-1690
Micrel, Inc.
SY100EP16V
AC Electrical Characteristics
V
CC
= 0V, V
EE
= -5.5V to –3.0V; V
CC
= 3.0V to 5.5V, V
EE
= 0V; T
A
= –40°C to +85°C, unless otherwise stated.
(11)
-40°C
Symbol
f
MAX
t
PLH
t
PHL
t
Skew
t
JITTER
V
PP
t
r,
t
f
Notes:
11. Measured using a 750mV source, 50% duty cycle input. 50Ω to V
CC
-2V loading.
12. Skew is measured between outputs under identical transitions. It is defined only for differential operation where the delays are measured from
the cross point of the inputs to the cross point of the outputs.
13. Cycle-to-cycle jitter definition: the variation period between adjacent cycles over a random sample of adjacent cycle pairs. t
JITTER_CC
= T
n –
T
n+1
,
where T is the time between rising edges of the output signal.
25°C
Max
Min
3
280
150
Typ
2.5
4
220
280
3
160
Max
Min
85°C
Typ
2.5
4
240
300
Max
Units
Gbps
GHz
ps
Parameters
Maximum Frequency
Min
3
Typ
2.5
4
220
Propagation Delay to
Output Differential
D Q, /Q (Figure 1)
Duty Cycle Skew
(12)
Cycle-to-Cycle Jitter
(13)
150
5
0.2
150
70
800
120
20
1
1200
170
150
80
5
0.2
800
130
20
1
1200
180
150
100
5
0.2
800
150
20
1
1200
200
ps
ps
mV
ps
Input Voltage Swing
(Differential Configuration)
Output Rise/Fall Times
(20% to 80%)
Q, /Q
December 2008
5
M9999-121808-A
hbwhelp@micrel.com
or (408) 955-1690
京公网安备 11010802033920号
EEWORLD
