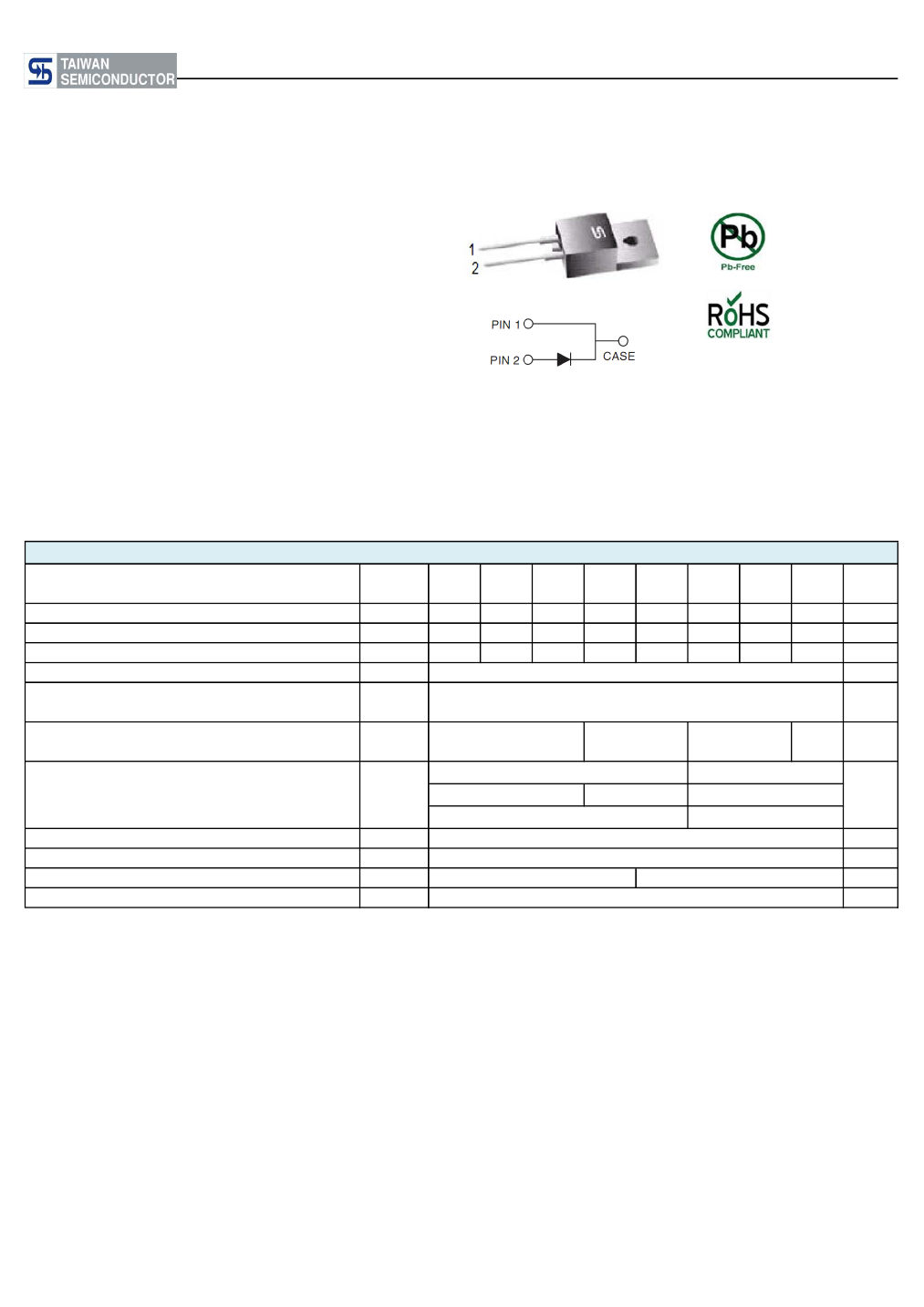

SRA820 thru SRA8150
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Low power loss, high efficiency
- Guardring for overvoltage protection
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Schottky Barrier Rectifier
TO-220AC
MECHANICAL DATA
Case:
TO-220AC
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test,
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
5 in-lbs maximum
Weight:
1.85 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@ 8A
Maximum reverse current @ Rated VR
T
J
=25
℃
T
J
=100
℃
T
J
=125℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
0.55
0.5
I
R
dV/dt
R
θJC
T
J
T
STG
- 55 to +125
- 55 to +150
15
10
SRA
820
20
14
20
SRA
830
30
21
30
SRA
840
40
28
40
SRA
850
50
35
50
8
150
0.70
0.85
0.1
-
5
10000
4
- 55 to +150
V/μs
O
SRA
860
60
42
60
SRA
890
90
63
90
SRA
8100
100
70
100
SRA
8150
150
105
150
UNIT
V
V
V
A
A
0.95
V
mA
-
Voltage rate of change (Rated V
R
)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: tp = 2.0
μs,
1.0KHz
Note 2: Pulse test with PW=300μs, 1% duty cycle
C/W
O
O
C
C
Document Number: DS_D1308049
Version: I13
SRA820 thru SRA8150
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
SRA8xx
(Note 1)
AEC-Q101
QUALIFIED
Prefix "H"
PACKING CODE
C0
GREEN COMPOUND
CODE
Suffix "G"
PACKAGE
TO-220AC
PACKING
50 / Tube
Note 1: "xx" defines voltage from 20V (SRA820) to 150V (SRA8150)
EXAMPLE
PREFERRED P/N PART NO.
SRA860 C0
SRA860 C0G
SRA860HC0
SRA860
SRA860
SRA860
H
AEC-Q101
QUALIFIED
PACKING CODE
C0
C0
C0
G
Green compound
AEC-Q101 qualified
GREEN COMPOUND
CODE
DESCRIPTION

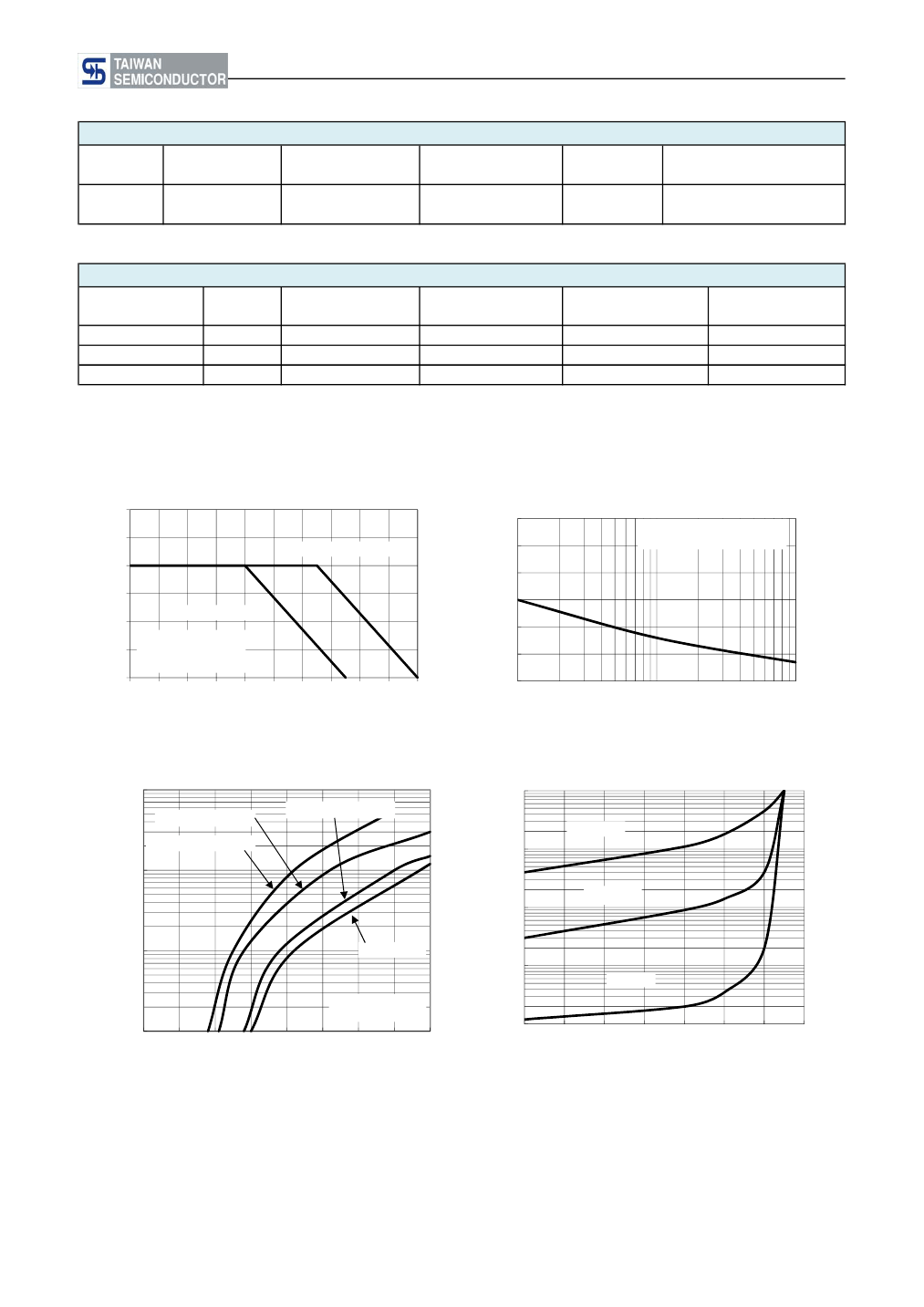

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT
PEAK FORWARD SURGE CURRENT (A)
300
250
200
150
100
50
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3ms Single Half Sine Wave
JEDEC Method
FIG.1 FORWARD CURRENT DERATING CURVE
12
10
SRA850-SRA8150
8
6
4
2
0
50
60
70
80
90
100
110
120
(
o
C)
130
140
150
CASE TEMPERATURE
SRA820-SRA840
RESISTIVE OF
INDUCTIVE LOAD
WITH HEATSINK
AVERAGE FORWARD
A
CURRENT (A)
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
100
SRA850-SRA860
INSTANTANEOUS FORWARD CURRENT(A)
SRA820-SRA840
10
SRA890-SRA8100
INSTANTANEOUS REVERSE CURRENT (mA)
10
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
TJ=100℃
1
0.1
TJ=75℃
1
SRA8150
0.01
TJ=25℃
Pluse Width=300μs
1% Duty Cycle
0.1
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
FORWARD VOLTAGE (V)
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Document Number: DS_D1308049
Version: I13
SRA820 thru SRA8150
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
10000
f=1.0MHz
Vsig=50mVp-p
CAPACITANCE (pF)
A
TRANSIENT THERMAL
IMPEDANCE (℃/W)
FIG. 6 TYPICAL TRANSIENT THERMAL IMPEDANCE
100
SRA820-SRA860
1000
SRA890-SRA8100
10
1
SRA8150
100
0.1
1
10
100
REVERSE VOLTAGE (V)
0.1
0.01
0.1
1
T-PULSE DURATION(s)
10
100
PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
-
2.62
2.80
0.68
3.54
14.60
0.00
13.19
4.95
4.42
1.14
5.84
2.20
0.35
Max
10.50
3.44
4.20
0.94
4.00
16.00
1.60
14.79
5.20
4.76
1.40
6.86
2.80
0.64
Unit (inch)
Min
-
0.103
0.110
0.027
0.139
0.575
0.000
0.519
0.195
0.174
0.045
0.230
0.087
0.014
Max
0.413
0.135
0.165
0.037
0.157
0.630
0.063
0.582
0.205
0.187
0.055
0.270
0.110
0.025
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
MARKING DIAGRAM
P/N
G
YWW
F
= Marking Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1308049
Version: I13
SRA820 thru SRA8150
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
