Bridge Rectifiers A 1PHFW 3A FAST 600V

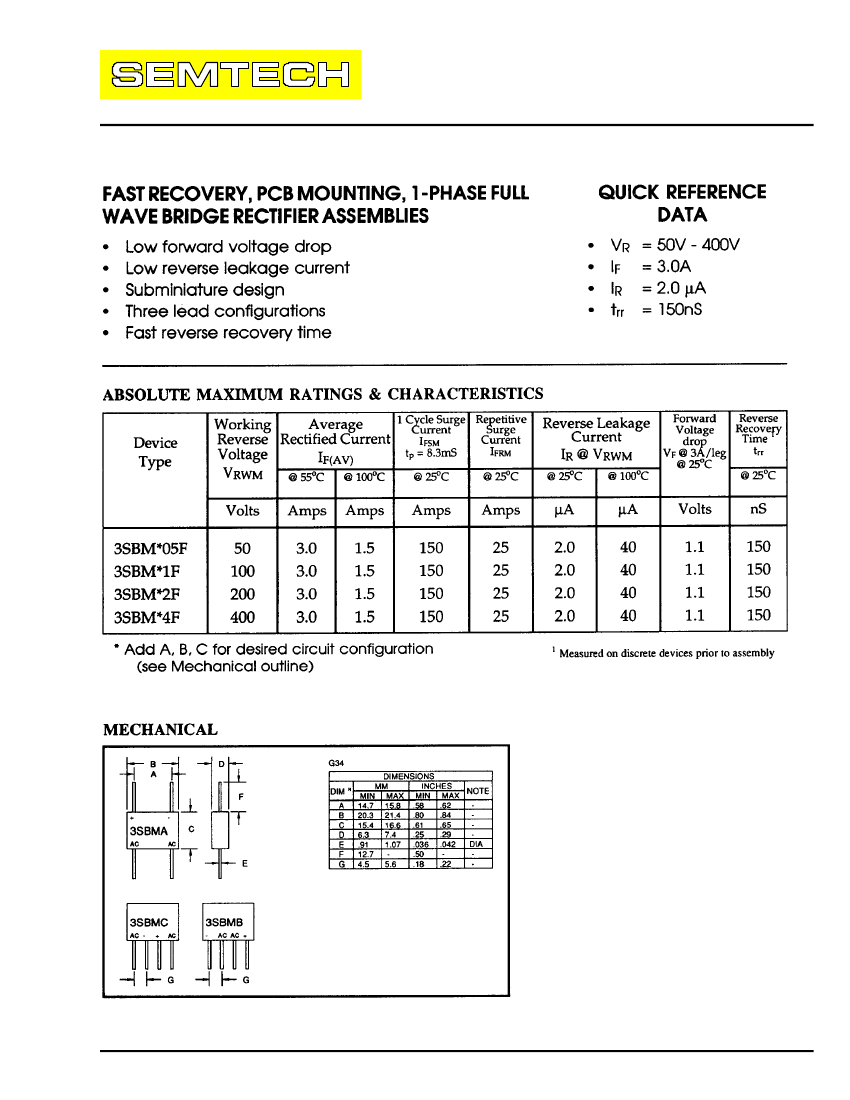

FAST RECOVERY 1 PHASE

SILICON BRIDGE RECTIFIERS

3SBM*05F

thru

3SBM*4F

January 16, 1998

TEL:805-498-2111 FAX:805-498-3804 WEB:http://www.semtech.com

652 MITCHELL ROAD NEWBURY PARK CA 91320

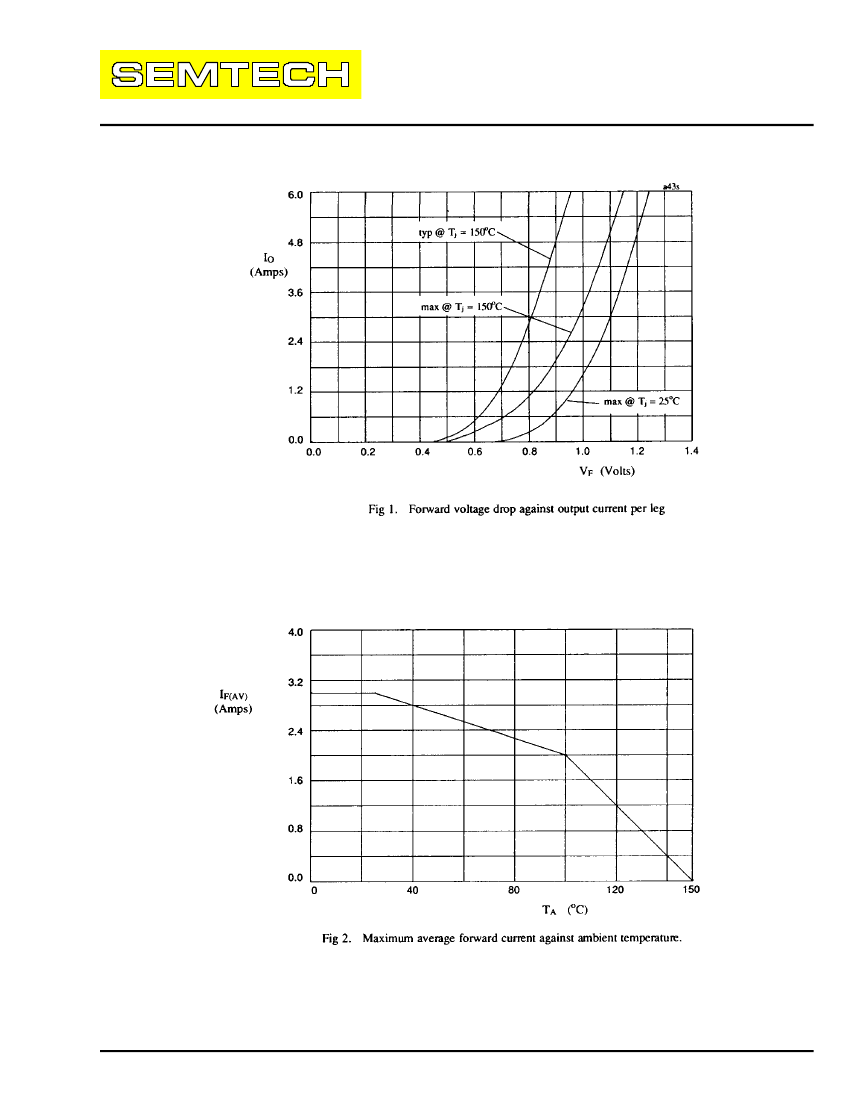

	3SBMB6F	3SBMB05F	3SBMB1F	3SBMA2F	3SBMC4F
Description	Bridge Rectifiers A 1PHFW 3A FAST 600V	Bridge Rectifiers A 1PHFW 3A FAST 50V	Bridge Rectifiers A 1PHFW 3A FAST 100V	Bridge Rectifiers A 1PHFW 3A FAST 200V	Bridge Rectifiers A 1PHFW 3A FAST 400V
Maker	-	SEMTECH	SEMTECH	SEMTECH	-
Reach Compliance Code	-	unknown	unknown	unknown	unknown
Factory Lead Time	-	18 weeks	18 weeks	18 weeks	18 weeks
Configuration	-	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	-	SILICON	SILICON	SILICON	SILICON
Diode type	-	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	-	1.1 V	1.1 V	1.1 V	1.1 V
JESD-30 code	-	R-PSIP-W4	R-PSIP-W4	R-PDIP-W4	R-PSIP-W4
Maximum non-repetitive peak forward current	-	150 A	150 A	150 A	150 A
Number of components	-	4	4	4	4
Phase	-	1	1	1	1
Number of terminals	-	4	4	4	4
Maximum operating temperature	-	150 °C	150 °C	150 °C	150 °C
Maximum output current	-	3 A	3 A	3 A	3 A
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	-	50 V	100 V	200 V	400 V
Maximum reverse recovery time	-	0.15 µs	0.15 µs	0.15 µs	0.15 µs
surface mount	-	NO	NO	NO	NO
Terminal form	-	WIRE	WIRE	WIRE	WIRE
Terminal location	-	SINGLE	SINGLE	DUAL	SINGLE
Base Number Matches	-	1	1	1	1
