XC9265C3014R-G

Description
Switching Voltage Regulators Ultra Low Power PFM DCDC Converter
Categorysemiconductor    Power management
File Size958KB,30 Pages
ManufacturerTOREX
Websitehttp://www.torex.co.jp/chinese/
Download Datasheet Parametric View All

XC9265C3014R-G Online Shopping

Suppliers Part Number Price MOQ In stock
XC9265C3014R-G - - View Buy Now

XC9265C3014R-G Overview

Switching Voltage Regulators Ultra Low Power PFM DCDC Converter

XC9265C3014R-G Parametric

Parameter NameAttribute value
Product CategorySwitching Voltage Regulators
ManufacturerTOREX
RoHSDetails
Mounting StyleSMD/SMT
Package / CaseUSP-6EL
Output Voltage3 V
Output Current200 mA
Number of Outputs1 Output
Input Voltage MAX6 V
TopologyBuck
Input Voltage MIN2 V
Switching Frequency-
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 85 C
PackagingReel
Input Voltage2 V to 6 V
Operating Supply Current800 nA
Operating Temperature Range- 40 C to + 85 C
Quiescent Current0.5 uA
ShutdownNo Shutdown
Factory Pack Quantity3000
Supply Voltage - Min2 V
TypeUltra Low Power Synchronous Step Down PFM DC/DC Converter

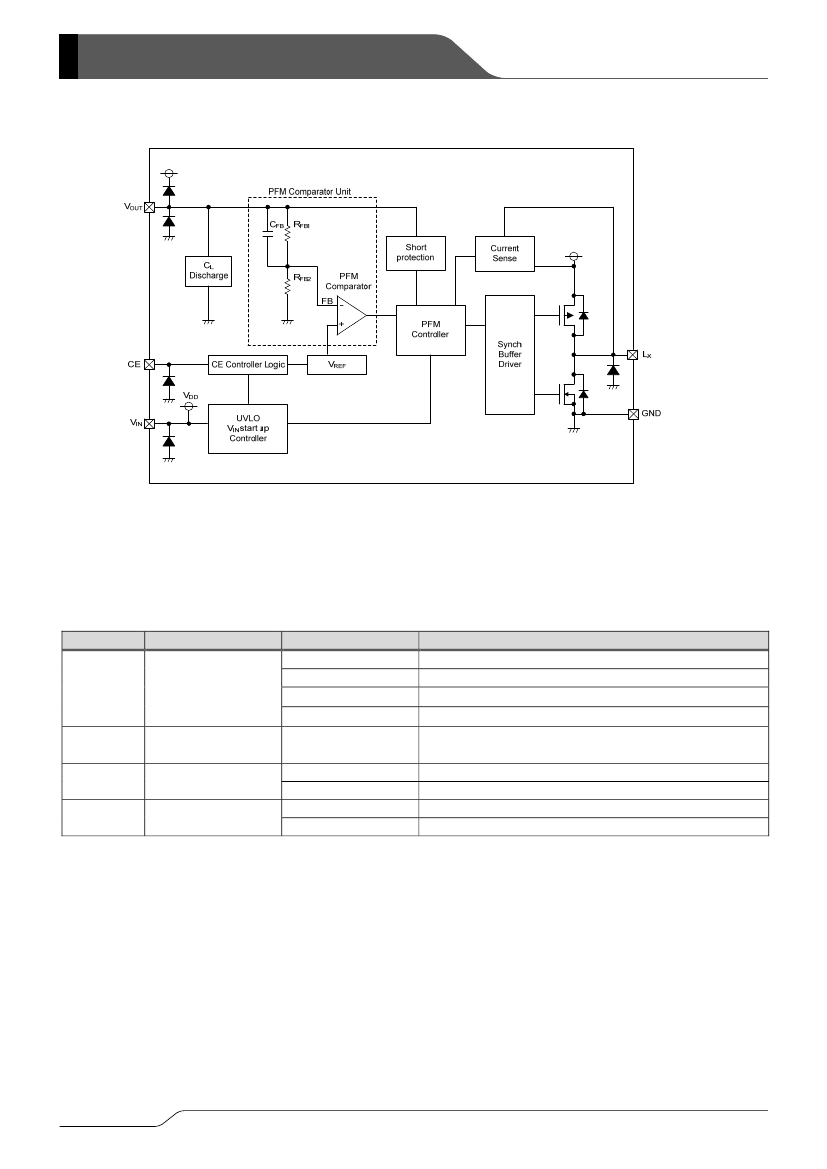

XC9265
Series
Ultra Low Power Synchronous Step-Down PFM DC/DC Converter
ETR05053-004
■GENERAL
DESCRIPTION
☆GreenOperation
Compatible
XC9265 series are Ultra Low Power synchronous-rectification type PFM step down DC/DC converters with a built-in 0.4Ω
(TYP.) Pch driver and 0.4Ω (TYP.) Nch synchronous switching transistor, designed to allow the use of ceramic capacitor.
PFM control enables a low quiescent current, making these products ideal for battery operated devices that require high
efficiency and long battery life.
Only inductor, C
IN
and C
L
capacitors are needed as external parts to make a step down DC/DC circuit.
Operation voltage range is from 2.0V to 6.0V. This product has fixed output voltage from 1.0V to 4.0V(accuracy:
±2.0%)
in
increments of 0.05V.
During stand-by, all circuits are shutdown to reduce consumption to as low as 0.1μA(TYP.) or less.
With the built-in UVLO (Under Voltage Lock Out) function, the internal P-channel MOS driver transistor is forced OFF when input
voltage gets lower than UVLO detection voltage. Besides, XC9265 series has UVLO release voltage of 1.8V (Typ.).
The product with C
L
discharge function can discharge C
L
capacitor during stand-by mode due to the internal resistance by turning
on the internal switch between V
OUT
-GND. This enables output voltage restored to GND level fast.
■APPLICATIONS
Wearable Devices
Smart meters
Bluetooth units
Energy Harvest devices
Back up power supply circuits
Portable game consoles
Devices with 1 Lithium cell
■FEATURES
Input Voltage Range
Output Voltage Setting
Output Current
Driver Transistor
Supply Current
Control Method
High Speed Transient
PFM Switching Current
Function
:
:
:
:
:
:
:
:
:
2.0V~6.0V
1.0V~4.0V (±2.0%, 0.05V step increments)
200mA(XC9265A/C)
50mA(XC9265B/D)
0.4Ω (Pch Driver Tr)
0.4Ω (Nch Synchronous rectifier Switch Tr)
0.50μA @ V
OUT(T)
=1.8V (TYP.)
PFM control
50mV (V
IN
=3.6V, V
OUT
=1.8V, I
OUT
=10μA→50mA)
330mA(XC9265A/C), 180mA(XC9265B/D)
Short Protection
C
L
Discharge(XC9265C/ D)
UVLO
Ceramic Capacitor Compatible
Operation Ambient Temperature
Package
Environmentally Friendly
:
:
:
-40½+85℃
SOT-25, USP-6EL
EU RoHS compliant, Pb Free
■TYPICAL
APPLICATION CIRCUIT
TYPICAL PERFORMANCE
CHARACTERISTICS
●Efficiency
vs. Output Current
XC9265B181xR-G(V
OUT
=1.8V)
L=10μH(VLF302512M-100M),C
IN
=10μF(LMK107BJ106MA),
C
L
=22μF(JMK107BJ226MA)
V
IN
L
V
IN
L
X
V
OUT
100
C
IN
(Ceramic)
CE
GND
V
OUT
C
L
(Ceramic)
Efficiency : EFFI (%)
80
V
IN
=4.2V
60
V
IN
=3.6V
V
IN
=2.7V
40
20
0
0.01
0.1
1
Output Current : I
OUT
(mA)
10
100
1/30
