B511F-2T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> B511F-2T

B511F-2T: DescriptionDiscrete Semiconductor Modules MOD DIODE SCR 25A 120VAC .250inQC; CategoryAnalog mixed-signal IC Trigger device; File Size705KB，4 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml; Environmental Compliance

Download Datasheet Parametric View All

B511F-2T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B511F-2T	-	-	View	Buy Now

B511F-2T Overview

Discrete Semiconductor Modules MOD DIODE SCR 25A 120VAC .250inQC

B511F-2T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	FLANGE MOUNT, R-XUFM-D6
Contacts	6
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN DIODE
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	60 mA
Maximum DC gate trigger voltage	2.5 V
Quick connection description	2G-2AK-CA-CK
Description of screw terminals	0
Maximum holding current	200 mA
JESD-30 code	R-XUFM-D6
Maximum leakage current	25000 mA
On-state non-repetitive peak current	325 A
Number of components	2
Number of terminals	6
Maximum on-state current	27000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Repeated peak reverse voltage	400 V
surface mount	NO
Terminal surface	COPPER
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

DataSheet

B-2T, B-2 Series

•

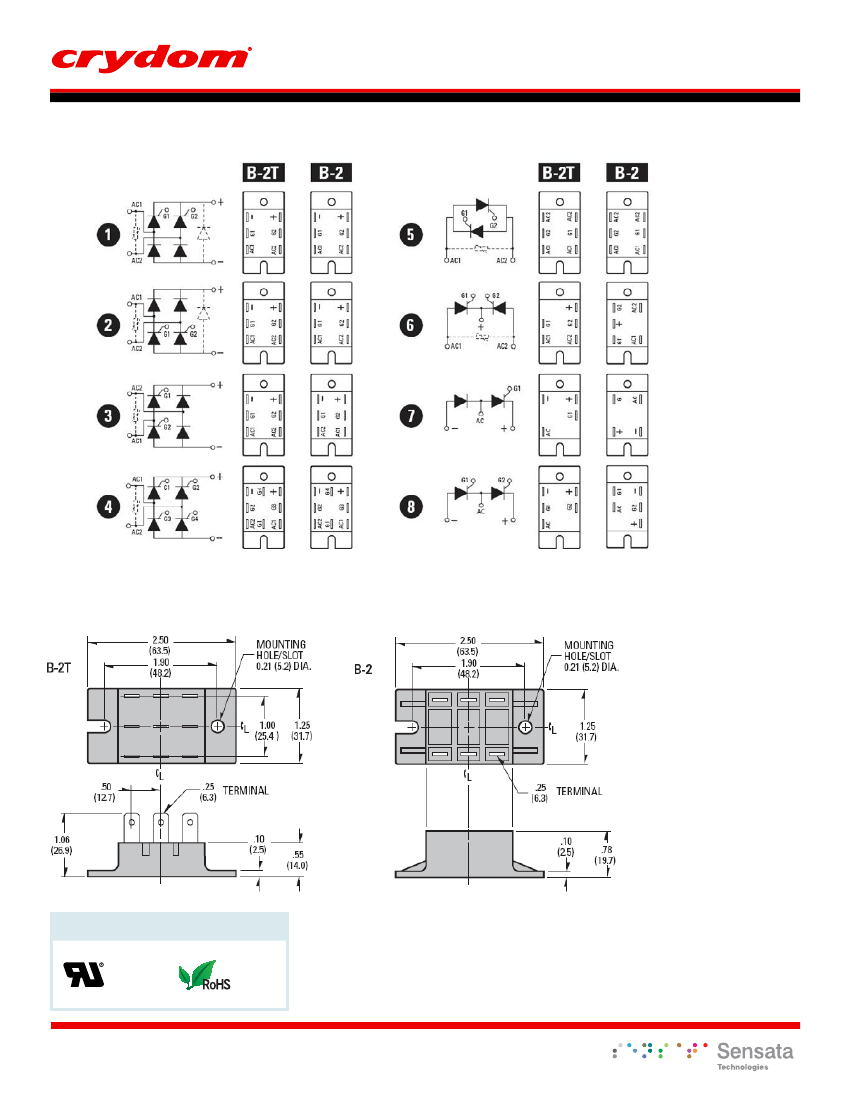

Eight Circuits to Choose from

•

For AC or DC Variable Voltage Output Up to 15KW

•

UL Recognized E72445

Power Modules

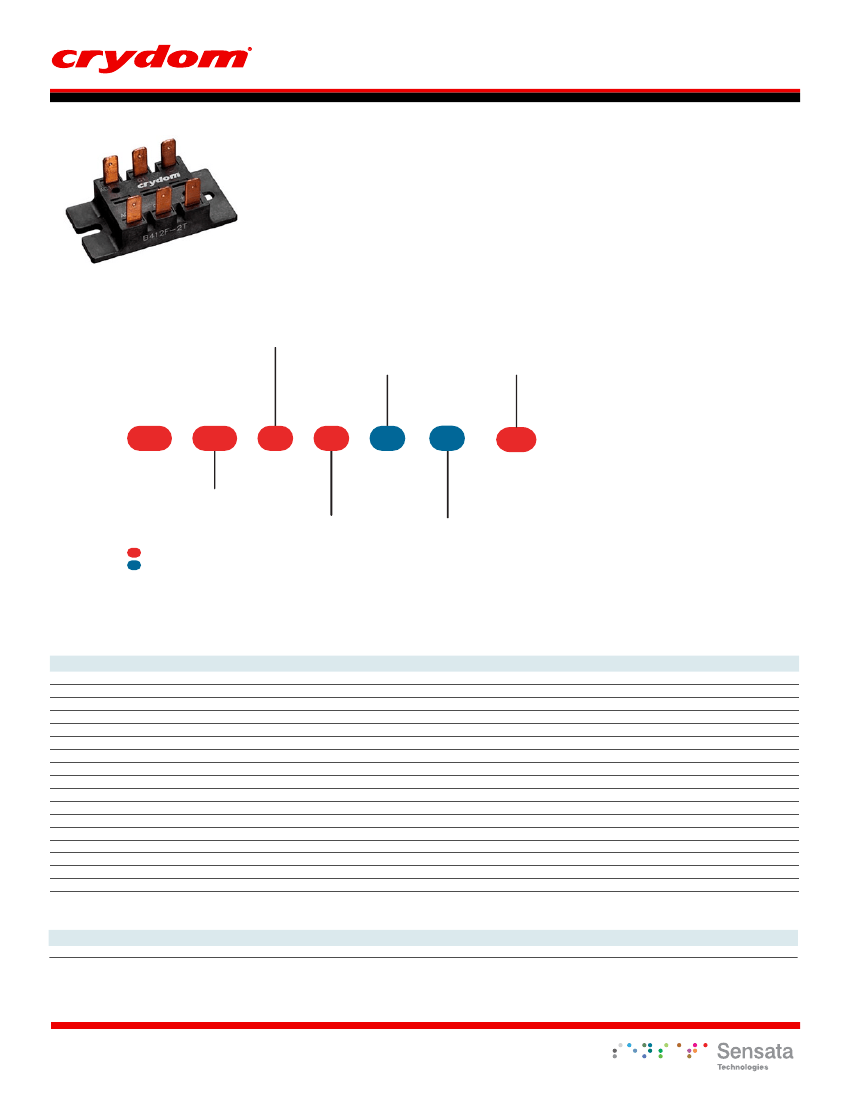

AVAILABLE OPTIONS

Circuit Type

1 2 3 4

5 6 7 8

(see schematic

diagrams)

Free Wheeling Diode

Blank:

Not Included

Included

(For circuits 1 & 2 only)

Case Style

-2T:

Standard

-2:

With Isolation Barriers

Series

Current

25 Amps

42.5 Amps

AC Line Voltage

120 VAC

240 VAC

280 VAC

480 VAC

-2T

External Suppressor

Blank:

Not included

SE:

Included

(-2T only, Circuits 1-6 only)

Required for valid part number

For options only and not required for valid part number

Note: Not all combinations available

ELECTRICAL SPECIFICATIONS

Symbol

Maximum DC Output Current (Tc = 85°C)

Maximum Voltage Drop @ Amps Peak

Operating Junction Temperature Range

Critical Rate of Rise of On-State Current @ TJ=125°C

Critical Rate of Rise of Off-State Voltage [V/ s]

AC Line Input Voltage (Repetitive Peak Reverse Voltage)

Maximum Non-Repetitive Surge Current (1/2 Cycle, 60 Hz)

Maximum I²T for Fusing (t=8.3ms) [A²sec]

Minimum Required Gate Current to Trigger @ 25°C

Minimum Required Gate Voltage to Trigger @ 25°C

Average Gate Power

Maximum Peak Reverse Gate Voltage

Maximum Thermal Resistance, Junction to Ceramic Base per Chip

Isolation Voltage

di/dt

dv/dt

RMS

TSM

G(AV)

ISOL

25A

1.65V @ 25A

-40 - 125°C

100A/ s

500V/ s

120 (400V

RMS

)

240 (400V

RMS

)

280 (400V

RMS

)

480 (400V

RMS

)

250A

260

60mA

2.5V

0.5W

5.0V

0.9°C/W

2500 Vrms

42.5A

1.65V @ 42.5A

-40 - 125°C

100A/ s

500V/ s

100 (400V

RMS

)

240 (400V

RMS

)

280 (400V

RMS

)

480 (400V

RMS

)

600A

1500

80mA

3.0V

0.5W

5.0V

0.7°C/W

2500 Vrms

GENERAL SPECIFICATIONS

Description

Weight (typical)

Parameters

1.5 oz (42.5g)

Do not forget to visit us at:

www.crydom.com
