2P4M-BY-AZ

Description
Silicon Controlled Rectifier, 4A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, PLASTIC PACKAGE-3
CategoryAnalog mixed-signal IC    Trigger device
File Size396KB,6 Pages
ManufacturerNEC Electronics
Download Datasheet Parametric View All

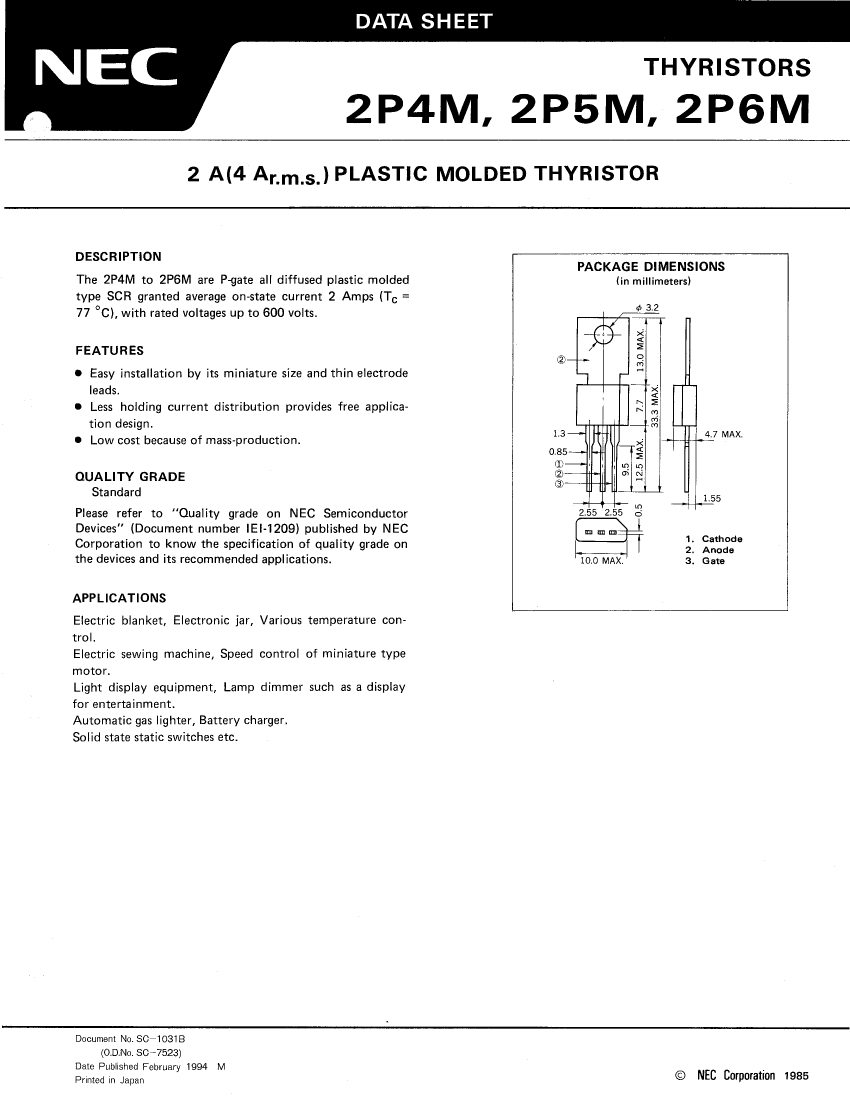

2P4M-BY-AZ Overview

Silicon Controlled Rectifier, 4A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, PLASTIC PACKAGE-3

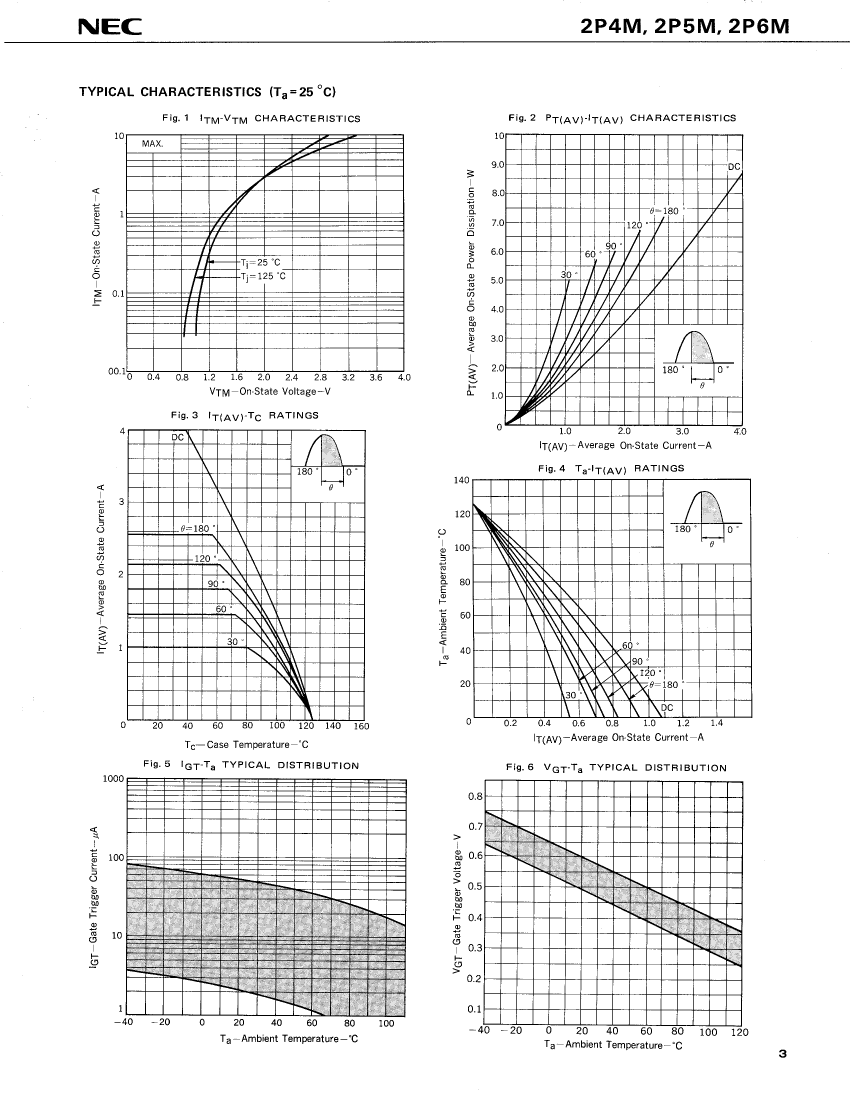

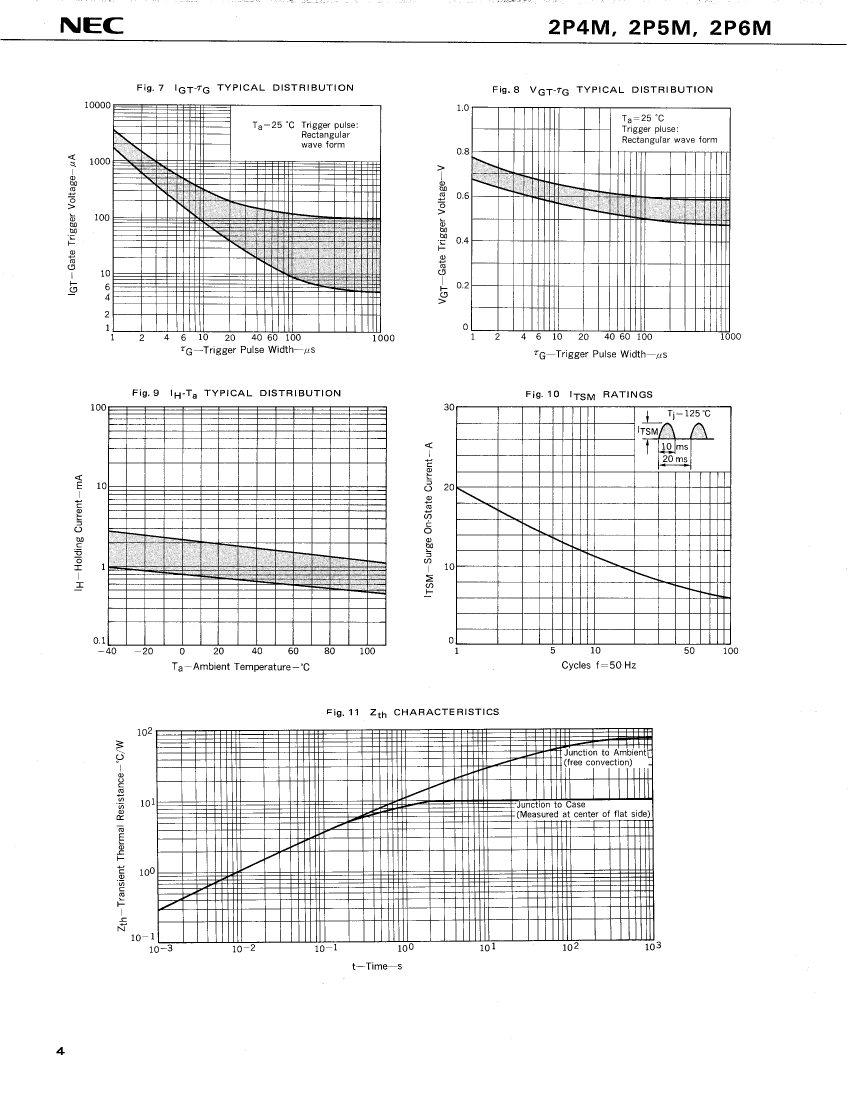

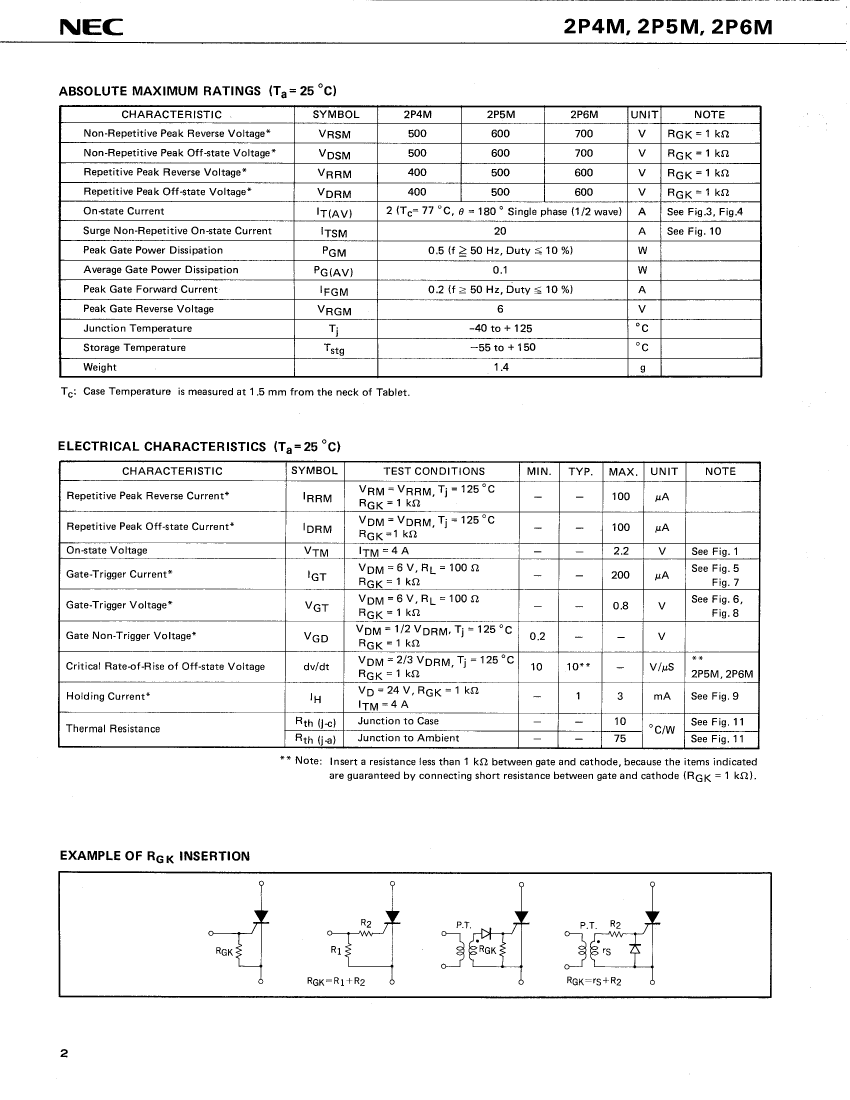

2P4M-BY-AZ Parametric

Parameter NameAttribute value
MakerNEC Electronics

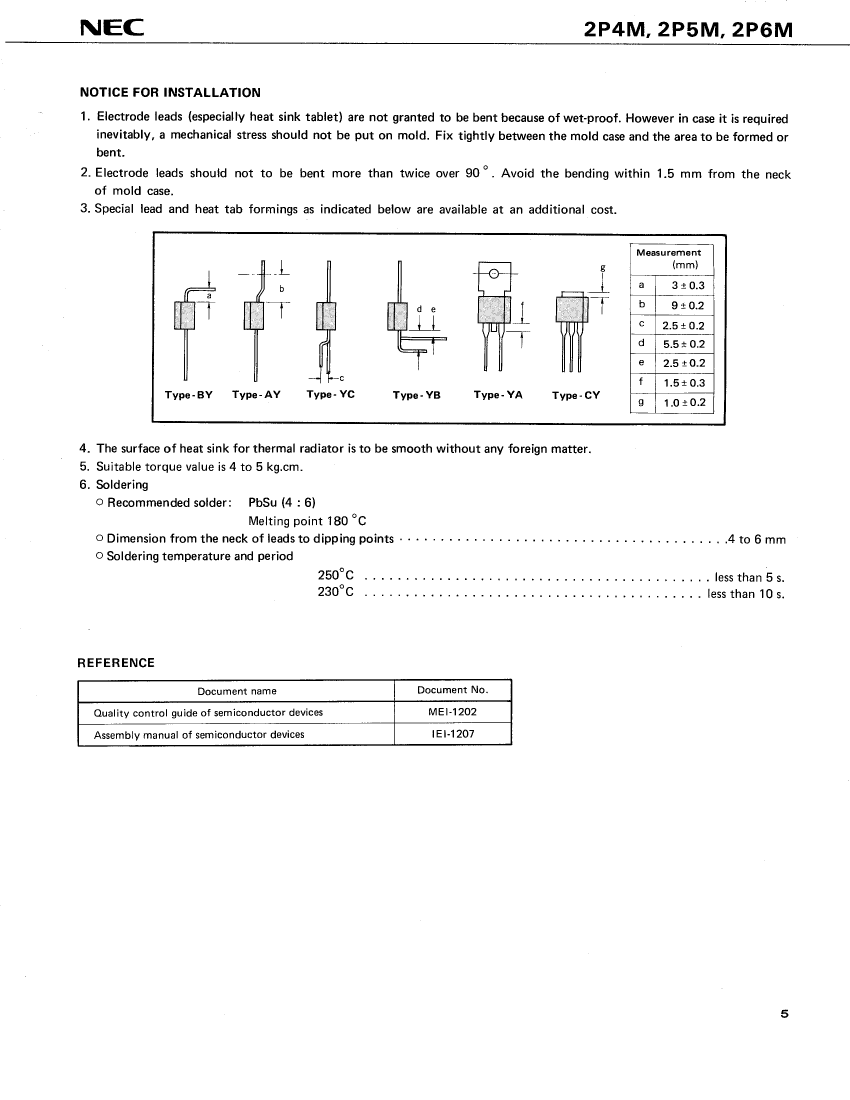

package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Reach Compliance Codeunknown
Shell connectionANODE
ConfigurationSINGLE
Maximum DC gate trigger current0.2 mA
JESD-30 codeR-PSFM-T3
Number of components1
Number of terminals3
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum rms on-state current4 A
Off-state repetitive peak voltage400 V
Repeated peak reverse voltage400 V
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger device typeSCR
Base Number Matches1
