Plastic Package Industrial Grade Ultra Miniature Pure Silicon
TM
Clockoscillators, Layout Compatible To 1.6 X 1.2 Mm Standard Oscillator
Moisture Sensitivity Level – MSL 1
DISCONTINUED: Last Time Buy Date: December 20, 2013
FEATURES:
• Ultra Miniature Pure SiliconTM Clock Oscillator, Layout Compatible
to 1.6 x 1.2 mm Footprint
• High Performance MEMS Technology by Discera
• Low Power Consumption for high speed communication
• Exceptional Stability Over Temp. at -40 to +105°C, ±10ppm
• Available in 30kG Shock Resistance Configuration upon request
• MIL-STD-883 shock and vibration compliant
• Ball Grid Array Packaging
• Low jitter (Period jitter RMS and Phase jitter RMS)
ASCSM
Pb
RoHS/RoHS II
1.8 x 1.25 x 0.68mm
Layout Compatible to 1.6 x 1.2 mm
Standard Oscillator
| | | | | | | | | | | | |
| |
APPLICATIONS:
• Imaging, Video, and Audio Modules
• Portable Consumer Electronics and Media Devices
• Tablets and Mobile Internet Devices
• Low Profile Embedded Designs
• Pico and Femto Networking
STANDARD SPECIFICATIONS:
Common Key Electrical Specifications
Parameters
Frequency Range:
Operating Temperature:
Storage Temperature:
Overall Frequency Stability:
Supply Voltage (Vdd):
Output Load:
Symmetry:
Startup Time:
Disable Time:
Disable Stand-by Current:
Tri-state Function (Stand-by) :
Aging:
Minimum
1.0
0
-55
-50
10
45
Typical
Maximum
150
+70
+150
+50
15
Units
MHz
°C
°C
ppm
V
pF
kΩ
%
ms
ns
uA
V
ppm
First year
Notes
See options
See options
+1.7 ~ +3.6
55
1.0
1.3
20
100
15
"1" (VIH≥0.75*Vdd) or Open: Oscillation
"0" (VIL<0.25*Vdd) : Hi Z
-5.0
+5.0
@1/2Vdd
Key Electrical Specifications
Parameters
Supply Current
(no load):
Output Voltage:
Rise Time:
Fall Time:
Period Jitter RMS
12 MHz
Minimum
Typical
6.0
Maximum
6.5
0.2*V
dd
3.0
3.0
Units
mA
V
V
ns
ns
ps
V
OH
V
OL
Tr
Tf
Jrms
0.8*V
dd
1.8
1.0
7.0
Notes
CL=0p ; V=1.8V
RL=∞; T=25°C
(Standard CL: 15pF)
CL=15pF
CL=15pF;
T=25°C
20%/80%*VDD
F=12MHz CL=15pF
Absolute Maximum Ratings
Item
Input Voltage
Junction Temp.
Storage Temp.
Soldering Temp.
ESD
HBM
MM
CDM
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE R TIFIED
Minimum
-0.3
-55
Maximum
V
DD
+0.3
+150
+150
+260
4,000
200
1,500
Unit
V
°C
°C
°C
V
Condition
40sec max
Revised: 04.11.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
Plastic Package Industrial Grade Ultra Miniature Pure Silicon
TM
Clockoscillators, Layout Compatible To 1.6 X 1.2 Mm Standard Oscillator
ASCSM
DISCONTINUED: Last Time Buy Date: December 20, 2013
Pb
RoHS/RoHS II
1.8 x 1.25 x 0.68mm
Layout Compatible to 1.6 x 1.2 mm
Standard Oscillator
| | | | | | | | | | | | |
| |

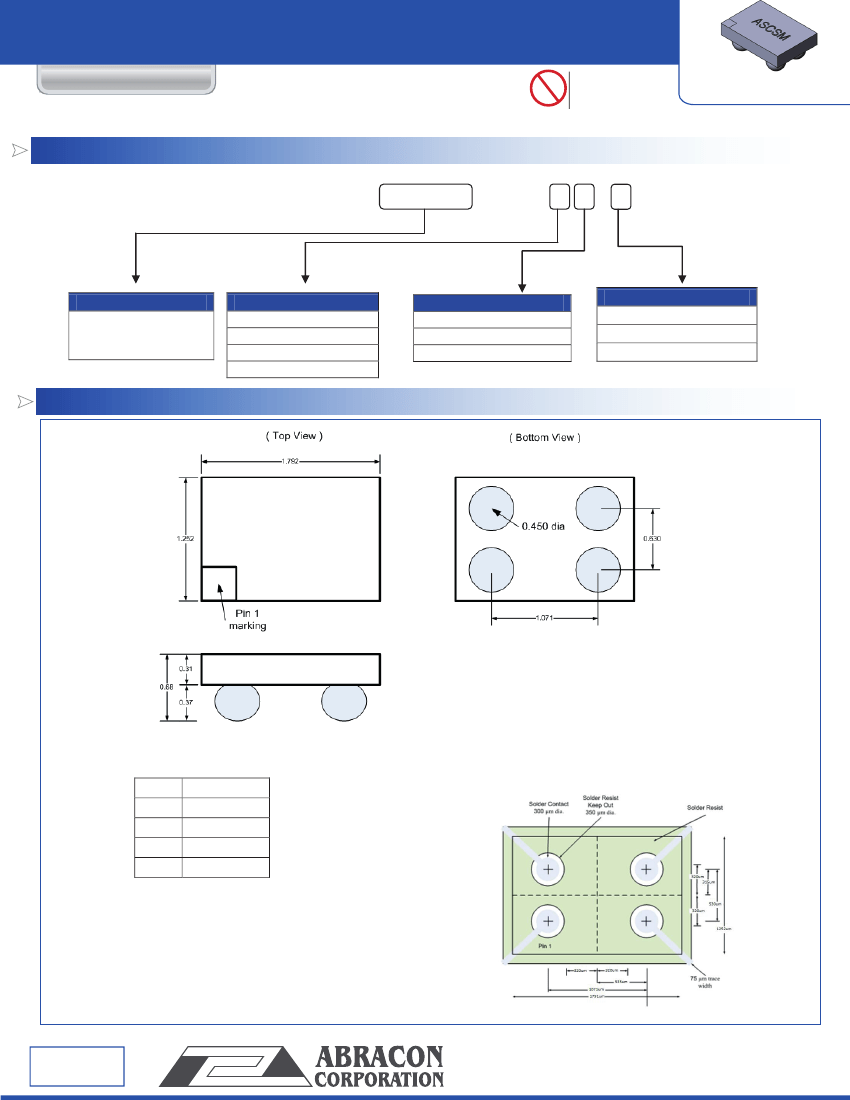

PART IDENTIFICATION:
ASCSM -
MHz -
-
Frequency in MHz
e.g. 14.3181 MHz
(Maximum 4 digits
after decimal)
Operating Temp.
Blank: 0°C ~ +70°C
E: -20°C ~ +70°C
L: -40°C ~ +85°C
X: -40°C ~ +105°C
Overall Freq. Stability
C:
±50ppm
(STD)
Y:
±10ppm
R:
±25
ppm
Packaging
Blank: Bulk
T: 2,500pcs/reel
T5: 5,000pcs / reel
OUTLINE DRAWING:
Pin 4
Pin 3
Pin 2
Dimensions: mm
Component height after reflow is 0.53-0.60 mm. Layout Compatible to 1.6 x 1.2 mm Standard Oscillator
Pin
1
2
3
4
Function
Standby
GND
Output
Vdd
Recommended Land Pattern
Note: Recommend using an approximately
0.01uF bypass capacitor between PIN 2 and 4.
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE R TIFIED
Revised: 04.11.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
Plastic Package Industrial Grade Ultra Miniature Pure Silicon
TM
Clockoscillators, Layout Compatible To 1.6 X 1.2 Mm Standard Oscillator
ASCSM
DISCONTINUED: Last Time Buy Date: December 20, 2013
Pb
RoHS/RoHS II
1.8 x 1.25 x 0.68mm
Layout Compatible to 1.6 x 1.2 mm
Standard Oscillator
| | | | | | | | | | | | |
| |

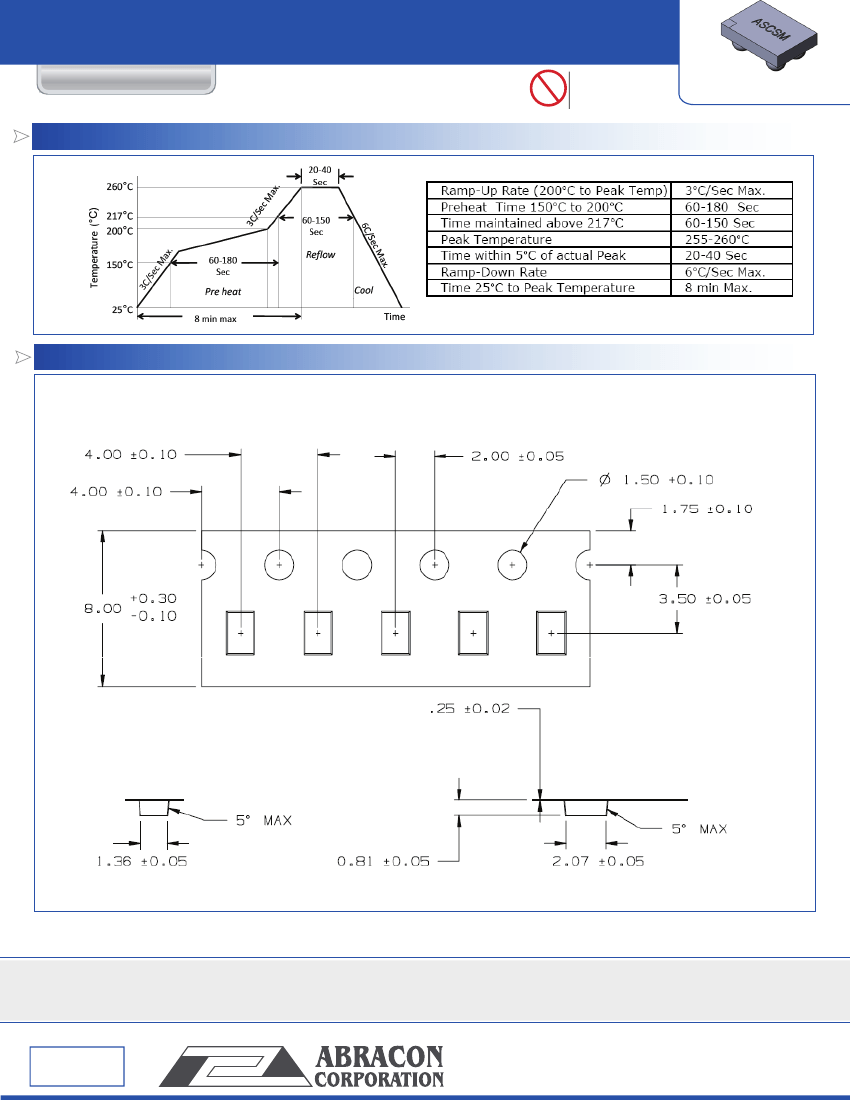

REFLOW PROFILE:
TAPE & REEL:
T= 2,500pcs/reel
T5= 5,000pcs/reel
Reel Size: Ø13 inches
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and
authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE R TIFIED
Revised: 04.11.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
