SV03AC683MAA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> SV03AC683MAA

SV03AC683MAA: DescriptionMultilayer Ceramic Capacitors MLCC - Leaded SV03 0.068uF 1000volts X7R 20%; CategoryPassive components; File Size109KB，4 Pages; ManufacturerAVX

Download Datasheet Parametric View All

SV03AC683MAA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SV03AC683MAA	-	-	View	Buy Now

SV03AC683MAA Overview

Multilayer Ceramic Capacitors MLCC - Leaded SV03 0.068uF 1000volts X7R 20%

SV03AC683MAA Parametric

Parameter Name	Attribute value
Product Category	Multilayer Ceramic Capacitors MLCC - Leaded
Manufacturer	AVX
RoHS	No
Termination Style	Radial
Capacitance	0.068 uF
Voltage Rating DC	1 kVDC
Dielectric	X7R
Tolerance	20 %
Lead Spacing	6.99 mm
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Product	General Type MLCCs
Length	9.4 mm
Width	5.08 mm
Height	7.62 mm
Packaging	Bulk
Capacitance - nF	68 nF
Capacitance - pF	68000 pF
Dissipation Factor DF	2.5
Lead Diameter	0.64 mm
Lead Style	Straight
Operating Temperature Range	- 55 C to + 125 C
Factory Pack Quantity	265
Temperature Coefficient / Code	X7R
Type	High Voltage MLC Radials
Voltage Rating	1 kV

Preview

Download Datasheet

View All

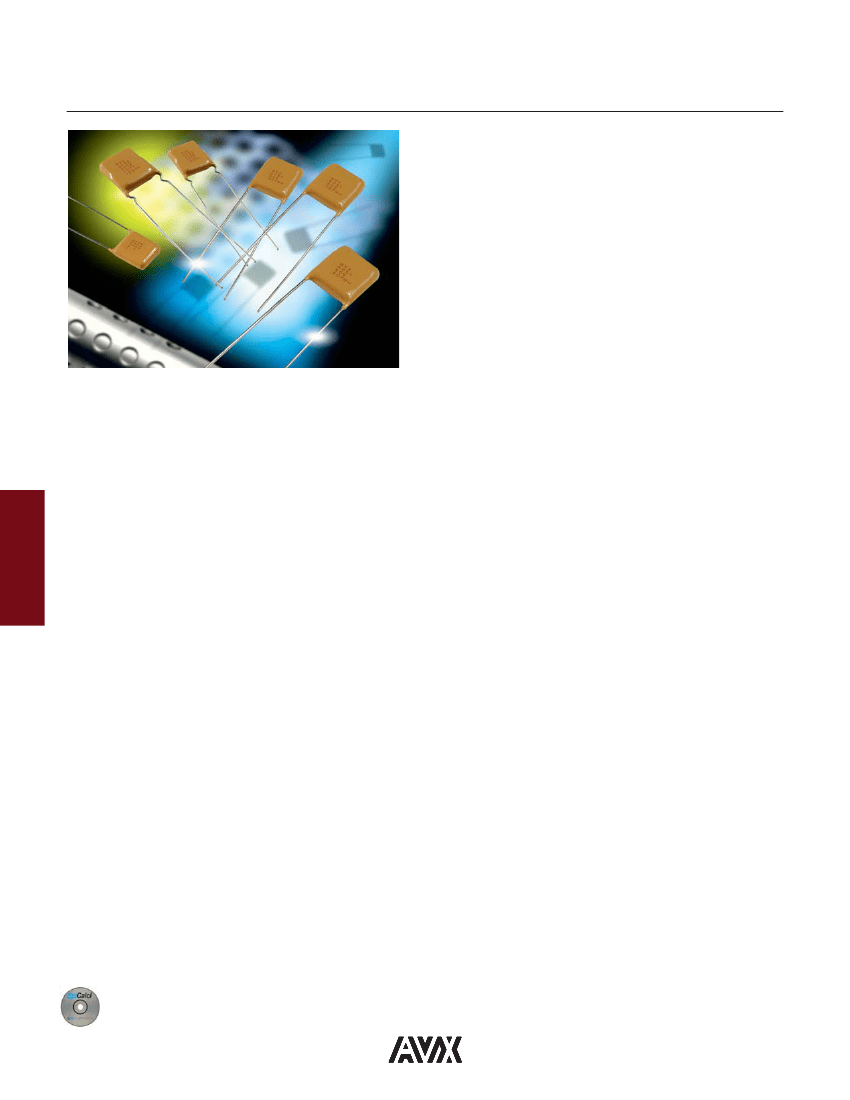

High Voltage MLC Radials (SV Style)

Application Information on High Voltage MLC Capacitors

High value, low leakage and small size are difficult parameters

to obtain in capacitors for high voltage systems. AVX special

high voltage MLC radial leaded capacitors meet these

performance characteristics. The added advantage of these

capacitors lies in special internal design minimizing the electric

field stresses within the MLC. These special design criteria

result in significant reduction of partial discharge activity within

the dielectric and having, therefore, a major impact on long-

term reliability of the product. The SV high voltage radial

capacitors are conformally coated with high insulation

resistance, high dielectric strength epoxy eliminating the

possibility of arc flashover.

The SV high voltage radial MLC designs exhibit low ESRs at

high frequency. The same criteria governing the high voltage

design carries the added benefits of extremely low ESR in

relatively low capacitance and small packages. These

capacitors are designed and are ideally suited for applications

such as snubbers in high frequency power converters,

resonators in SMPS, and high voltage coupling/DC blocking.

C0G Dielectric

General Specifications

Capacitance Range

10 pF to 0.15 μF

(+25°C, 1.0 ±0.2 Vrms at 1kHz,

for ≤100 pF use 1 MHz)

Capacitance Tolerances

±5%; ±10%; ±20%

Operating Temperature Range

-55°C to +125°C

Temperature Characteristic

0 ± 30 ppm/°C

Voltage Ratings

600 VDC thru 5000 VDC (+125°C)

Dissipation Factor

0.15% max.

(+25°C, 1.0 ±0.2 Vrms at 1kHz,

for ≤100 pF use 1 MHz)

Insulation Resistance

(+25°C, at 500V)

100K MΩ min. or 1000 MΩ-μF min.,

whichever is less

Insulation Resistance

(+125°C, at 500V)

10K MΩ min., or 100 MΩ-μF min.,

whichever is less

Dielectric Strength

120% rated voltage, 5 seconds

Life Test

100% rated and +125°C

N1500

General Specifications

Capacitance Range

100 pF to 0.47 μF

(+25°C, 1.0 ±0.2 Vrms (open circuit

voltage) at 1kHz)

Capacitance Tolerances

±5%; ±10%; 20%

Operating Temperature Range

-55°C to +125°C

Temperature Characteristic

-1500 ±250 ppm/ºC

Voltage Ratings

600 VDC thru 5000 VDC (+125°C)

Dissipation Factor

0.15% max.

(+25°C, 1.0 ±0.2 Vrms (open circuit

voltage) at 1kHz)

Insulation Resistance

(+25°C, at 500V)

100K MΩ min., or 1000 MΩ-μF min.,

whichever is less

Insulation Resistance

(+125°C, at 500V)

10K MΩ min., or 100 MΩ-μF min.,

whichever is less

Dielectric Strength

120% rated voltage, 5 seconds

Life Test

100% rated and +125°C

X7R Dielectric

General Specifications

Capacitance Range

100 pF to 2.2 μF

(+25°C, 1.0 ±0.2 Vrms at 1kHz)

Capacitance Tolerances

±10%; ±20%; +80%, -20%

Operating Temperature Range

-55°C to +125°C

Temperature Characteristic

±15% (0 VDC)

Voltage Ratings

600 VDC thru 5000 VDC (+125°C)

Dissipation Factor

2.5% max.

(+25°C, 1.0 ±0.2 Vrms at 1kHz)

Insulation Resistance

(+25°C, at 500V)

100K MΩ min., or 1000 MΩ-μF min.,

whichever is less

Insulation Resistance

(+125°C, at 500V)

10K MΩ min., or 100 MΩ-μF min.,

whichever is less

Dielectric Strength

120% rated voltage, 5 seconds

Life Test

100% rated and +125°C

Performance of SMPS capacitors can be simulated by downloading SpiCalci software program -

http://www.avx.com/SpiApps/default.asp#spicalci

Custom values, ratings and configurations are also available.

■
