5315TC-495XGLD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 5315TC-495XGLD

5315TC-495XGLD: DescriptionFixed Inductors 5315TC AEC-Q200 4.9mH 2% 150Ohms; CategoryPassive components inductor; File Size129KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

5315TC-495XGLD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5315TC-495XGLD	-	-	View	Buy Now

5315TC-495XGLD Overview

Fixed Inductors 5315TC AEC-Q200 4.9mH 2% 150Ohms

5315TC-495XGLD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	COILCRAFT
package instruction	5415
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	5415
structure	Rugged
DC Resistance	150 Ω
Nominal inductance(L)	4900 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Manufacturer's serial number	5315TC
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	2.26 mm
Package length	13.61 mm
Package form	SMT
Package width	3.81 mm
method of packing	TR, 13 Inch
Minimum quality factor (at nominal inductance)	15
Guideline	AEC-Q200
self resonant frequency	1.55 MHz
series	5315TC
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.125 MHz
Tolerance	2%
Base Number Matches	1

Preview

Download Datasheet

View All

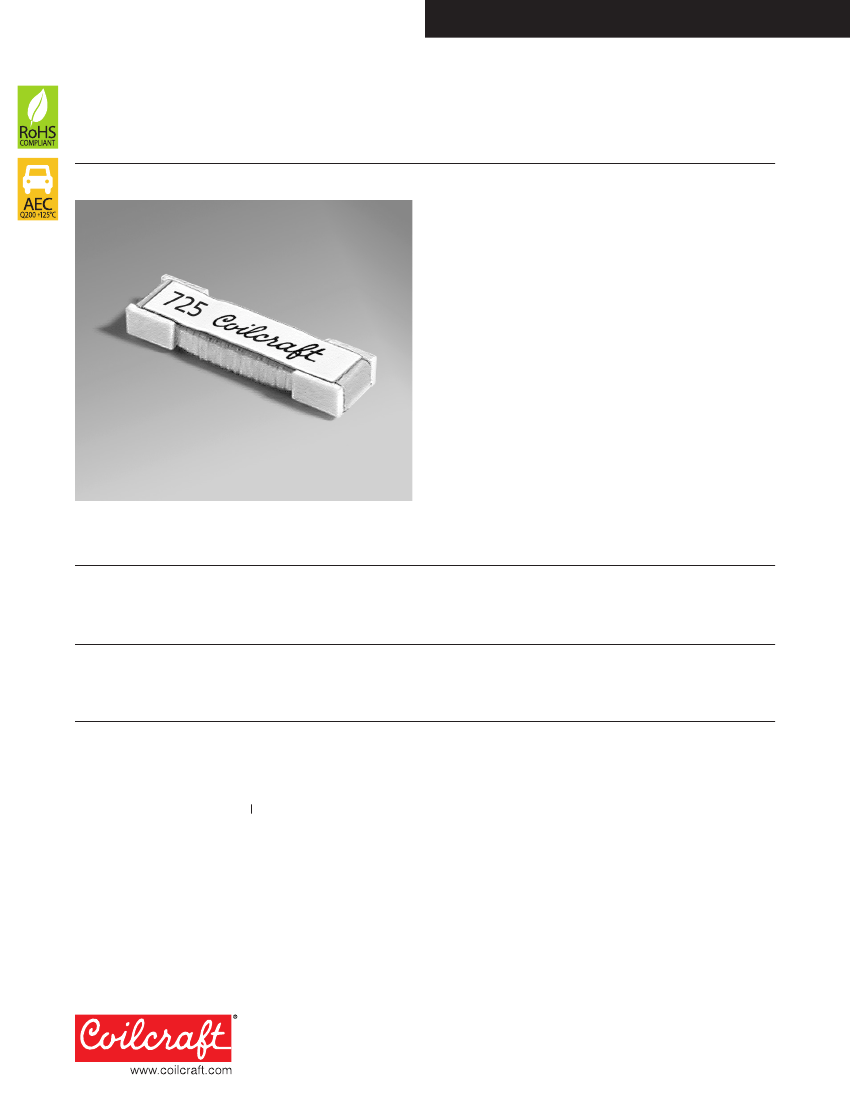

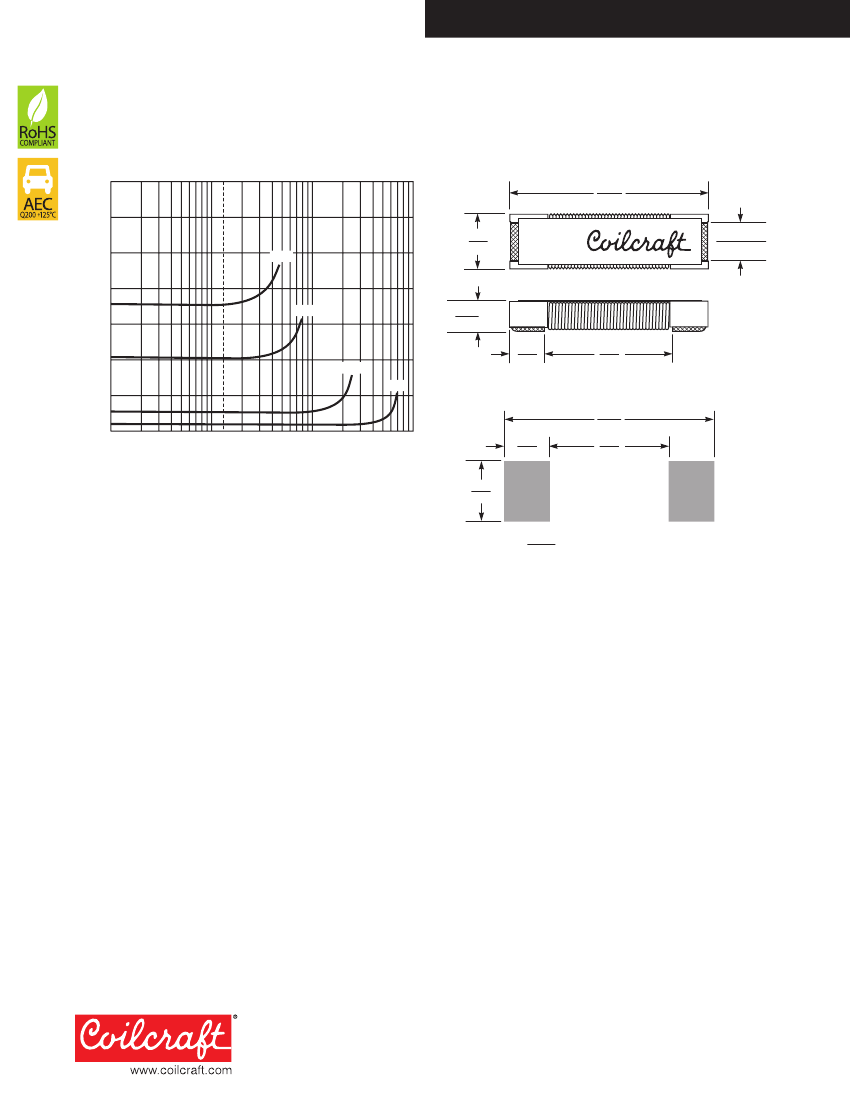

Document 311 -1

RFID Transponder Coils – 5315TC

The 5315TC is Coilcraft’s most rugged and lowest cost

antenna coil designed for RFID applications at 125 kHz.

The wrap-around terminals have large mounting surfaces

to ensure excellent board adhesion. The coil is wound on

a plastic base, providing great durability and allowing this

part to withstand harsh mechanical shock.

Their robust construction and 125°C rating make these

parts suitable for use in the most severe environments.

They were developed for automotive applications, includ-

ing tire pressure monitoring systems.

In addition to the standard models shown, Coilcraft can

design transponder coils to operate at other frequencies.

Coilcraft

Designer’s Kit C369

contains four samples

each of the standard parts shown. To order, contact

Coilcraft or visit

http://order.coilcraft.com.

Part number

5315TC-374XGL_

5315TC-404XGL_

5315TC-704XGL_

5315TC-904XGL_

5315TC-105XGL_

5315TC-115XGL_

5315TC-205XGL_

5315TC-245XGL_

5315TC-335XGL_

5315TC-415XGL_

5315TC-495XGL_

5315TC-685XGL_

5315TC-715XGL_

5315TC-725XGL_

Inductance

at 125 kHz

±2% (mH)

0.37

0.40

0.70

0.90

1.00

1.08

1.97

2.38

3.30

4.15

4.90

6.80

7.10

7.20

Q min

Read

distance

(inches/cm)

16 / 40.6

17 / 43.2

21 / 53.3

23 / 58.4

25 / 63.5

26 / 66.0

27 / 68.6

29 / 73.7

28 / 71.1

30 / 76.2

Sensitivity

(mV/µT)

8.32

8.67

11.43

13.35

14.07

14.65

21.28

23.97

29.70

34.95

40.00

53.87

55.41

56.74

Matching

capacitor

(pF)

4380

4050

2320

1800

1600

1500

820

680

490

390

330

240

220

DCR max

(Ohms)

103

150

180

176

165

SRF typ

(kHz)

7100

7300

4500

3800

2500

2300

2400

1800

1260

1550

1350

890

880

1. When ordering, please specify

packaging

code:

5315TC-715XGLD

Packaging: D

= 13″ machine-ready reel. EIA-481 embossed plastic

tape (3000 parts per full reel).

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge), use

code letter D instead.

2. Inductance and Q measured using Agilent/HP 4192A impedance ana-

lyzer at 125 kHz. For recommended test procedures, contact Coilcraft.

3. Read distance measured using the KEELOQ

Transponder Evaluation

Kit part number DM303005 from Microchip. Distance was recorded as

the voltage across the resonant circuit dropped below 10 mV.

4. Sensitivity measured in accordance with Coilcraft application note “Mea-

suring Sensitivity of Transponder Coils.”

5. Matching capacitor value required for parallel resonant circuit operating

at 125 kHz.

6. DCR measured on micro-ohmmeter.

7. SRF measured using Agilent/HP 8753D network analyzer.

8. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 311-1

Revised 02/19/09

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
