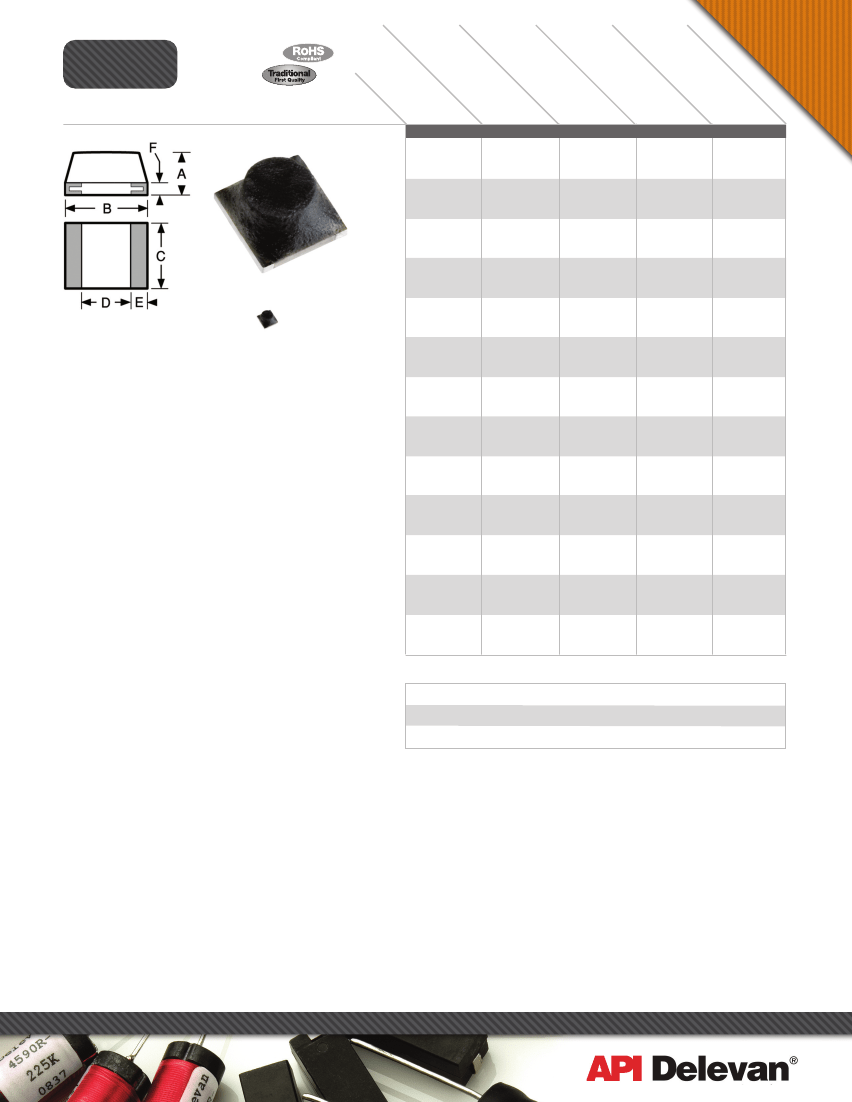

Power Micro i® Chip Inductors
R*
Actual Size
Physical Parameters
Inches
A
0.100 Max.
B
0.145 to 0.155
C
0.115 to 0.125
D
0.070 Min.
E
0.020 to 0.030
F
0.020 Max. (Typ.)
Millimeters
2.54 Max.
3.68 to 3.94
2.92 to 3.18
1.78 Min.
0.508 to 0.762
0.51 Max.
Operating Temperature Range
-55°C to +125°C
Current Rating at 90°C Ambient
35°C Rise
Maximum Power Dissipation at 90°C
0.170 W
Termination
Standard-Tin/Lead. For RoHS, order
P160R-XXXKS. Consult the factory for additional
finish options.
Inductance
Measured at 0.100VAC with no DC Current
Incremental Current
The current at which the
inductance will be decreased by a maximum of 5% from its
initial 0 ADC value
Packaging
Bulk only
-331KS
-391KS
-471KS
-561KS
-681KS
-821KS
-102KS
-122KS
-152KS
-182KS
-222KS
-272KS
-332KS
-392KS
-472KS
-562KS
-682KS
-822KS
-103KS
-123KS
-153KS
-183KS
-223KS
-273KS
-333KS
-393KS
-473KS
-563KS
-683KS
-823KS
-104KS
-124KS
-154KS
-184KS
-224KS
-274KS
-334KS
SERIES P160 FERRITE CORE
0.330
0.033
1929
0.390
0.035
1873
0.470
0.038
1797
0.560
0.041
1730
0.680
0.044
1670
0.820
0.050
1567
1.00
0.056
1480
1.20
0.078
1254
1.50
0.086
1195
1.80
0.093
1149
2.20
0.11
1056
2.70
0.12
1011
3.30
0.16
876
3.90
0.17
850
4.70
0.24
715
5.60
0.26
687
6.80
0.28
662
8.20
0.40
554
10.0
0.57
464
12.0
0.63
441
15.0
0.70
419
18.0
1.0
350
22.0
1.1
334
27.0
1.2
320
33.0
1.6
277
39.0
1.8
261
47.0
1.9
254
56.0
2.7
213
68.0
2.9
206
82.0
3.2
196
100
4.6
163
120
5.0
157
150
6.8
134
180
7.5
128
220
9.8
112
270
10.8
107
330
12.0
101
2636
2417
2231
2071
1933
1706
1526
1381
1261
1160
1036
935
829
784
707
644
592
537
483
439
397
358
326
293
266
244
223
204
185
169
153
139
124
114
103
93
84
Optional Tolerances: J = 5% H = 3% G = 2% F = 1%
*Complete part # must include series # PLUS the dash #
For surface finish information, refer to www.delevanfinishes.com
270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com
1/2009
