Datasheet> All Categories > Passive components> 36PR5KLF

Preview

36PR5KLF: DescriptionTrimmer Resistors - Through Hole 6mm 5K Open Type Trimmer; CategoryPassive components; File Size69KB，3 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric Compare View All

36PR5KLF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	36PR5KLF	-	-	View	Buy Now

36PR5KLF Overview

Trimmer Resistors - Through Hole 6mm 5K Open Type Trimmer

36PR5KLF Parametric

Parameter Name	Attribute value
Product Category	Trimmer Resistors - Through Hole
Manufacturer	TT Electronics plc
RoHS	Details
Termination Style	Radial
Product	Single Turn
Number of Turns	1
Resistance	5 kOhms
Adjustment	Top Crossed
Power Rating	0.3 W
Voltage Rating	100 V
Tolerance	20 %
Temperature Coefficient	250 PPM / C
Operating Temperature Range	- 30 C to + 100 C
Packaging	Bulk
Element Type	Cermet
Height	6.2 mm
Length	6.8 mm
Maximum Operating Temperature	+ 100 C
Minimum Operating Temperature	- 30 C
Mounting	Through Hole
Factory Pack Quantity	1000
Taper	Linear
Type	Open Type Trimmer
Width	8.2 mm

Preview

Download Datasheet

View All

Model 36

6 MM SINGLE-TURN

Open Frame

Cermet Trimming

Potentiometer

RoHS Compliant

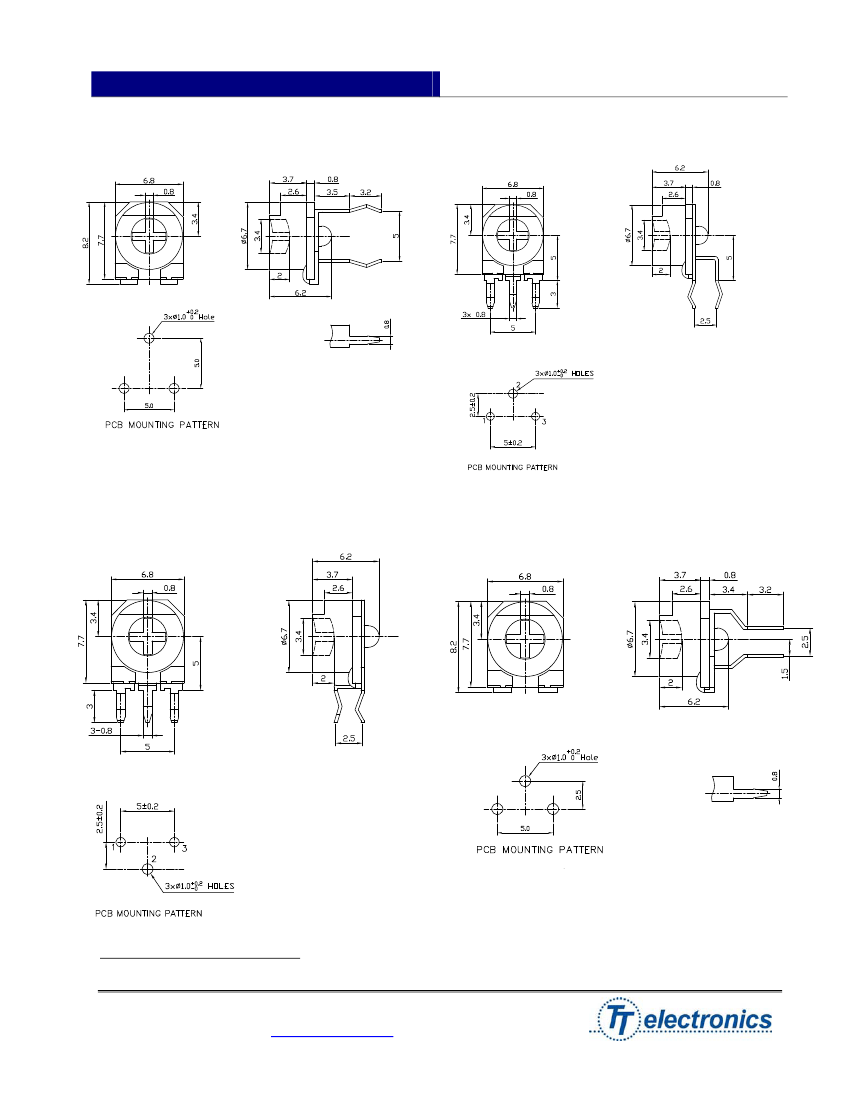

STYLES AVAILABLE

Top Adjust

Side Adjust

Top Adjust (2.5 mm pin spacing)

36F

36K

36W

36P

ELECTRICAL

1

Resistance Range

Standard Resistance Tolerance

Input Voltage, Maximum

Power rating, Watts

End Resistance, Maximum

Actual Electrical Travel

Mechanical Travel

Insulation Resistance, Minimum

Resolution

Contact Resistance Variation

Temperature Coefficient of Resistance

100 to 1,000,000 Ohms

±

20%

100 V

0.3 @ 70°C

<500 ohms: 10 Ohms Max; > 500 ohms: 2% Max.

215° ±5°

240° ±20°

100 Megohms

Essentially infinite

5% Max.

±250 ppm/°C

MECHANICAL

Torque, Maximum

Weight, Approx.

Wiper Position

2.1 in. oz.

0.01 oz.

Approx. 50%

1

Specifications subject to change without notice.

BI Technologies Corporation

4200 Bonita Place, Fullerton, CA 92835 USA

Phone: 714 447 2345

May 21, 2009

Website:

www.bitechnologies.com

page 1 of

3

BI technologies

36PR5KLF Related Products

	36PR5KLF	36PR50KLF	36KR100LF	36FR100KLF	36KR500KLF
Description	Trimmer Resistors - Through Hole 6mm 5K Open Type Trimmer	Trimmer Resistors - Through Hole 6mm 50K Open Type Trimmer	Trimmer Resistors - Through Hole 6mm 100 Open Type Trimmer	Trimmer Resistors - Through Hole 6mm 100K Open Type Trimmer	Trimmer Resistors - Through Hole 6mm 500K Open Type Trimmer
Product Category	Trimmer Resistors - Through Hole	Trimmer Resistors - Through Hole	Trimmer Resistors - Through Hole	Trimmer Resistors - Through Hole	Trimmer Resistors - Through Hole
Manufacturer	TT Electronics plc	TT Electronics plc	TT Electronics plc	TT Electronics plc	TT Electronics plc
RoHS	Details	Details	Details	Details	Details
Termination Style	Radial	Pin	Pin	Radial	Radial
Product	Single Turn	Single Turn	Single Turn	Single Turn	Single Turn
Resistance	5 kOhms	50 kOhms	100 Ohms	100 kOhms	500 kOhms
Adjustment	Top Crossed	Top Slot	Side Slot	Top Crossed	Side Crossed
Power Rating	0.3 W	330 mW	330 mW	0.3 W	0.3 W
Tolerance	20 %	20 %	20 %	20 %	20 %
Operating Temperature Range	- 30 C to + 100 C	- 30 C to + 100 C	- 30 C to + 100 C	- 30 C to + 100 C	- 30 C to + 100 C
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Element Type	Cermet	Cermet	Cermet	Cermet	Cermet
Height	6.2 mm	7.8 mm	7.8 mm	6.2 mm	7.7 mm
Length	6.8 mm	8.4 mm	8.4 mm	6.8 mm	6.8 mm
Maximum Operating Temperature	+ 100 C	+ 100 C	+ 100 C	+ 100 C	+ 100 C
Minimum Operating Temperature	- 30 C	- 30 C	- 30 C	- 30 C	- 30 C
Factory Pack Quantity	1000	1000	1000	500	1000
Type	Open Type Trimmer	Trimmer Resistors - Single Turn	Trimmer Resistors - Single Turn	Open Type Trimmer	Open Type Trimmer
Width	8.2 mm	6.8 mm	6.8 mm	8.2 mm	6.2 mm
Number of Turns	1	-	-	1	1
Voltage Rating	100 V	-	-	100 V	100 V
Temperature Coefficient	250 PPM / C	-	-	250 PPM / C	250 PPM / C
Mounting	Through Hole	-	-	Through Hole	Through Hole
Taper	Linear	-	-	Linear	Linear
